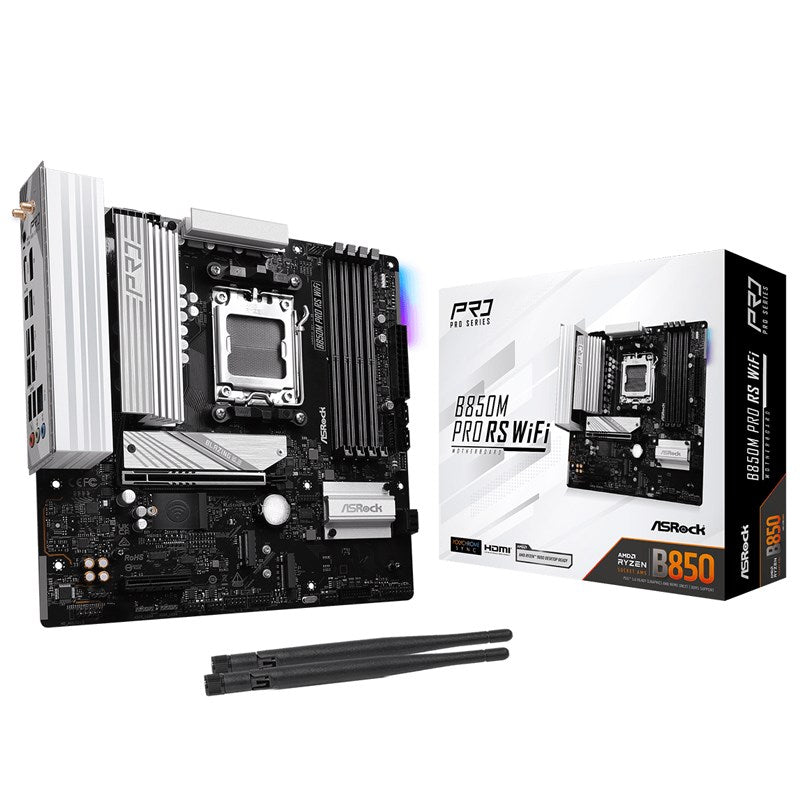

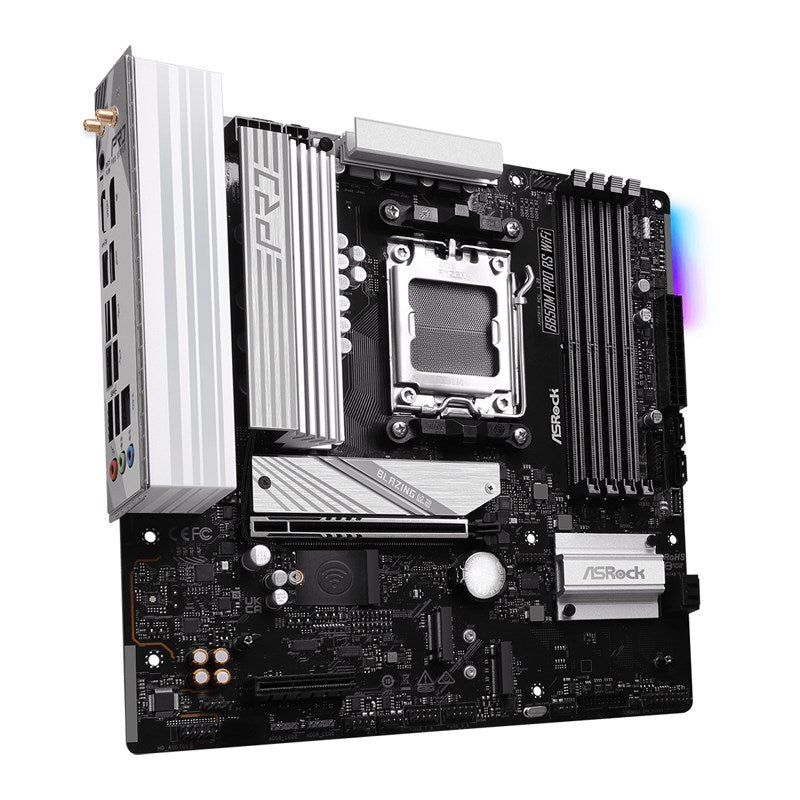

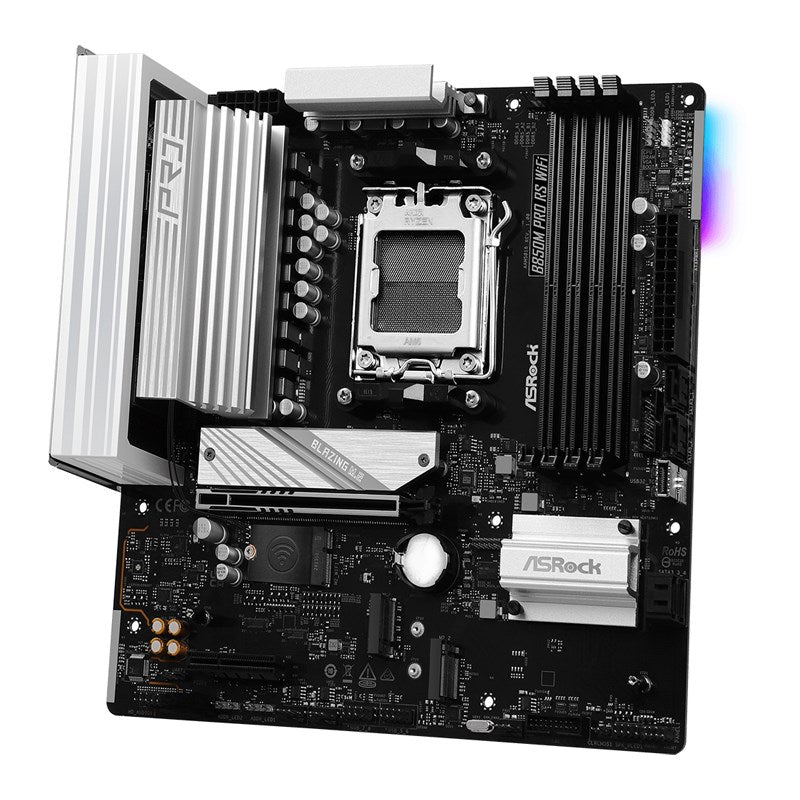

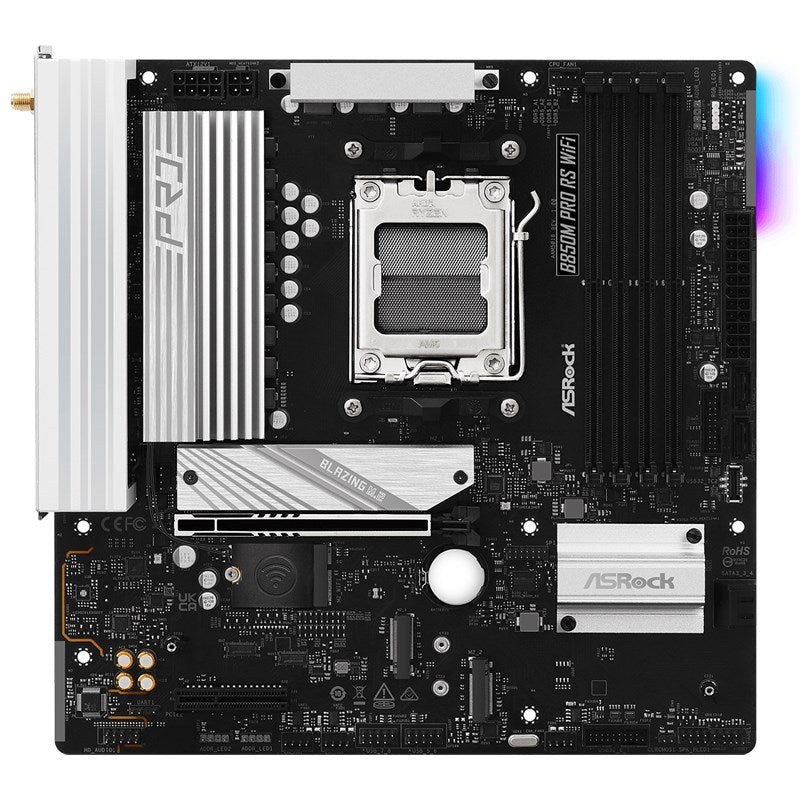

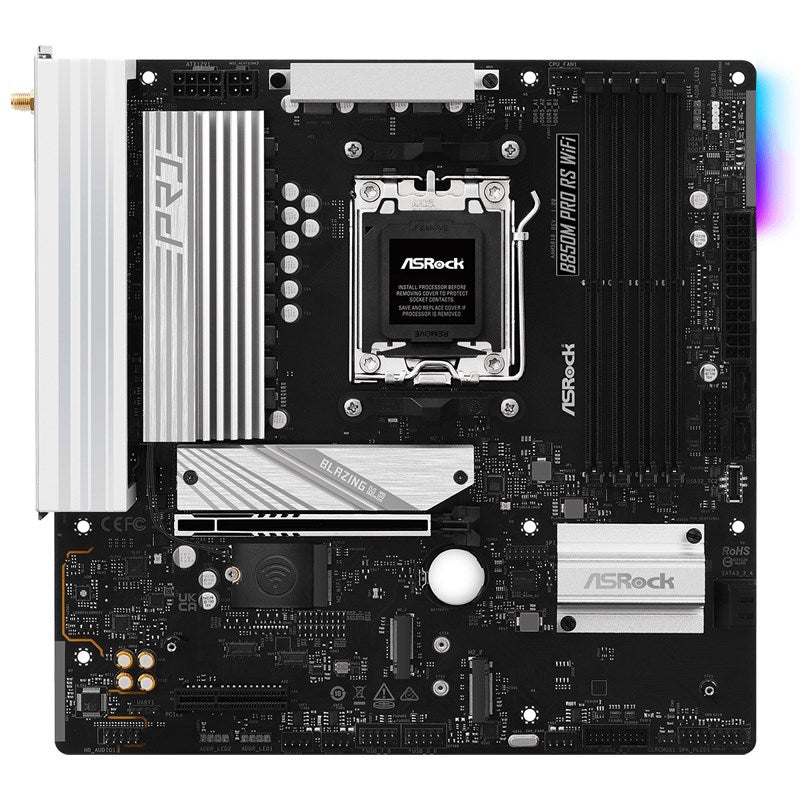

ASRock B850M PRO RS WIFI AMD AM5 Micro ATX Gaming Motherboard

ASRock

ASRock B850M PRO RS WIFI AMD AM5 Micro ATX Gaming Motherboard

Name: ASRock B850M PRO RS WIFI AMD AM5 Micro ATX Gaming Motherboard
Brand: ASRock
SKU: 90-MXBR70-A0UAYZ
Price: 65.9 KWD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: 90-MXBR70-A0UAYZ

Was :

65.900 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC

4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x4

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 4 SATA3

1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)

Realtek 2.5G LAN

802.11axe WiFi 6E +Bluetooth

Supports M.2 Bottom Heatsink, BIOS Flashback

B850M Pro RS WiFi

Specifications:

Unique Feature	Superb Productivity
	- PCIe Gen5 (Graphics, M.2)
	- Dual Channel DDR5
	Rock-Solid Durability
	- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
	- Pre-Installed I/O Shield
	Ultrafast Connectivity
	- 2.5G LAN, 802.11axe Wi-Fi 6E Module
	EZ Update
	- BIOS Flashback Button
	- ASRock Auto Driver Installer
	EZ Troubleshooter
	- ASRock Post Status Checker
CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
	*The availability of expansion slots may vary by CPU.
Chipset	- AMD B850
Memory	- Dual Channel DDR5 Memory Technology
	- 4 x DDR5 DIMM Slots
	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
	- Max. capacity of system memory: 256GB
	- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Dragon 2.5G LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
Wireless LAN	- 802.11axe Wi-Fi 6E Module
	- Supports IEEE 802.11a/b/g/n/ac/ax/axe
	- Supports Dual-Band 2x2 with extended 6GHz band* support
	- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
	- Supports Bluetooth 5.2
	- Supports MU-MIMO
	*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
	A 6GHz compatible router is required for 6E functionality.
Slots	CPU:
	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
	- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
	Chipset:
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
	*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
	If M2_3 is occupied, PCIE2 will be disabled.
	Supports NVMe SSD as boot disks
Storage	CPU:
	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	- 4 x SATA3 6.0 Gb/s Connectors
	*Supports NVMe SSD as boot disks
	M2_1 is the first priority for M.2 installation.
	M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
	If M2_3 is occupied, PCIE2 will be disabled.
	RAID
	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
	* Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU:
	- 1 x USB 3.2 Gen2 Type-C (Rear)
	- 1 x USB 3.2 Gen2 Type-A (Rear)
	Chipset:
	- 1 x USB 3.2 Gen1 Type-C (Front)
	- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
	- 8 x USB 2.0 (4 Rear, 4 Front)
	* All USB ports support ESD Protection
Connector	- 1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 1 x RGB LED Header*
	- 3 x Addressable LED Headers**
	- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	- 1 x Front Panel Type C USB 3.2 Gen1 Header
	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
	CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

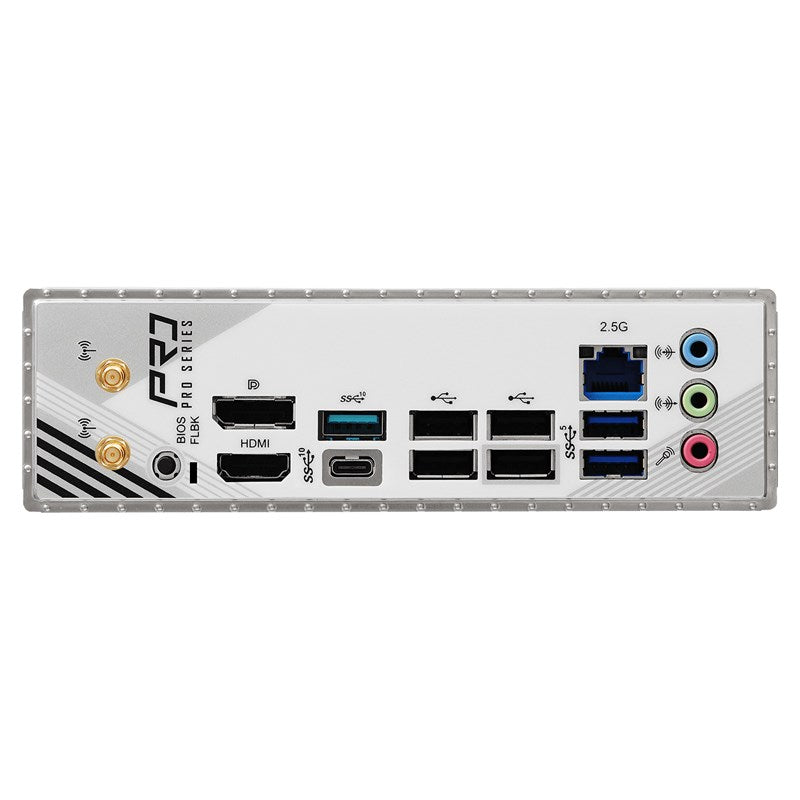

Rear Panel I/O	- 2 x Antenna Ports
	- 1 x HDMI Port
	- 1 x DisplayPort 1.4
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- 1 x USB 3.2 Gen2 Type-C Port
	- 2 x USB 3.2 Gen1 Ports
	- 4 x USB 2.0 Ports
	- 1 x RJ-45 LAN Port
	- 1 x BIOS Flashback Button
	- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software
	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Dragon 2.5G LAN Software
	- ASRock Polychrome SYNC*
	UEFI
	- ASRock EZ Mode
	- ASRock Full HD UEFI
	- ASRock Auto Driver Installer
	- ASRock Instant Flash
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 2 x SATA Data Cables
	- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	- Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)
