- ASUS PRIME B760M-A WIFI II DDR5 M-ATX Gaming Motherboard - Black
- Specifications
- Description
- Shipping Info
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel Core processors
Ultrafast Connectivity: WIFI 6E, PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C connector
Comprehensive Cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Renowned Software: Armoury Crate, ASUS DriverHub

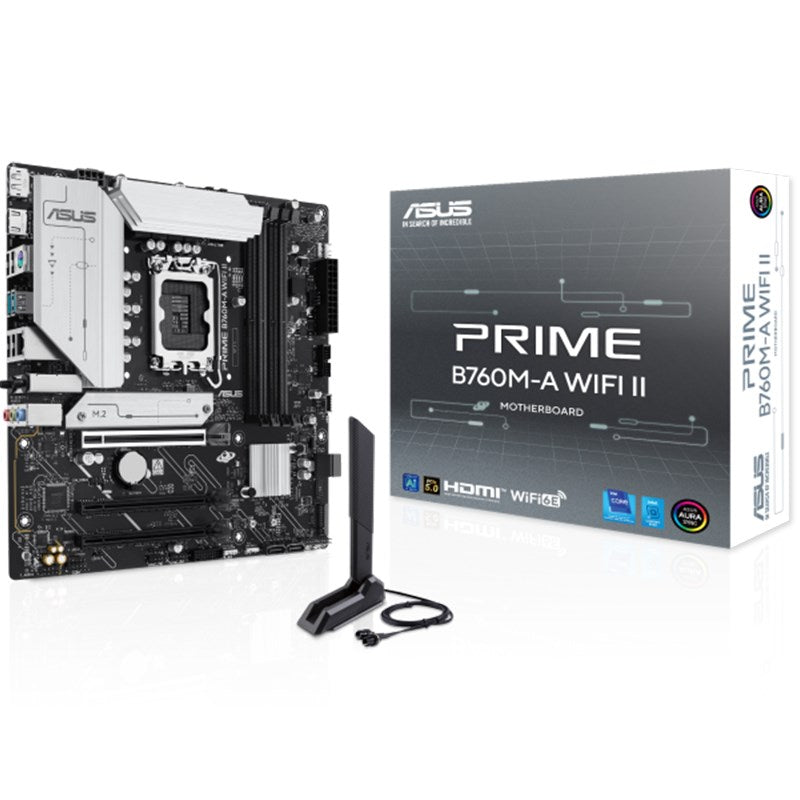

ASUS PRIME B760M-A WIFI II DDR5 M-ATX Gaming Motherboard |
B760M-A WIFI IIASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand. What are the benefits of ASUS PRIME B760M-A WIFI II Gaming Motherboard ?
|
Specification
Model |
PRIME B760M-A WIFI II |
Chipset |
Intel B760 Chipset |
Ethernet |
1 x Realtek 2.5Gb Ethernet |
|
|
ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 6E |
|
|
2x2 Wi-Fi 6E (802.11ax) |
|
|
Supports 2.4/5/6GHz frequency band |
|
|
Supports Wi-Fi 6E 160MHz bandwidth |
|
|
Bluetooth v5.4 |
USB |
Rear USB (Total 6 ports) |
|
|
2 x USB 10Gbps ports (2 x Type-A ) |
|
|
4 x USB 2.0 ports (4 x Type-A) |
|
|
Front USB (Total 10 ports) |
|
|
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
|
|
1 x USB 5Gbps connector (supports USB Type-C) |
|
|
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
|
1x USB 2.0 header supports 1 additional USB 2.0 port |
|
|
USB Type-C power delivery output: max. 5V/3A |
|
|
U5G_EC3 and USB_E5 can only be enabled/disabled simultaneously. |
Back Panel I/O Ports |
2 x USB 10Gbps ports (2 x Type-A ) |
|
|
4 x USB 2.0 ports (4 x Type-A) |
|
|
1 x DisplayPort |
|
|
1 x HDMI port |
|
|
1 x Wi-Fi Module |
|
|
1 x Realtek 2.5Gb Ethernet port |
|
|
3 x Audio jacks |
|
|
1 x PS/2 Keyboard/Mouse combo port |
BIOS |
128 MB Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Operating System |
Windows 11, Windows 10 64-bit |
Form Factor |
mATX Form Factor |
|
|
9.6" x 9.6" ( 24.4 cm x 24.4 cm ) |
