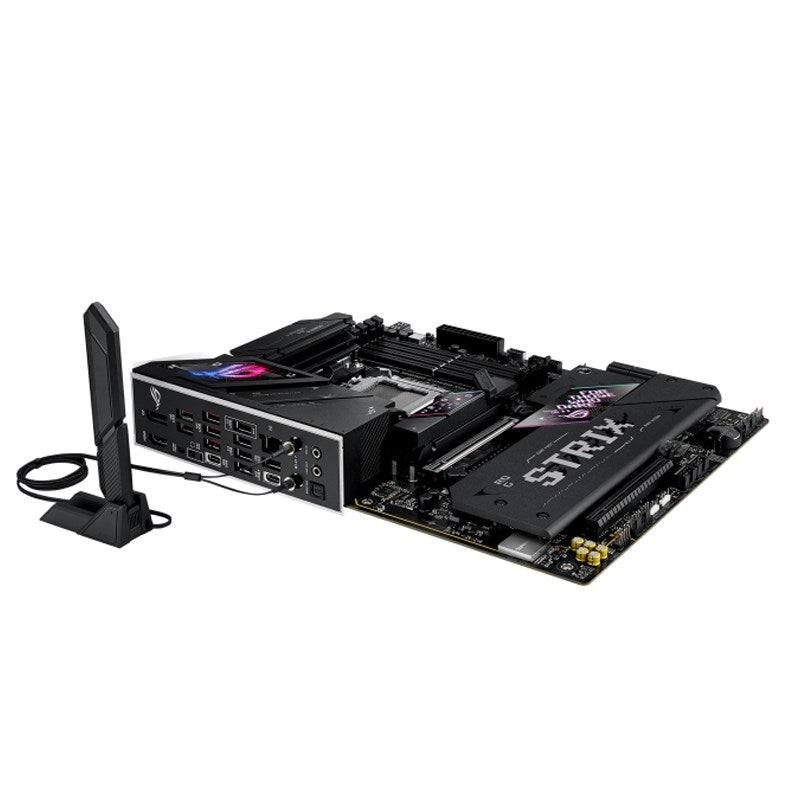

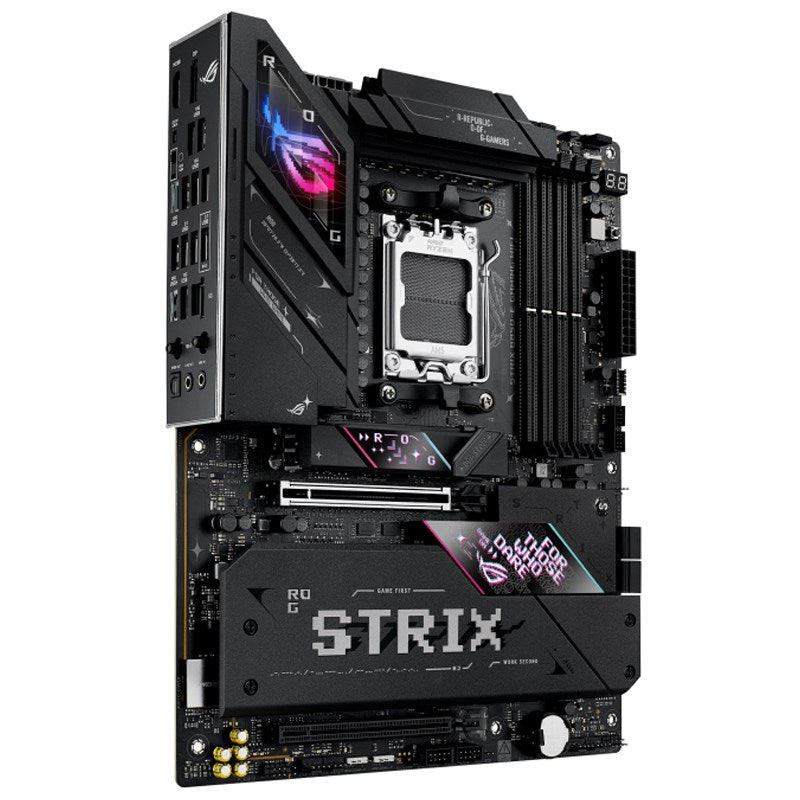

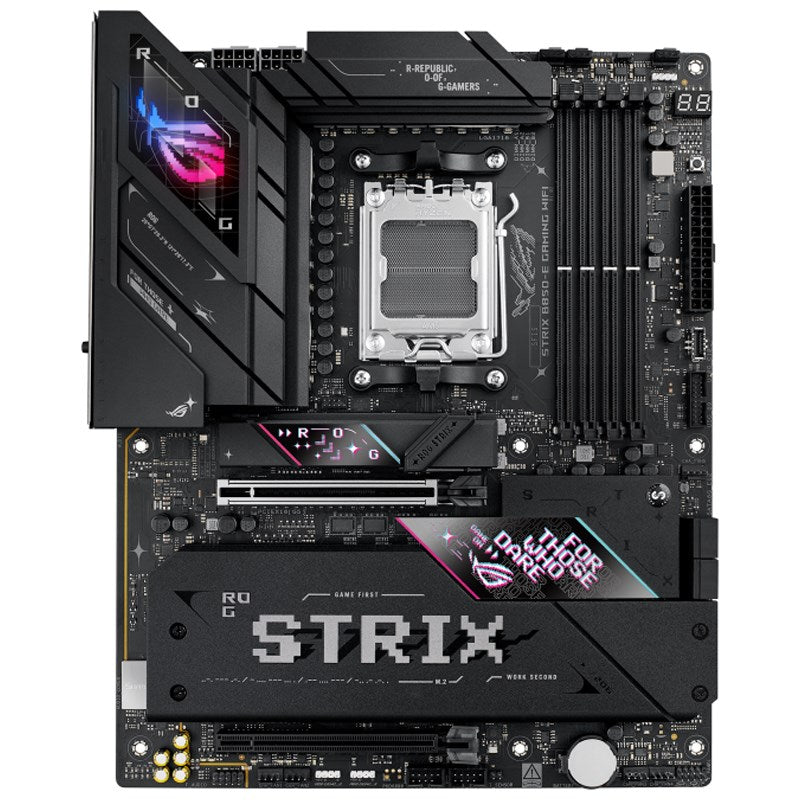

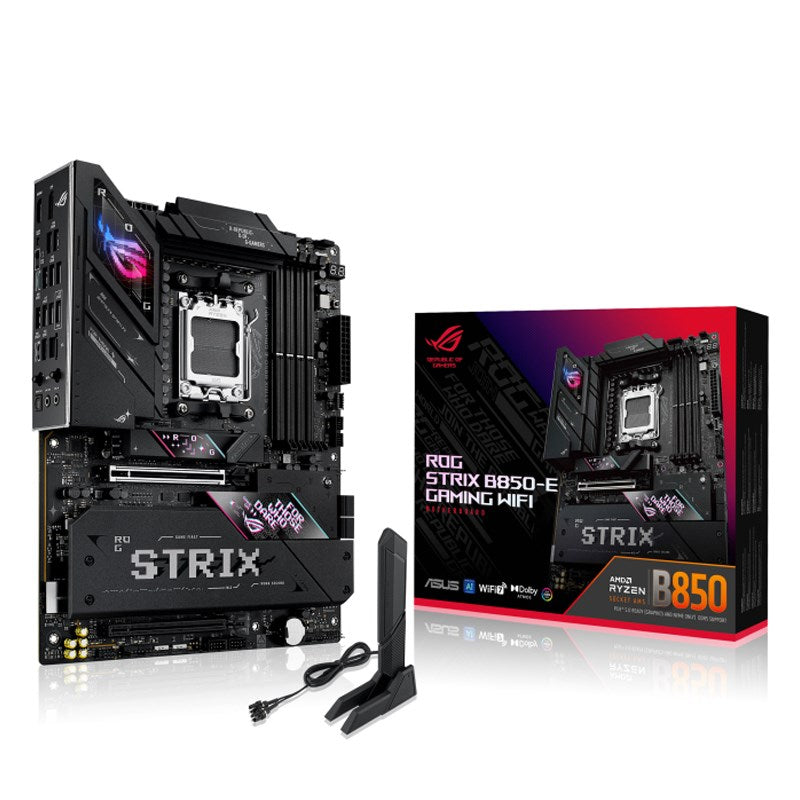

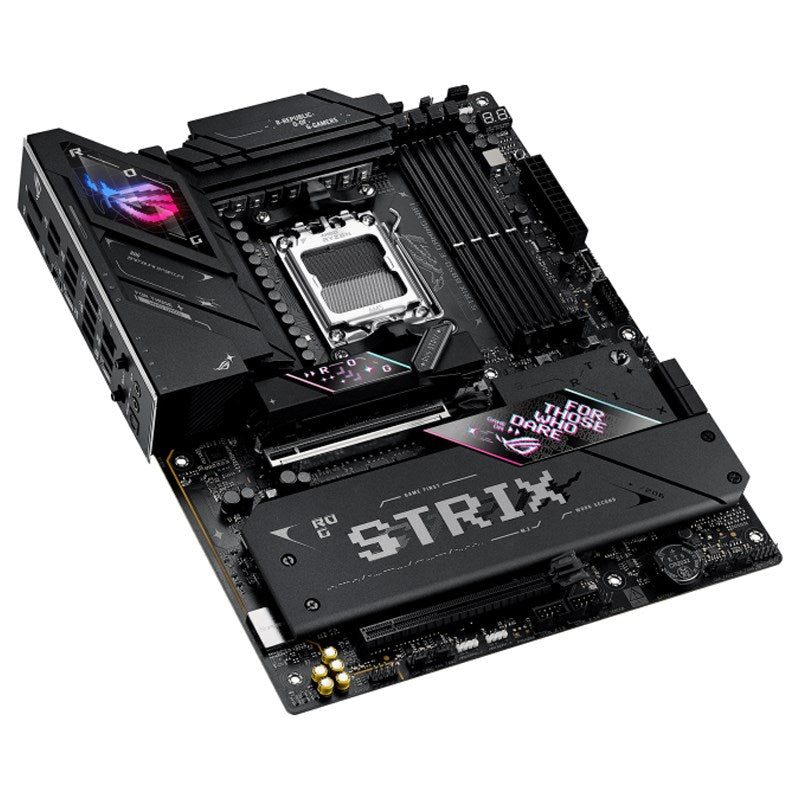

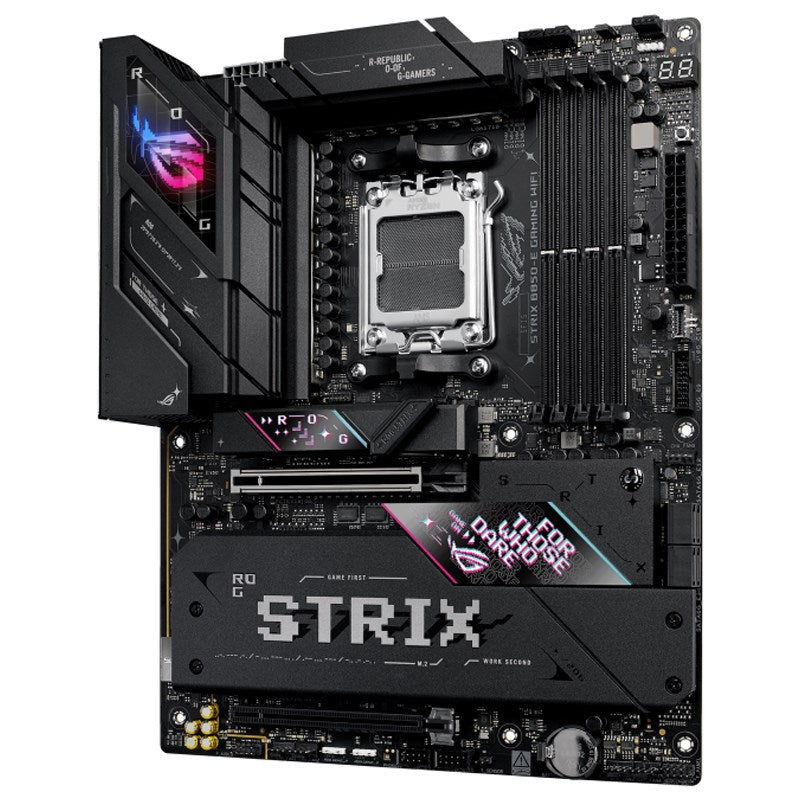

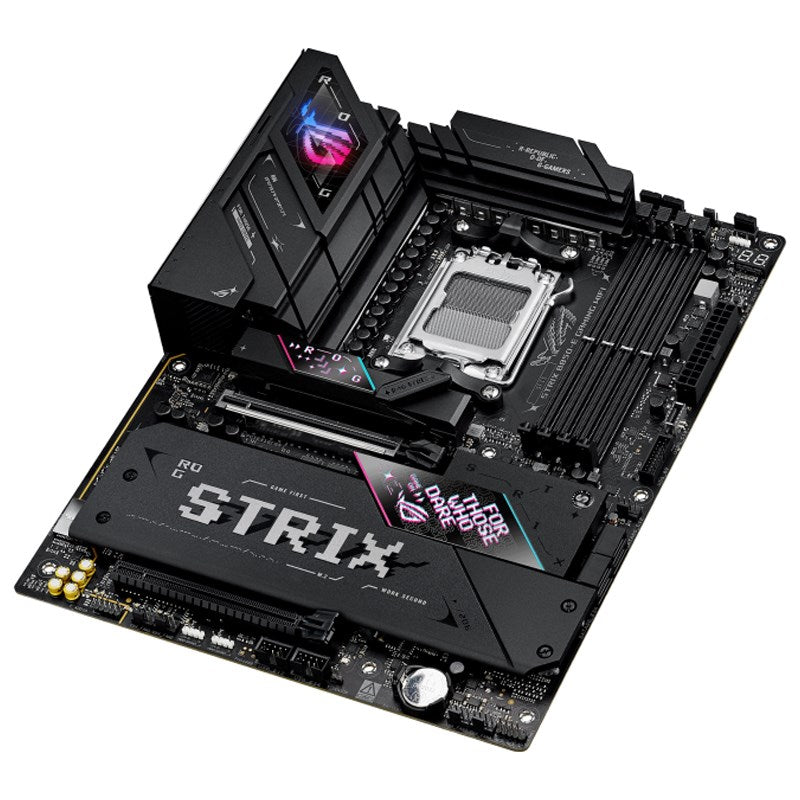

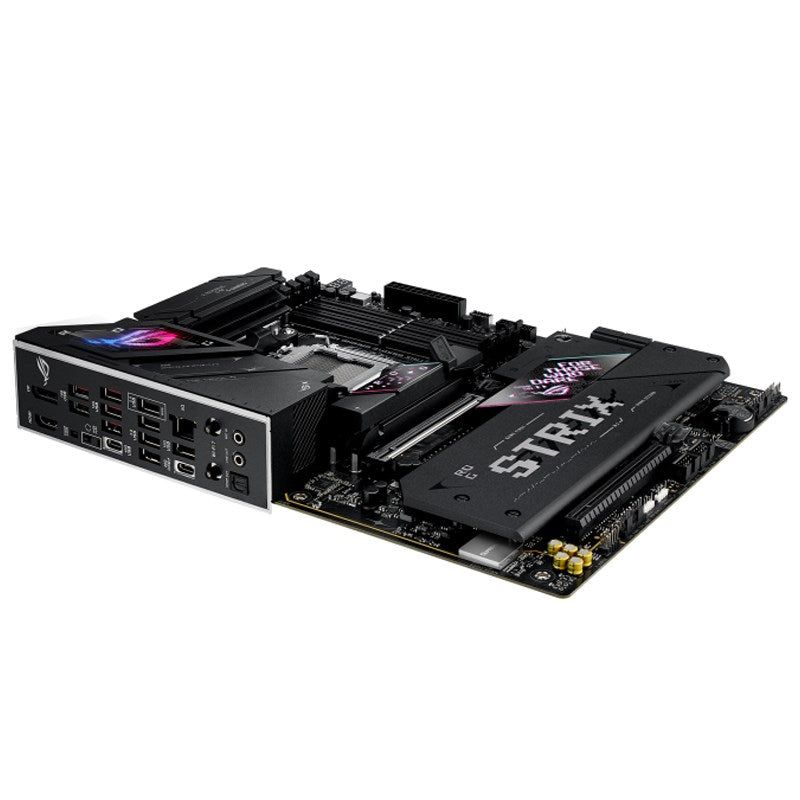

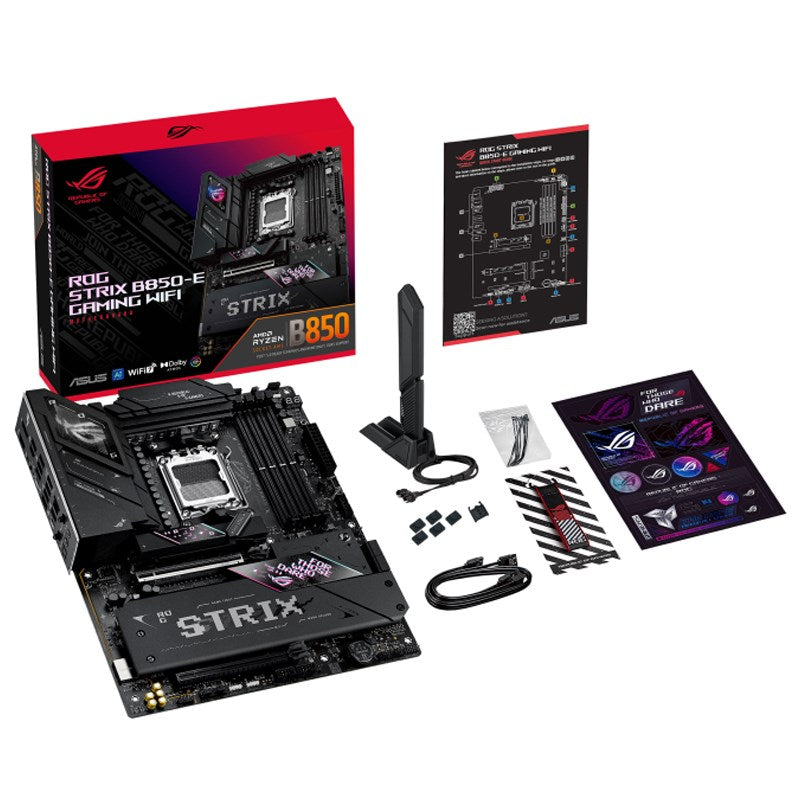

Asus ROG STRIX B850-E GAMING WIFI AM5 DDR5 ATX Gaming Motherboard

Asus

Asus ROG STRIX B850-E GAMING WIFI AM5 DDR5 ATX Gaming Motherboard

Name: Asus ROG STRIX B850-E GAMING WIFI AM5 DDR5 ATX Gaming Motherboard
Brand: Asus
SKU: 90MB1J60-M0EAY0
Price: 119.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 90MB1J60-M0EAY0

Was :

119.000 KD

Quantity

Low stock

1 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors

Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance

ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, and PBO Enhancement

Robust Power Solution: 16+2+2 power solution rated for up to 90A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe

Latest M.2 Support: Three onboard PCIe® 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions

Abundant Connectivity: One USB4® Type-C port, USB 20Gbps Type-C® rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port

High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5 Gb Ethernet

DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, Power button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield

Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier and Dolby Atmos®

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, with three addressable Gen 2 headers

Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard

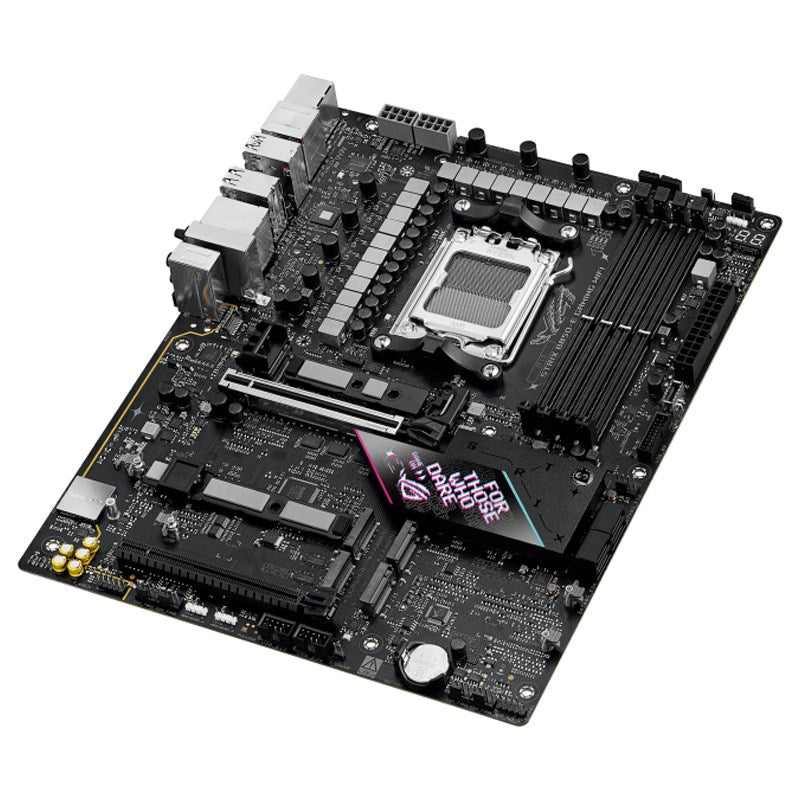

ROG STRIX B850-E GAMING WIFI

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe^® 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4^® Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

Specifications:

CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset	AMD B850
Memory	4 x DIMM slots, max. 256GB, DDR5
	Supports up to 8000+(OC)/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 Non-ECC, Un-buffered memory
	Dual Channel Memory Architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP II)
Graphics	1 x DisplayPort**
	1 x HDMI® port***
	1 x USB4® (40Gbps) port supports USB Type-C® display outputs****
	**Graphics specifications may vary between CPU types.
	**Supports max. 8K@60Hz as specified in DisplayPort 1.4
	***Supports 4K@60Hz as specified in HDMI 2.1
	****Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 mode)<br>AMD Ryzen™ 8000 Series Desktop Processors<br>1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8 or x4 mode)<br>AMD B850 Chipset<br>1 x PCIe 4.0 x16 slot (supports x4 mode)***
	*Please check the PCIe bifurcation table on the support site.
	**When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.
	***Specifications vary by CPU types.
	****M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
Multi-GPU Support	N/A
Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br>M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported)<br>M.2_3 slot (Key M), type 2280 (Not supported)<br>AMD B850 Chipset<br>M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
	M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.
	**M.2_2 and M.2_3 slots will be disabled while using AMD Ryzen™ 8000 Series Desktop Processors.
	***M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.
RAID	Supports RAID 0/1/5/10 for NVMe storage devices
	RAID 5 support for Ryzen™ 9000 Series only
Ethernet	1 x Realtek 5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band*
	Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
	Bluetooth® v5.4**
	*Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	**Bluetooth® version may vary, please refer to Wi-Fi module manufacturer’s website.
USB Ports (Rear)	1 x USB4® (40Gbps) port (USB Type-C®)
	1 x USB 20Gbps port (USB Type-C® with up to 30W PD/PPS Fast-charge)
	6 x USB 10Gbps ports (Type-A)
	4 x USB 2.0 ports (Type-A)
USB Ports (Front)	1 x USB 10Gbps connector (USB Type-C®)
	1 x USB 5Gbps header (supports 2 x USB 5Gbps ports)
	2 x USB 2.0 headers (support 4 x USB 2.0 ports)
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	- Impedance sense
	- Supports Jack-detection, Multi-streaming, MIC Jack-retasking
	- 120 dB SNR stereo playback output and 110 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback
	Premium Audio Features
	- Savitech SV3H712 AMP
	- Gold-plated audio jacks
	- Optical S/PDIF out
	- Premium audio capacitors
	- Audio cover

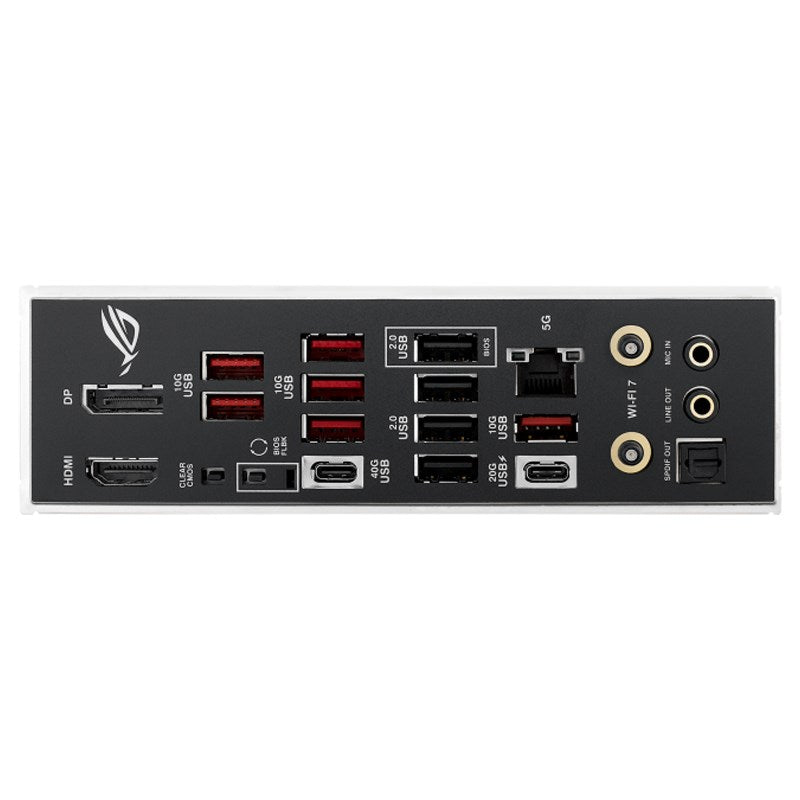

Back Panel I/O Ports	1 x USB4® (40Gbps)(Type-C®)
	1 x USB 20Gbps (Type-C® with PD/PPS)
	6 x USB 10Gbps (Type-A)
	4 x USB 2.0 (Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi Module
	1 x Realtek 5Gb Ethernet
	2 x Audio jacks
	1 x Optical S/PDIF out
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors	1 x 24-pin Main Power
	2 x 8-pin +12V CPU Power
	1 x 4-pin CPU Fan
	1 x 4-pin CPU OPT Fan
	1 x 4-pin AIO Pump
	5 x 4-pin Chassis Fan
	3 x Addressable Gen 2 headers
	1 x CPU Over voltage jumper
	1 x Front Panel Audio header
	1 x Power button
	1 x 10-1 pin Front Panel header
	1 x Thermal Sensor header
Software	- ROG CPU-Z
	- Armoury Crate
	- AIDA64 Extreme (60-day trial)
	- Aura Creator
	- Aura Sync
	- GameFirst
	- Fan Xpert 4
	- HWiNFO
	- Power Saving
	- ASUS DriverHub
	- ASUS GlideX
	- USB Wattage Watcher
	- TurboV Core
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Operating System	Windows 11
Form Factor	ATX Form Factor (30.5 cm x 24.4 cm)
