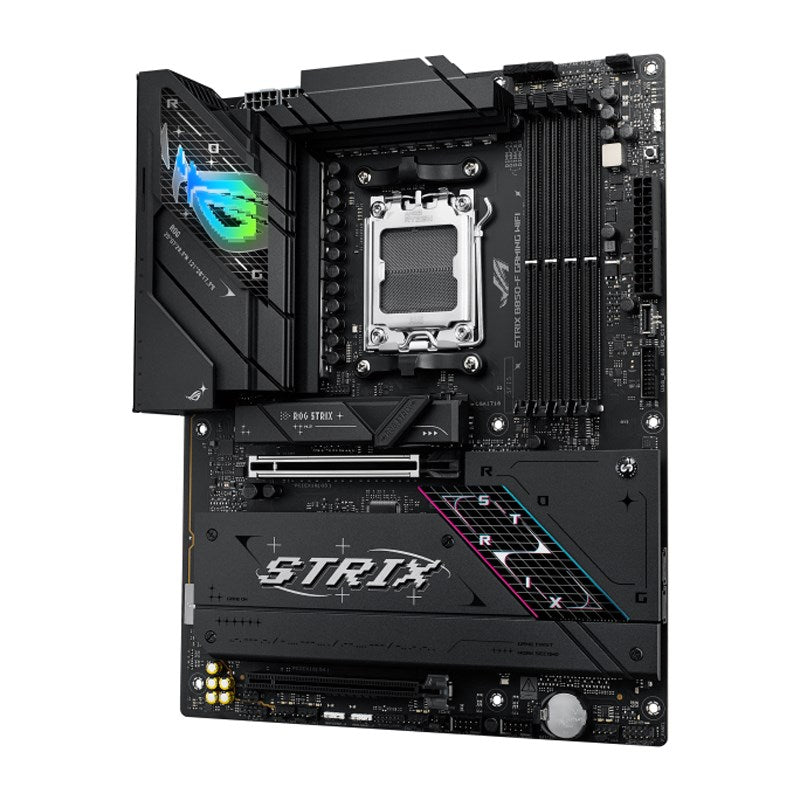

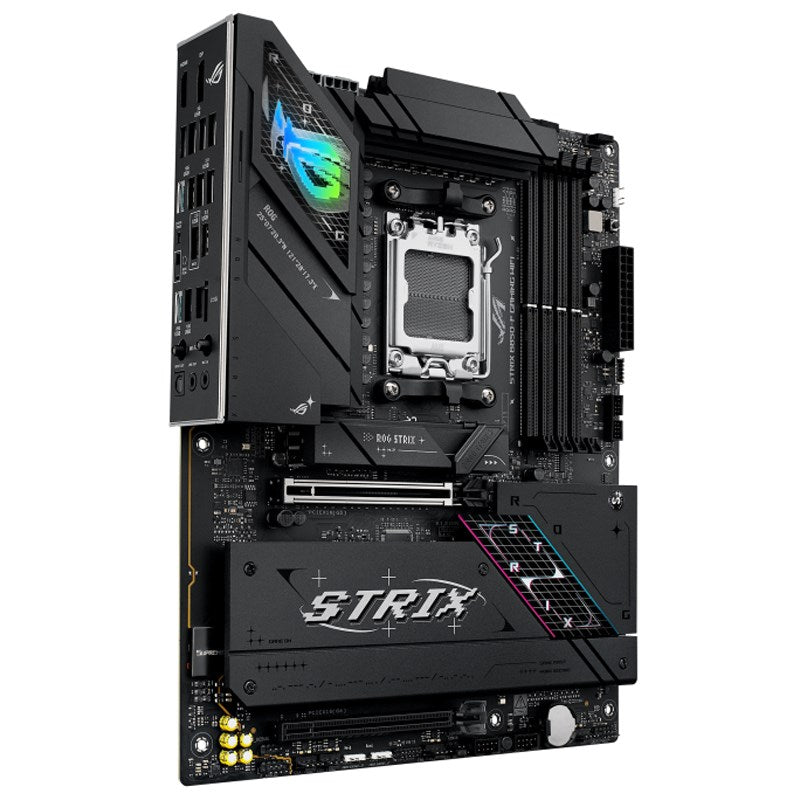

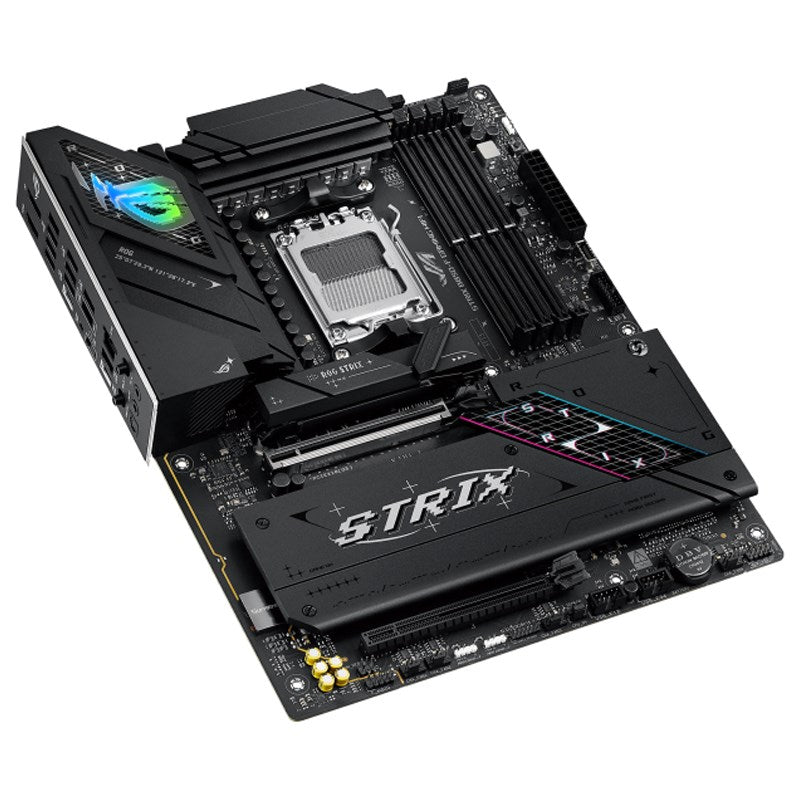

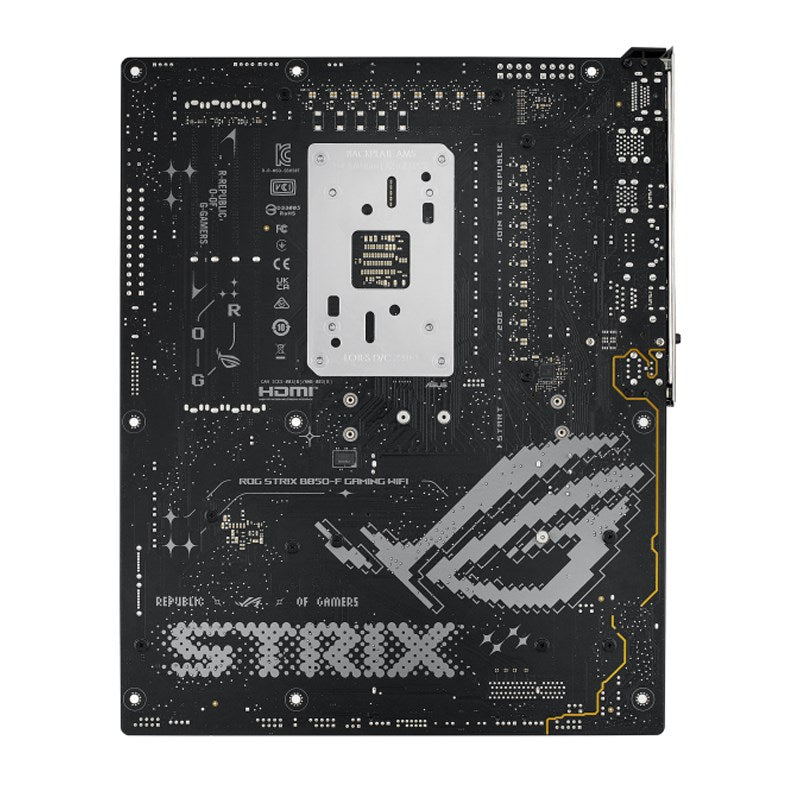

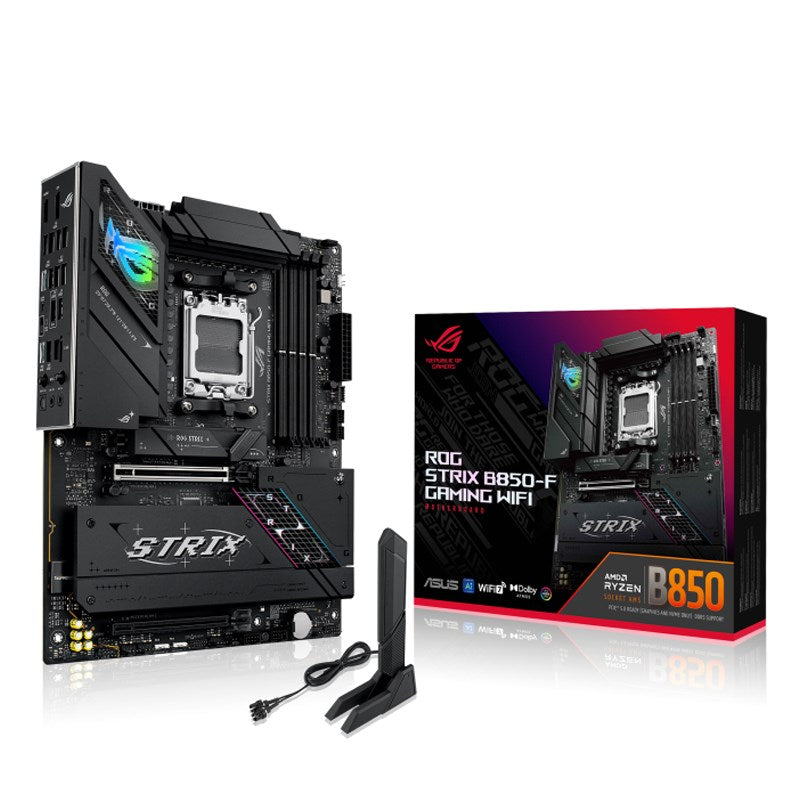

Asus ROG STRIX B850-F GAMING WIFI DDR5 ATX Gaming Motherboard

Asus

Asus ROG STRIX B850-F GAMING WIFI DDR5 ATX Gaming Motherboard

Name: Asus ROG STRIX B850-F GAMING WIFI DDR5 ATX Gaming Motherboard
Brand: Asus
SKU: 90MB1J70-M0EAY0
Price: 99.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 90MB1J70-M0EAY0

Was :

99.000 KD

Quantity

Low stock

1 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors

Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance

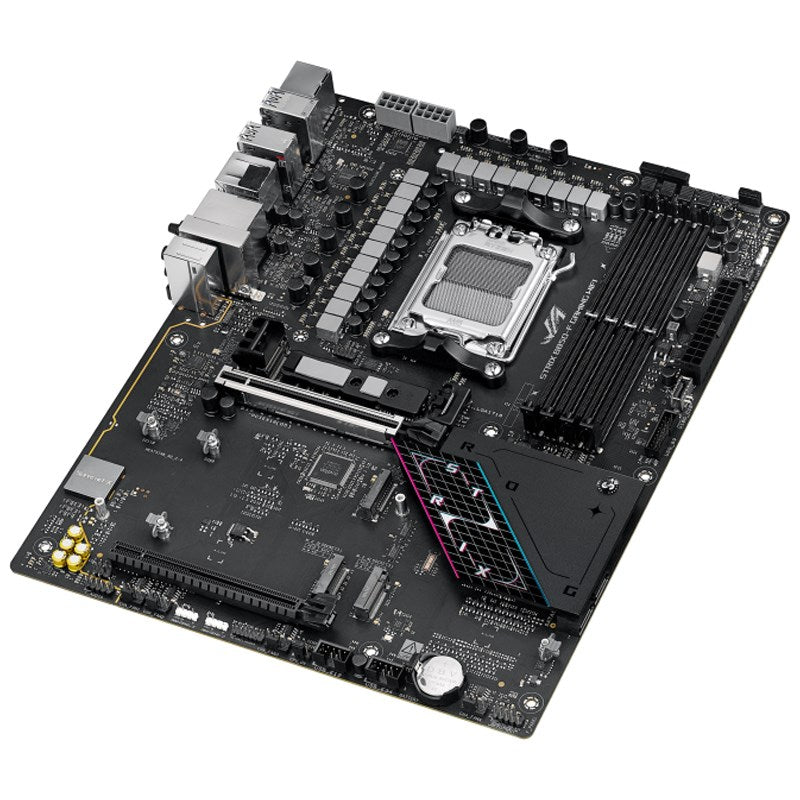

Robust Power Solution: 16+2+2 power solution rated for 80A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad

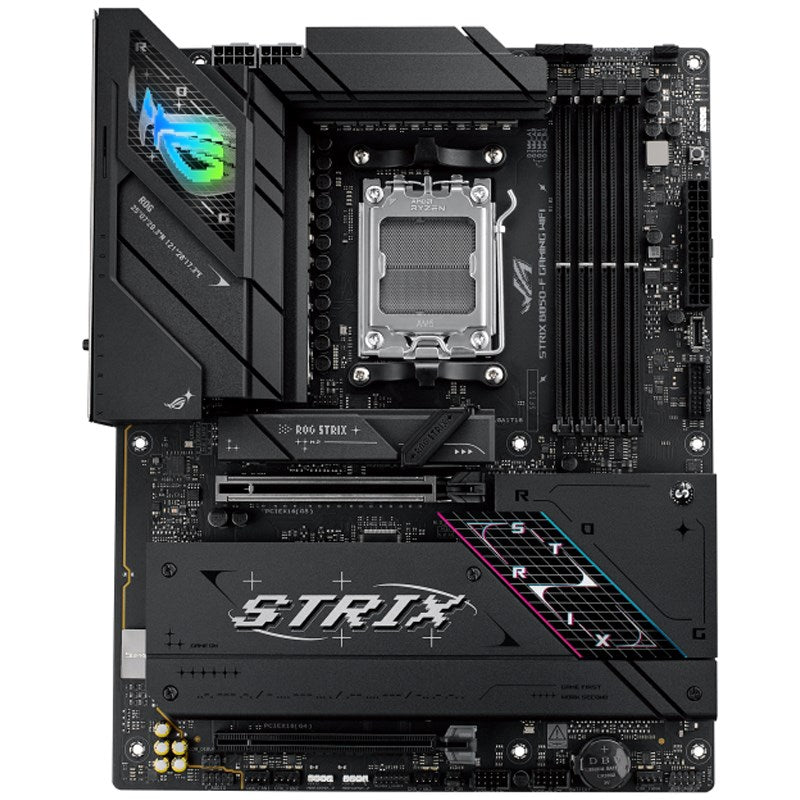

ROG STRIX B850-F GAMING WIFI

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

Specifications:

Model	ROG STRIX B850-F GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset	AMD B850 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
	Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
	ECC and Non-ECC, Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
	** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort*
	1 x HDMI™ port**
	- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	* Supports max. 8K@30Hz as specified in DisplayPort 1.4
	** Supports 4K@60Hz as specified in HDMI 2.1
	*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors
	1 x PCIe 5.0 x16 slot with Q-Release Slim
	AMD Ryzen™ 8000 Series Desktop Processors
	1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)*
	AMD B850 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)**
	* Specifications vary by CPU types.
	** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
Storage	AMD Ryzen™ 7000 & 9000 Series Desktop Processors
	Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
	M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
	M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
	AMD Ryzen™ 8000 Series Desktop Processors
	M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
	M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset	M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**
	M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)
	2 x SATA 6Gb/s ports
	* Specifications vary by CPU types.
	** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
AMD RAIDXpert2 Technology	Ryzen™ 9000 Series Processors: RAID 0/1/5/10
	Ryzen™ 8000 Series Processors: RAID 0/1
	Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel® 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
	For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 12 ports)	1 x USB 20Gbps port (1 x USB Type-C®)
	3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
	4 x USB 5Gbps ports (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)	1 x USB 10Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features	- SupremeFX Shielding Technology
	- Savitech SV3H712 AMP
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Audio cover
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
	** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

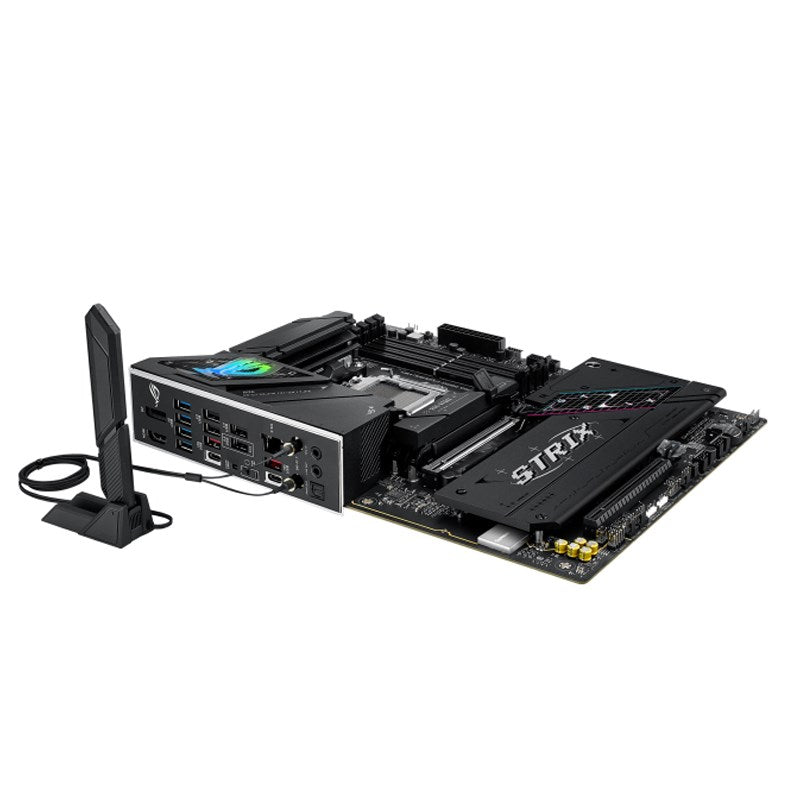

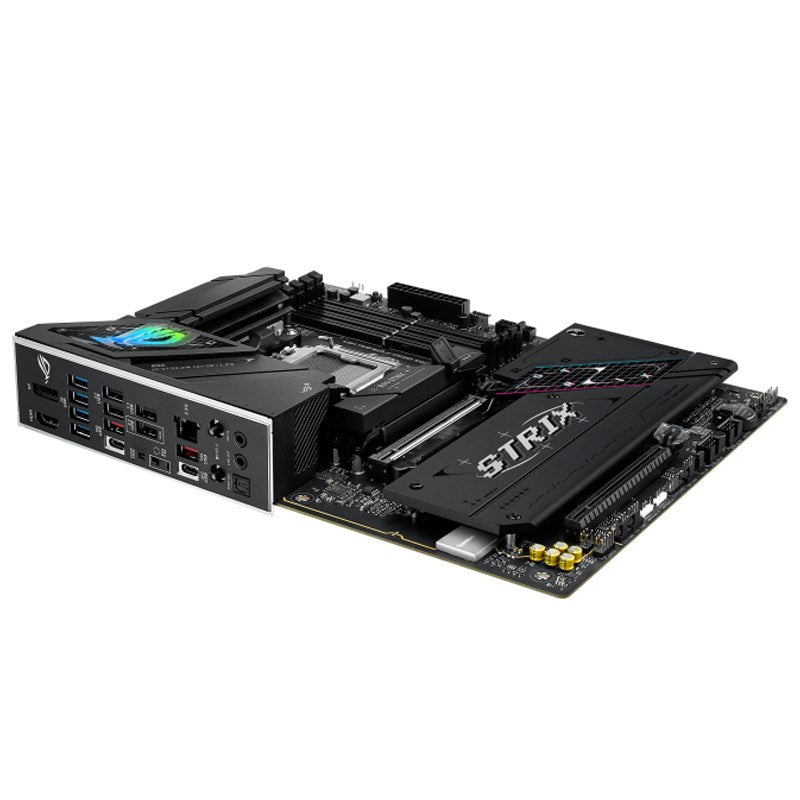

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®)
	3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
	4 x USB 5Gbps ports (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Intel® 2.5Gb Ethernet port
	2 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
Power Related	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connector
Storage Related	4 x M.2 slots (Key M)
	2 x SATA 6Gb/s ports
USB	1 x USB 10Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous	3 x Addressable Gen 2 headers
	1 x CPU Over voltage jumper
	1 x Front Panel Audio header (F_AUDIO)
	1 x Power button
	1 x 10-1 pin Front System Panel header
	1 x Thermal Sensor header
	1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+	- 5K Black metallic capacitors
ASUS Q-Design	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
ASUS Thermal Solution	- M.2 heatsink backplate
	- M.2 heatsink
ASUS EZ DIY	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- Clear CMOS button
	- ProCool
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
Aura Sync	- Addressable Gen 2 headers
Software Features
ROG Exclusive Software	- ROG CPU-Z
	- Dolby Atmos
ASUS Exclusive Software	Armoury Crate
	- AIDA64 Extreme (60 days free trial)
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4
	- GameFirst
	- HWiNFO
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	TurboV Core
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
UEFI BIOS	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

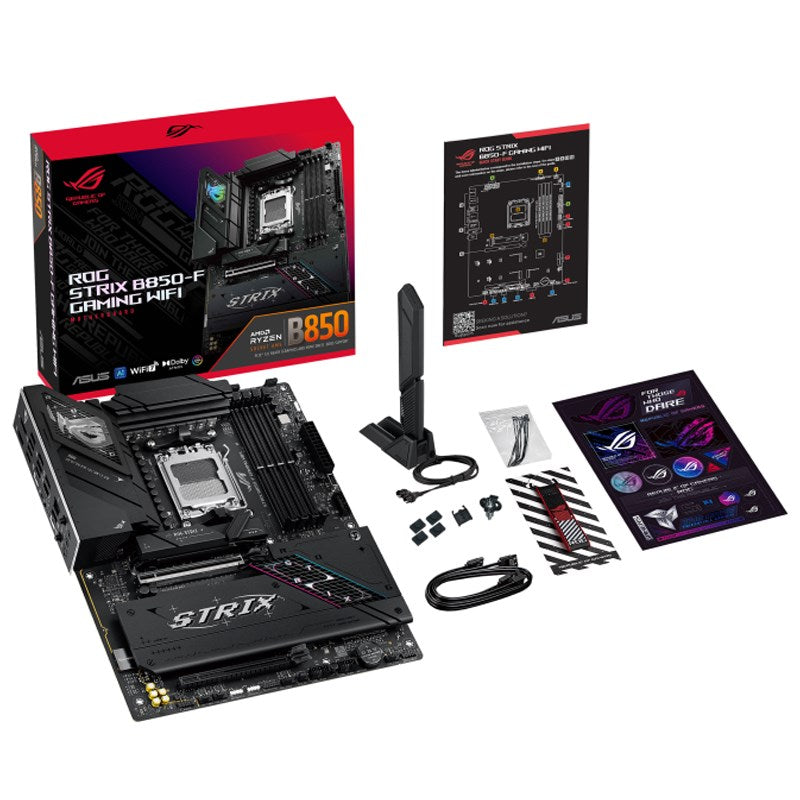

Accessories
Cables	2 x SATA 6Gb/s cables
Miscellaneous	1 x ASUS WiFi Q-Antenna
	1 x Cable ties package
	1 x M.2 Q-Latch package
	1 x M.2 Q-Slide package
	1 x ROG key chain
	1 x ROG Strix stickers
	4 x M.2 rubbers
Documentation	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
