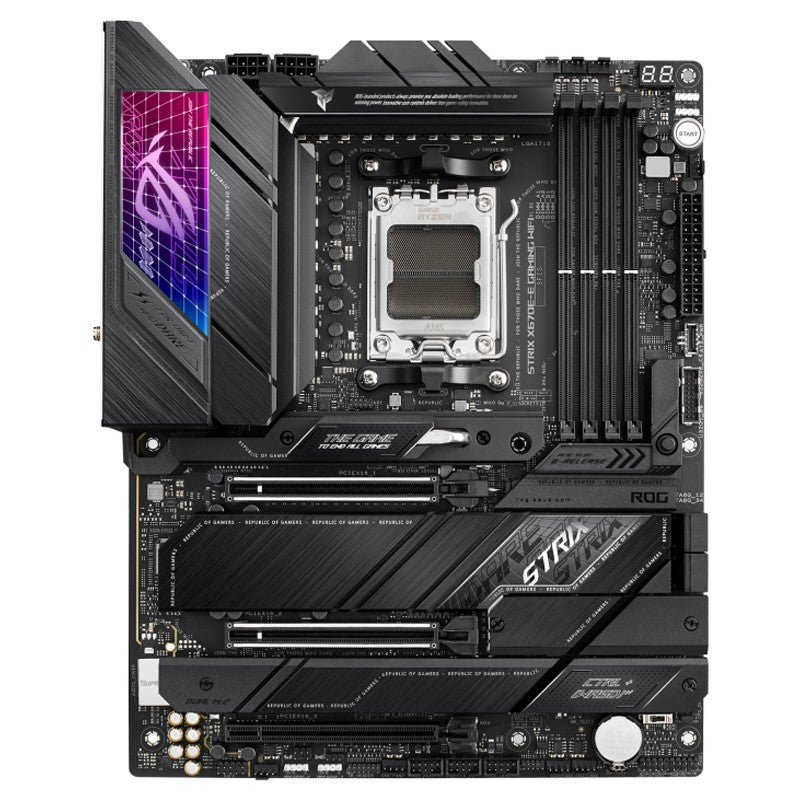

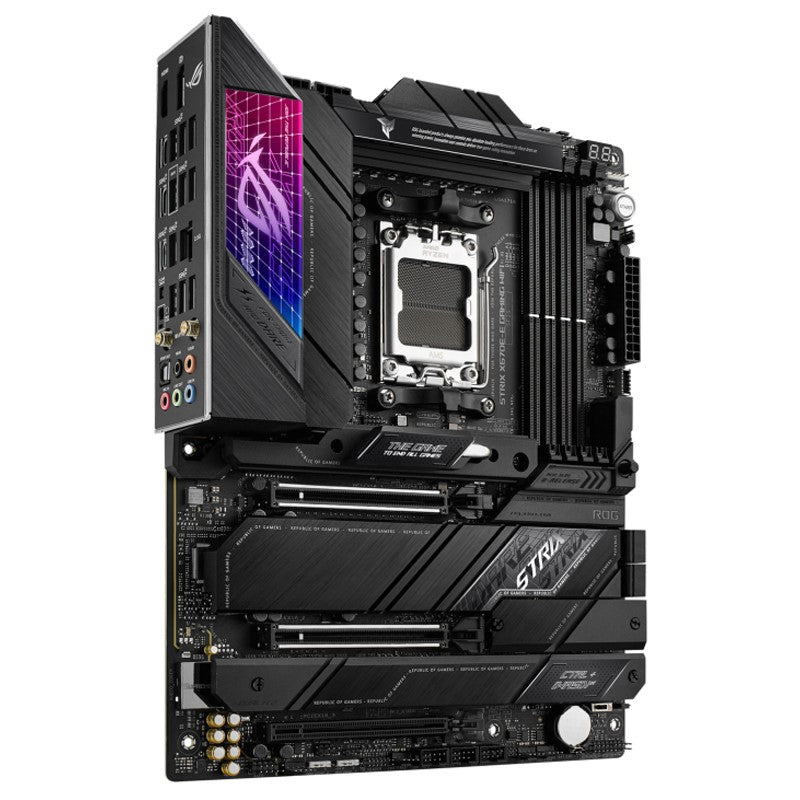

Asus ROG STRIX X670E-E WIFI ATX Gaming Motherboard

PCIE 5.0

Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots.

Q-Code

An on-board display shows diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

CLR CMOS & BIOS Flashback Button

The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

Start Button

This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.

Leading Connectivitiy

The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

Teamed Power Architecture

18 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen 7000 through any workload.

The Rog Strix Ecosy Stem Awaits

Level up your game with ROG Strix. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.

CPU

AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/

5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO)

OptiMem II

Supported memory types, data rate(Speed),and number of DRAM module vary depending on the CPU and memory configuration

 Non-ECC, Un-buffered DDR5 Memory supports

On-Die ECC function

Graphics

1 x DisplayPort

1 x HDMI port

Supports max. 8K@60Hz as specified in DisplayPort 1.4

Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots

AMD Ryzen 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

USB

Rear USB (Total 13 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x

USB Type-C)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 connector

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High

Definition Audio CODEC ALC4080

- Impedance sense for front and rear

headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- Audio Shielding

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the

front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x Type-C)

12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB

Type-C)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack  button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Alteration Mode Switch

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Code

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA

[white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

- Massive M.2 Heatsink

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual

Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4 (with AI Cooling II)

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- TPU

- DIGI+ VRM

- Turbo app

- PC Cleaner

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Dynamic OC Switcher

FlexKey

BIOS

256 MbFlash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

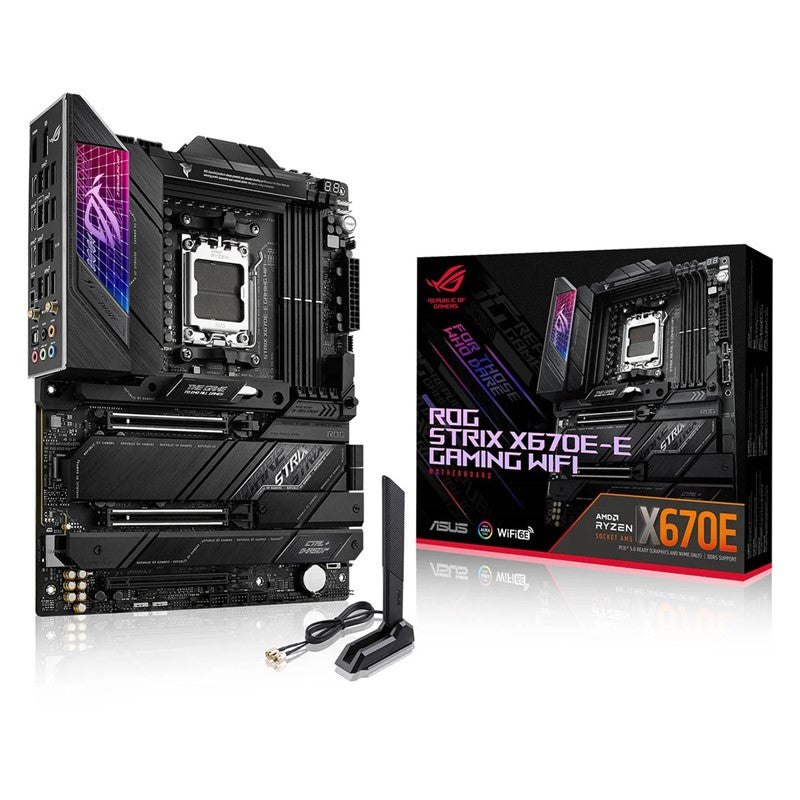

Accessories

Cables

2x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x Massive M.2 Heatsink

1 x M.2 Q-Latch package for M.2 backplate

1 x M.2 Q-Latch package

1 x ROG Graphics card holder

2 x Rubber Packages for M.2

1 x Rubber Package for M.2 backplate

1 x ROG key chain

1 x ROG Strix sticker

1 x ROG Strix thank you card

Documentation

1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

ATX Form Factor

12'' x 9.6'' ( 30.5 cm x 24.4 cm )
