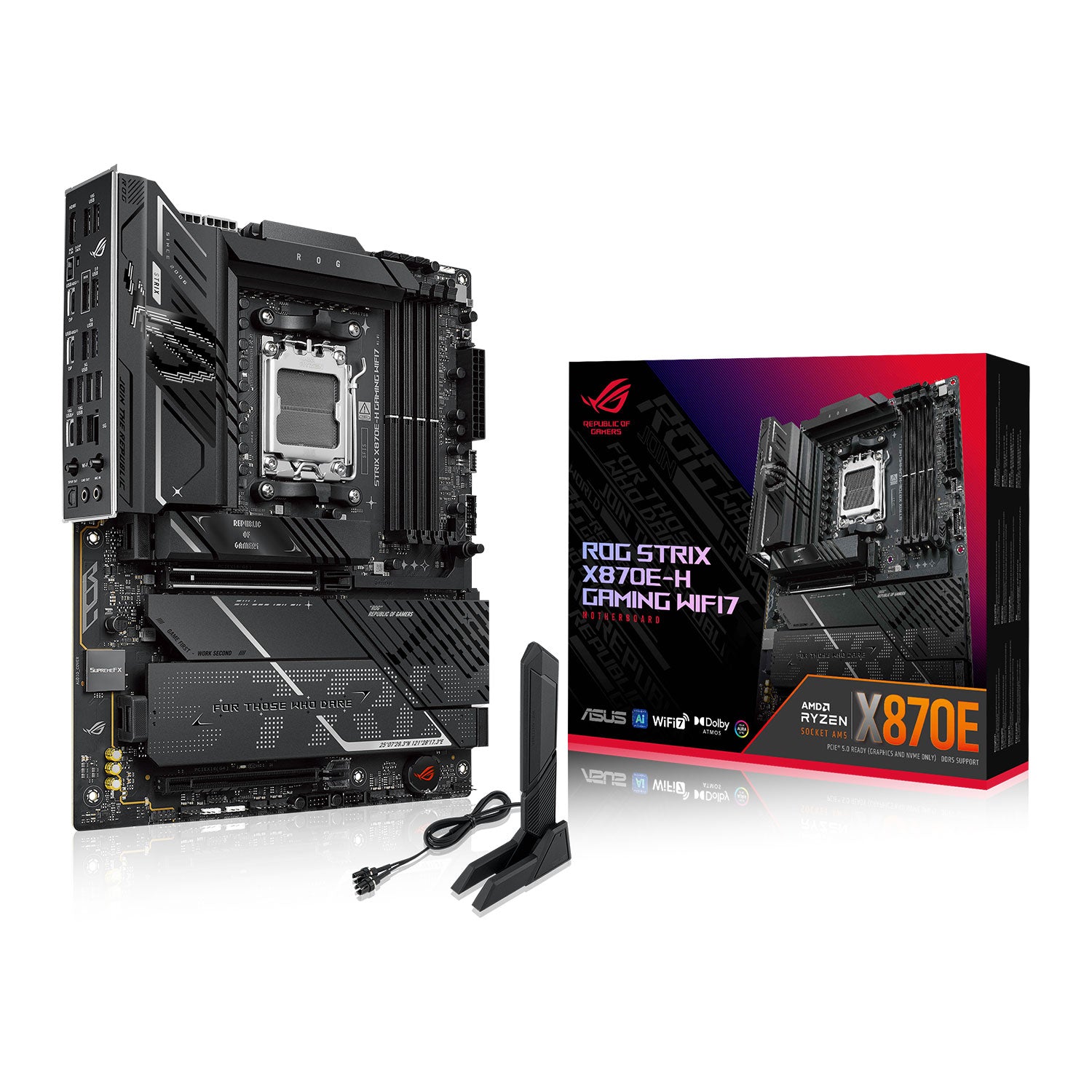

Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Gaming Motherboard

Asus ROG STRIX X870E-H GAMING WIFI7 AMD AM5 ATX Gaming Motherboard

ROG STRIX X870E-H GAMING WIFI7

Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard.

Engineered to dominate with AMD Ryzen 9000 Series desktop processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4 Type-C ports, and Wi-Fi 7, it delivers advanced connectivity.

DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.

ASUS AI Advisor

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks.

The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.

In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases.

But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO Enhancement

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

CPU

AMD Socket AM5, supports Ryzen 9000, 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 x DIMM slots, max 256GB, DDR5, dual channel, supports EXPO/AEMP

Graphics

1 x HDMI, 2 x USB4 Type-C (supports display output)

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (varies by CPU)

Storage

4 x M.2 slots, 4 x SATA 6Gb/s

RAID Support

AMD RAIDXpert2: RAID 0/1/5/10 (varies by CPU)

Ethernet

1 x Realtek 5Gb Ethernet, ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (2x2, 802.11be), supports 2.4/5/6GHz, Bluetooth v5.4

USB Ports

Rear: 2 x USB4 Type-C, 4 x USB 10Gbps, 6 x USB 5Gbps, 2 x USB 2.0; Front: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps, 2 x USB 2.0 headers
