Asus TUF GAMING B860-PLUS WIFI DDR5 ATX Gaming Motherboard

Product SKU: 90MB1JL0-M0EAY0

Was :

76.000 KD

Quantity

Low stock

2 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail.

This platform delivers the power and connectivity that advanced AI PC applications demand.

Asus TUF GAMING B860-PLUS WIFI DDR5 ATX Gaming Motherboard

Specifications:

Model	TUF GAMING B860-PLUS WIFI
CPU	Support Intel® Core™ Ultra Processors(Series 2) , LGA1851*
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
	Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
	Dual channel memory architecture
	Supports Intel® Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile III(AEMPIII)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
	**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort**
	1 x HDMI™ port***
	1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
	****Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	***** VGA resolution support depends on processors' or graphic cards' resolution.
	******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors(Series 2)
	1 x PCIe 5.0 x16 slot
	Intel® B860 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)*
	1 x PCIe 4.0 x1 slot*
	* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® Core™ Ultra Processors(Series 2)*
	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
	Intel® B860 Chipset
	M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports)
	1 x USB 20Gbps port (1 x USB Type-C®)
	2 x USB 10Gbps ports (2 x Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 5 ports)
	1 x USB USB 10Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback"
Audio Features	- Audio Shielding
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio cover
	* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

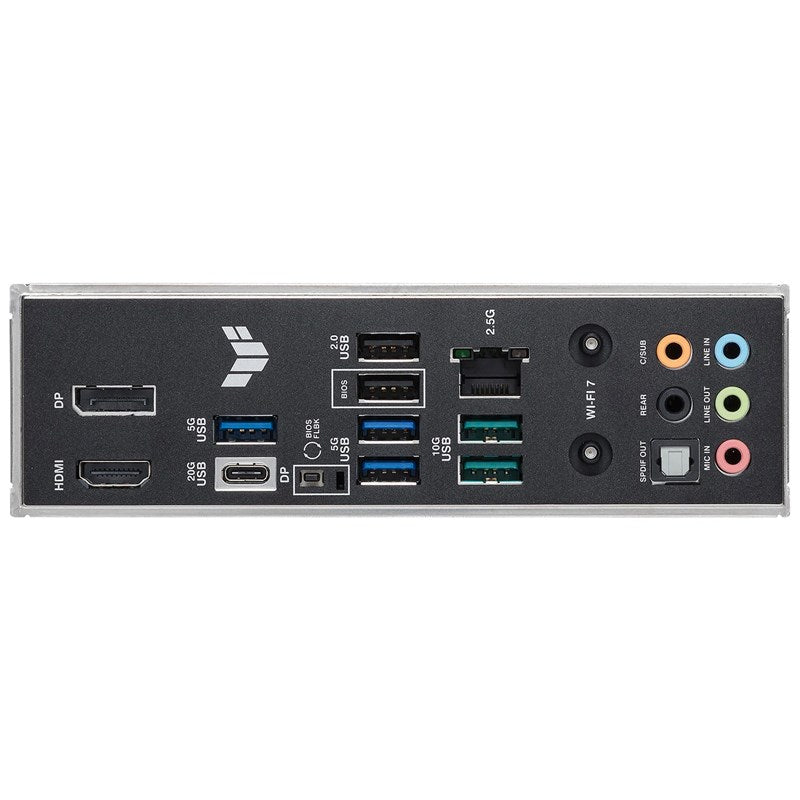

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
	2 x USB 10Gbps ports (2 x USB Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
	2 x USB 10Gbps ports (2 x USB Type-A)
	3 x USB 5Gbps ports (3 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connectors
	Storage Related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 10Gbps connector (supports USB Type-C® )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin Front System Panel header
	1 x Thunderbolt™ (USB4®) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-Antenna
	- Q-Dashboard
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	Aura Sync
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	TUF GAMING CPU-Z
	DTS Audio Processing
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories
Cables	2 x SATA 6Gb/s cables
Miscellaneous	1 x ASUS WiFi Q-Antenna
	2 x M.2 rubber packages
	1 x Screw package for M.2 SSD
	1 x TUF GAMING sticker
Documentation	1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
