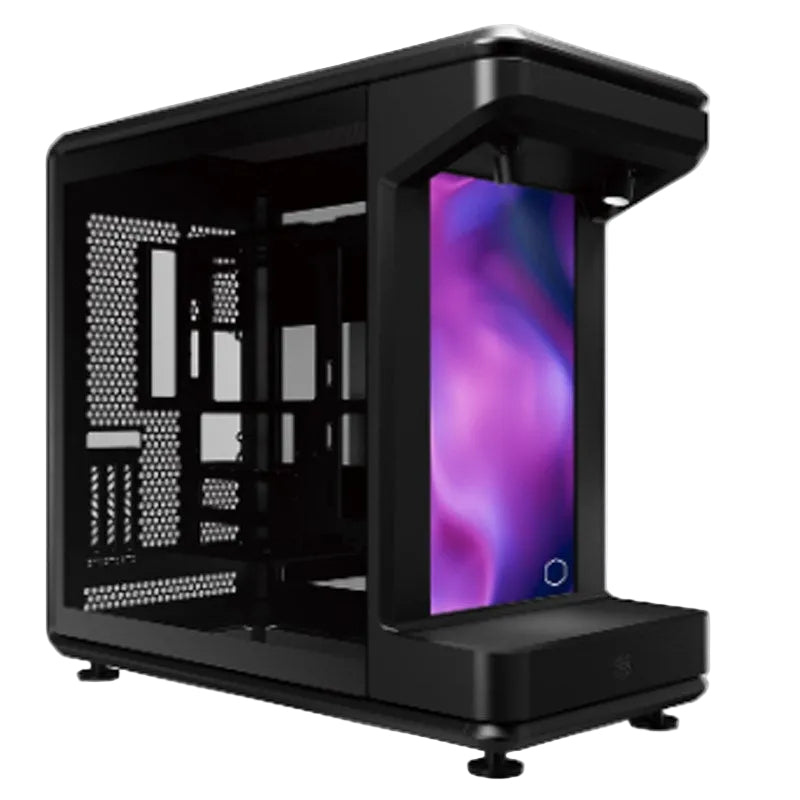

Cooler Master MasterFrame 360 Stage With 15.6" LCD Screen ATX Case - Black
- Specifications
- Description
- Shipping Info
- Reviews
Showcase Without Compromise
MasterFrame 360 Series
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform
Featuring Cooler Master’s signature Aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage
The PC is no longer just a machine — it’s a statement.
Cooler Master MasterFrame 360 Stage With 15.6" LCD Screen ATX Case |
|
Massive Cooling Compatibility Supports fan sizes ranging from 120mm to 200mm, with space for up to twelve 120mm fans—six on the top and six on the bottom. It also supports radiators up to 360mm, meeting the cooling demands of high-end custom liquid cooling setups. Wide Component Compatibility Accommodates up to 430mm GPUs and 210mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor. Features 110mm of cable routing clearance for a clean and clutter-free showcase. LCD By using a 15.6"LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations. PCIe 5.0 Riser Cable Included Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box. Key Features
|
Specification
Specification - LCD |
|
|
|
MASTERFRAME Series |
|
|
Black |
|
|
MF360-KHNN-S02 |
|
|
Materials - Exterior SGCC |
|
|
Materials - Side Panel (Left / Right) TG / TG |
Dimensions |
Dimension (L x W x H) - Incl. Protrusions 549 x 291 x 581 mm |
|
|
Dimension (L x W x H) - Excl. Protrusions 511 x 291 x 581 mm |
|
|
Dimension (L x W x H) - Volume (w/o panel, protrusions and feet) 86 L |
|
|
Dimension (L x W x H) - Volume (with panel, protrusions and feet) 93 L |
Hardware & Drive Bay |
Hardware support - Motherboard Support Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
|
|
Hardware support - Power Supply Support ATX |
|
|
Hardware support - PCI Expansion Slots 3.5 |
|
|
Drive Bay Support - 3.5" Drive Bays - 0 |
|
|
Drive Bay Support - 3.5" / 2.5" Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2 |
|
|
Preinstalled Drive Bay - 3.5" / 2.5" Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2 |
I/O |
I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G; 1x USB 4.0 Gen 2x2 Type-C 20G |
|
|
I/O Panel - Audio In / Out 1x 3.5 mm Headset Jack (Audio + Mic) |
Fans |
Fans Support - Top 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm |
|
|
Fans Support - Bottom 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm |
Radiator |
Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) |
|
|
Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) |
Others |
Dust Filters - Removable Filters Mesh Only |
|
|
Other Electronic Components PCIe 5.0 Riser / ARGB spotlight *2 / 15.6-inch Screen 1920×1080p FHD (16G Built-in), Win11 supported |
|
|
Maximum Dimensions for Front Collectibles Display (H x W x D) 328 x 290 x 110 mm |
|
|
DIY Tank & Pump Support Yes (Left side) |
|
|
Toolbox - Yes |
|
|
Clearances - CPU Cooler 145mm |
|
|
Clearances - Power Supply 210mm |
|
|
Clearances - Graphics Card 430mm |
|
|
Cable Routing - Behind MB Tray 110mm |
