Cooler Master V750 Gold - V2 Semi-Fanless Full-modular 750 Watts ATX Gaming Power Supply - Black

Cooler Master V-Series V750 Gold V2 750W ATX

80 Plus Gold Certified

The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components.

The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

Performance Driven Topology

The V Gold - v2 is a professional grade power supply unit made for the normal user. It's more than just the 80 PLUS Gold efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside.

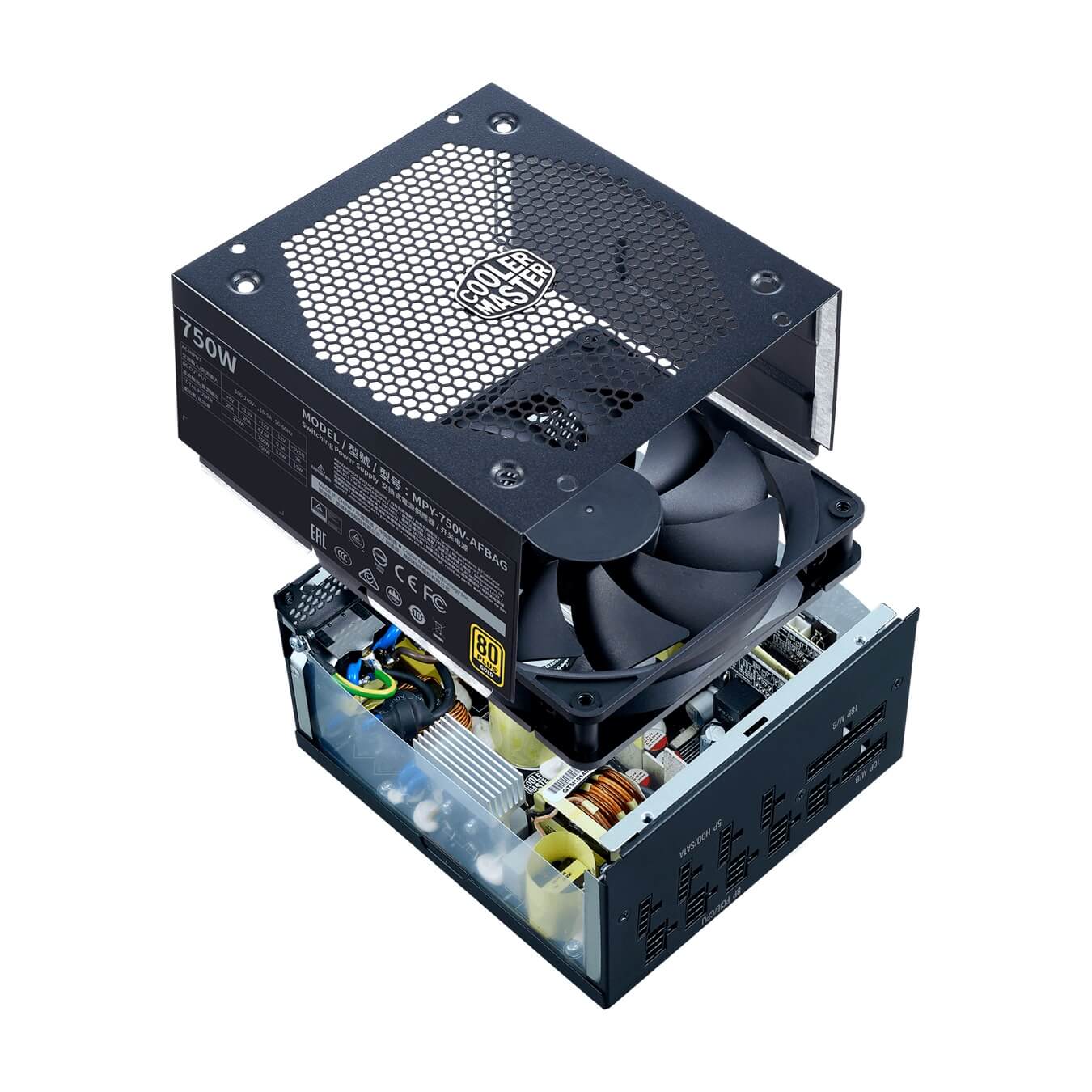

The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

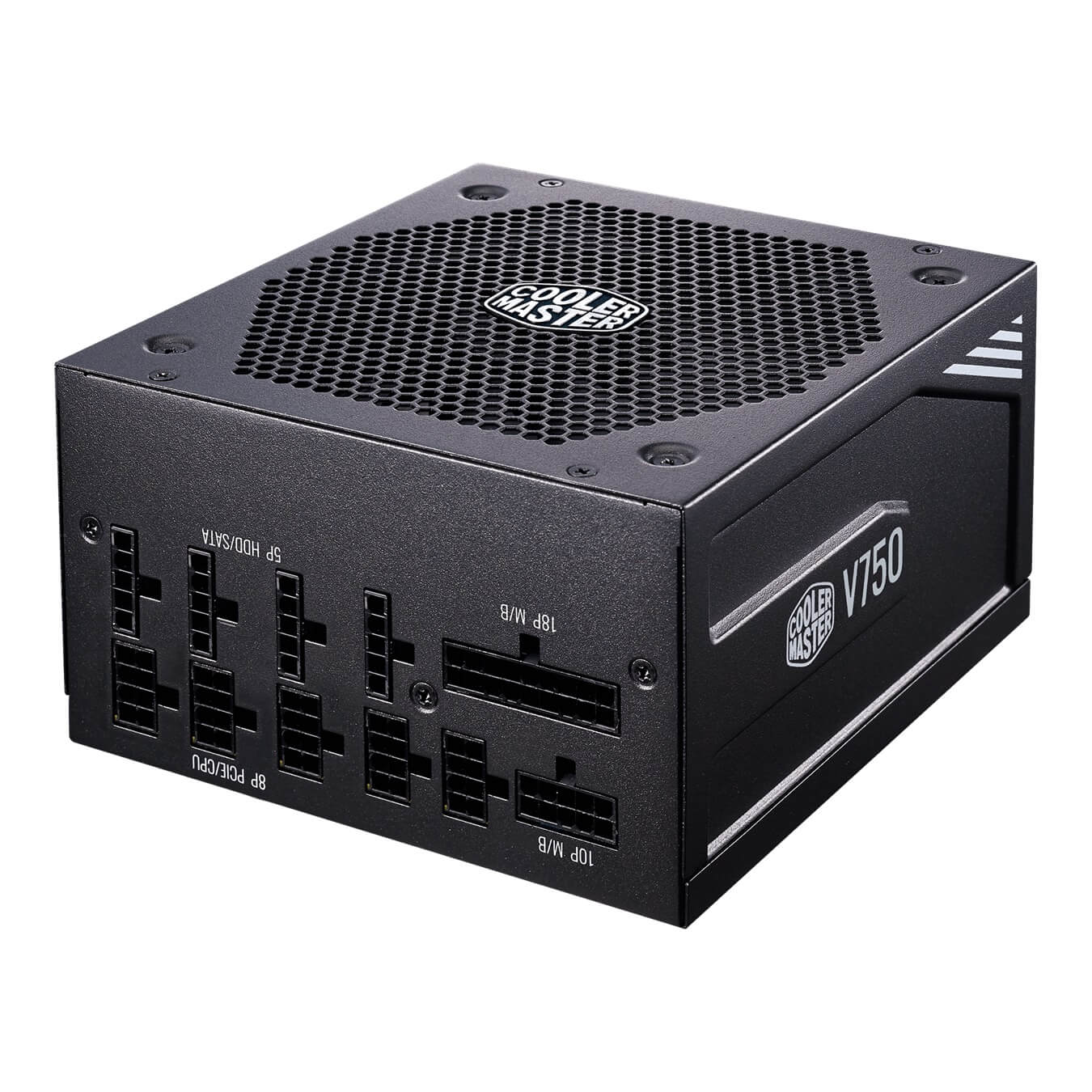

Full-modular Cabling

Cabling is often the most troublesome part of building a PC. The V Gold can't solve all your cabling problems but it's an excellent place to start. With full control and customization of your cables, you don't have to have excess cables cluttering your PC.

This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you'll get increases to both efficiency and style.

Model

MPY-750V-AFBAG

ATX Version

ATX 12V V2.52

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

135mm

Fan Bearing

FDB

Fan Speed

1545 RPM

Noise Level @ 20%

0 dBA

Noise Level @ 50%

23.6 dBA

Noise Level @ 100%

32.5 dBA

Efficiency

90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 - 500 ms

Hold Up Time

17ms

MTBF

>100,000 Hours

Protections

OVP, OPP, SCP, OCP, UVP, OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

12

Peripheral 4 Pin Connectors

4

PCI-e 6+2 Pin Connectors

4

Series

V Gold Series

80 Plus

Gold

Modular

Full Modular

Wattage

500 to 750W
