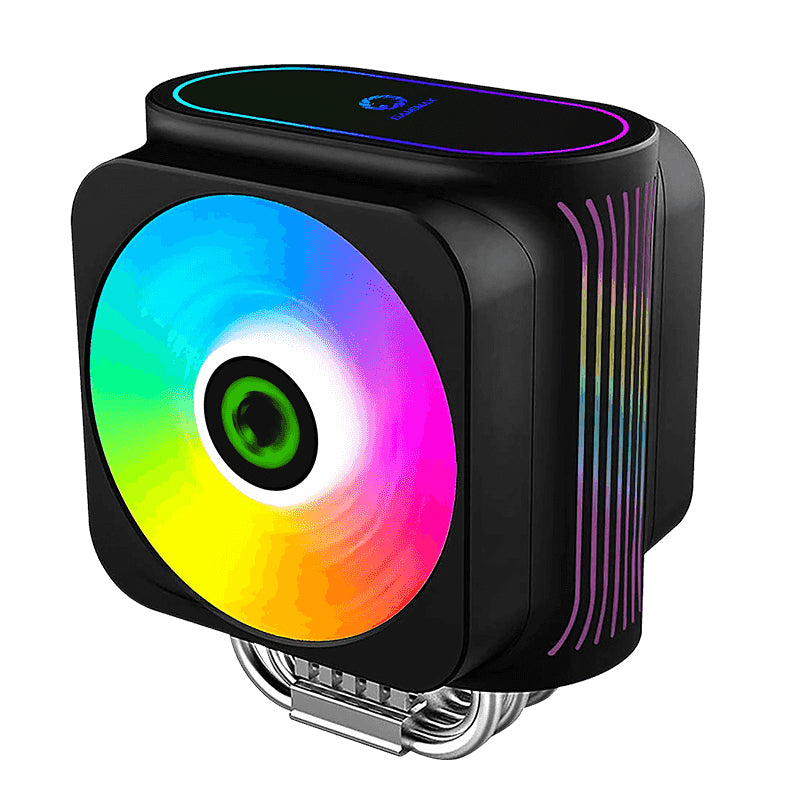

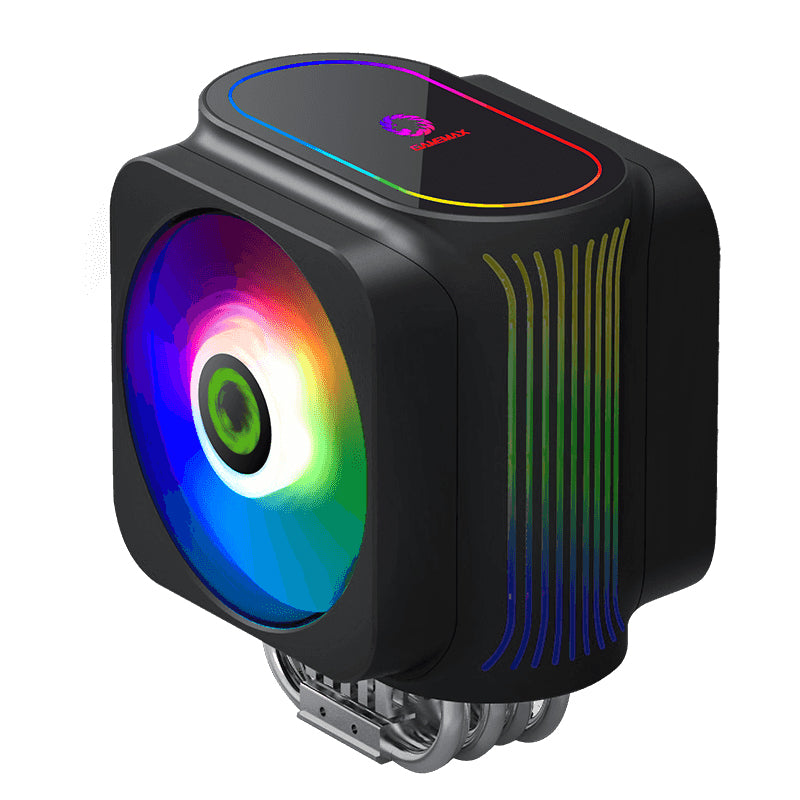

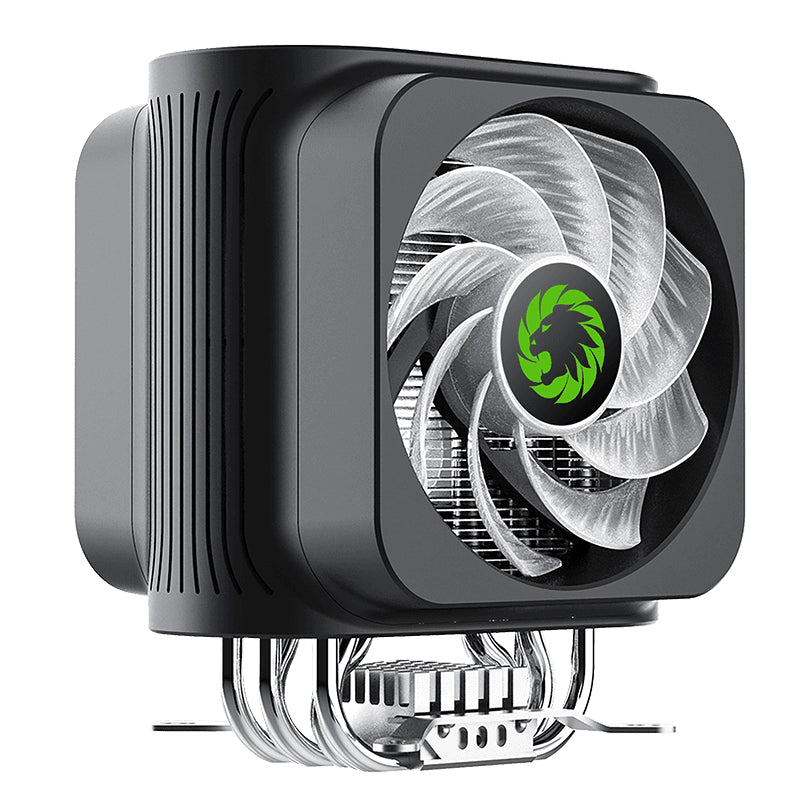

GameMax GAMMA 600 120MM RGB CPU Air Cooler

Single Tower Dual Silent Fan Setting Two full function 120mm 5V 3Pin addressable RGB, 12V 4Pin PWM fans adopt silentPro blades design to increase air convection efficiency.The automatic Fan speed at 1000~2000±10%RPM. 6 x different solid colors and 10 lighting modes controlled by HUB controller or SYNC with MB by unlimited changes.

E-sports Plexiglass Definable RGB LED Top Guard Top guard, syncs with ARGB Version, protects heat pipes from damage. Anti-oxidation protective layer for surface treatment, ensure light transmission and avoiding glare. Sync with the ARGB fan lights like rainbow, stylish and cool, full of personality.

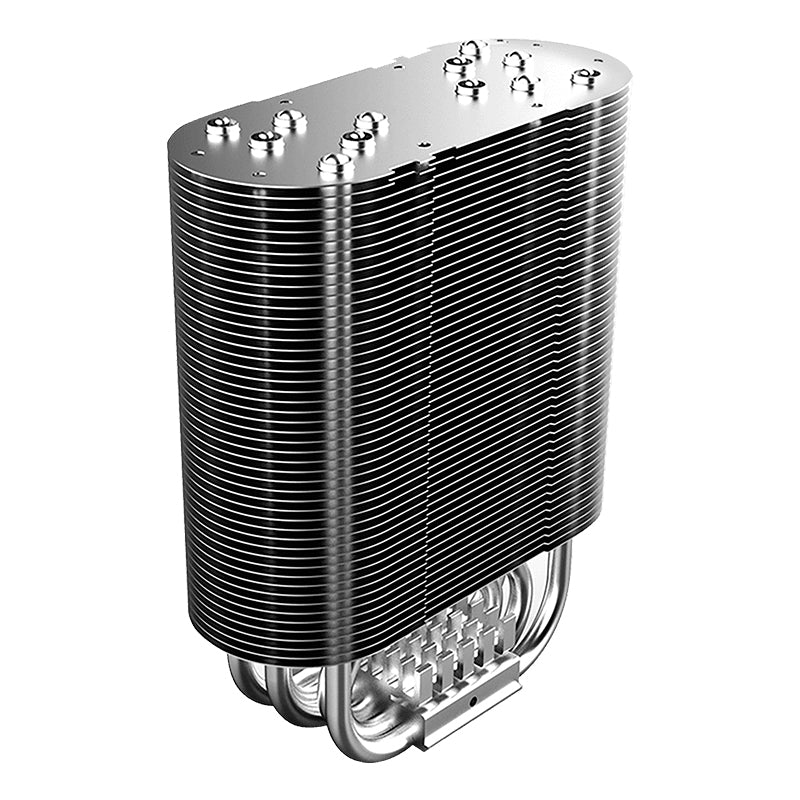

6 Heat Pipes Direct Touch and Super Heat Dissipation 230W TD 6 pcs 6mm nickel plating copper powder heat pipes U type for fast thermal conduction, 55x35mm aluminum base. The heat pipe is in direct contact with the CPU to achieve efficient and rapid heat transfer for maximum heat dissipation. TDP is up to 230W.

Specifications:

TDP

230W

Overall Dimension

135(L)X105(W)X160(H)mm

Heatsink Material

Aluminum

Heat Base Material

55X35mm Aluminum Base with HDT(Heat pipes Direct

Heat Pipes

6X6mm Copper powder heat pipes U type

Surface Treatment

Anti-oxidation Protective Layer

Weight/Loading

910g   605*395*260mm     10Pcs /CTN

RGB Version

AURA 5V 3Pin addressable

Fan Dimension

120×120×25mm

Included Fans

2pcs

Fan Speed

1000~2000±10%RPM

Max. Air Flow

72CFM

Max. Static Pressure

2.36mmH2O

Noise

8~29.1dB(A)

Rated Voltage

12VDC

Operating Voltage

8~13.2VDC

Started Voltage

7.5VDC

Rated Current

2*0.22~0.39A(Fan Moto)+2*0.3A(RGB)+0.2A(RGB)

powder Input

Single fan:4.7W+1.5W; Top guard RGB: 1.5W

Bearing Type

Hydraulic Bearing

CPU Compatibility

Intel full series  LGA2066/2011/1200/1150/1151/1155/1156/775/1366

AMD AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
