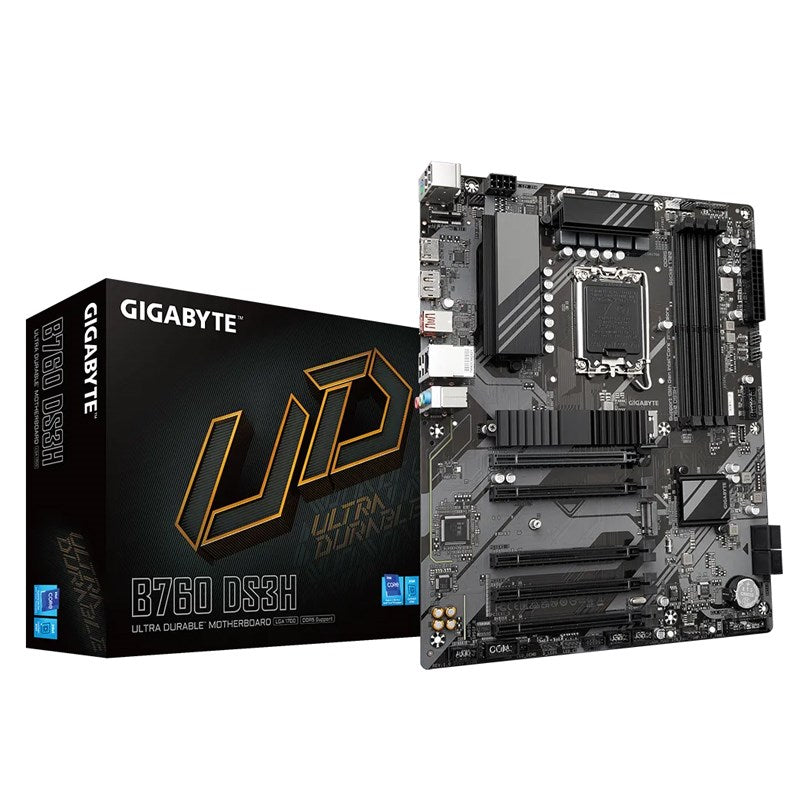

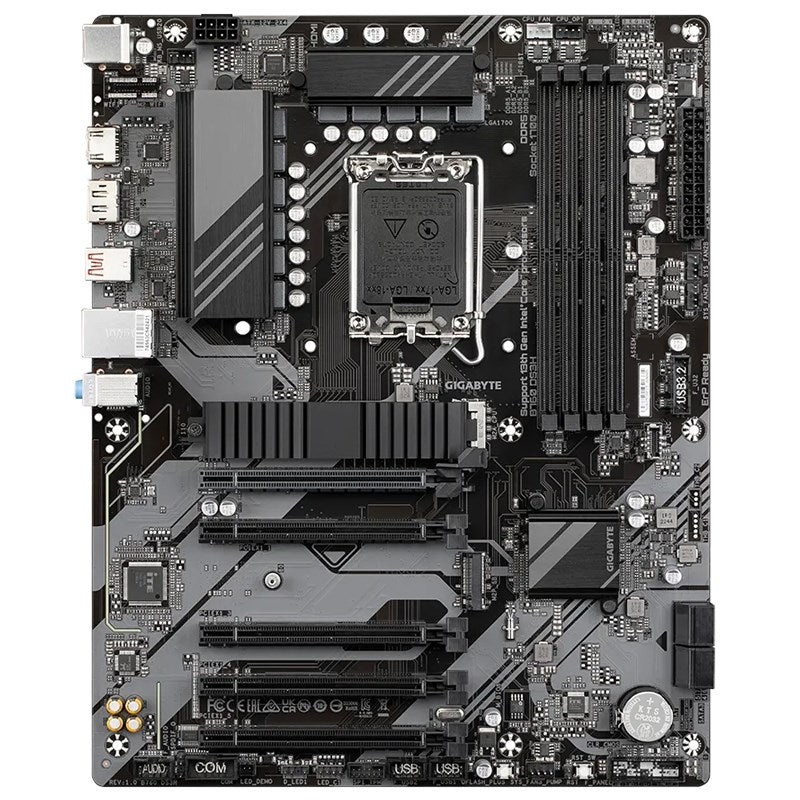

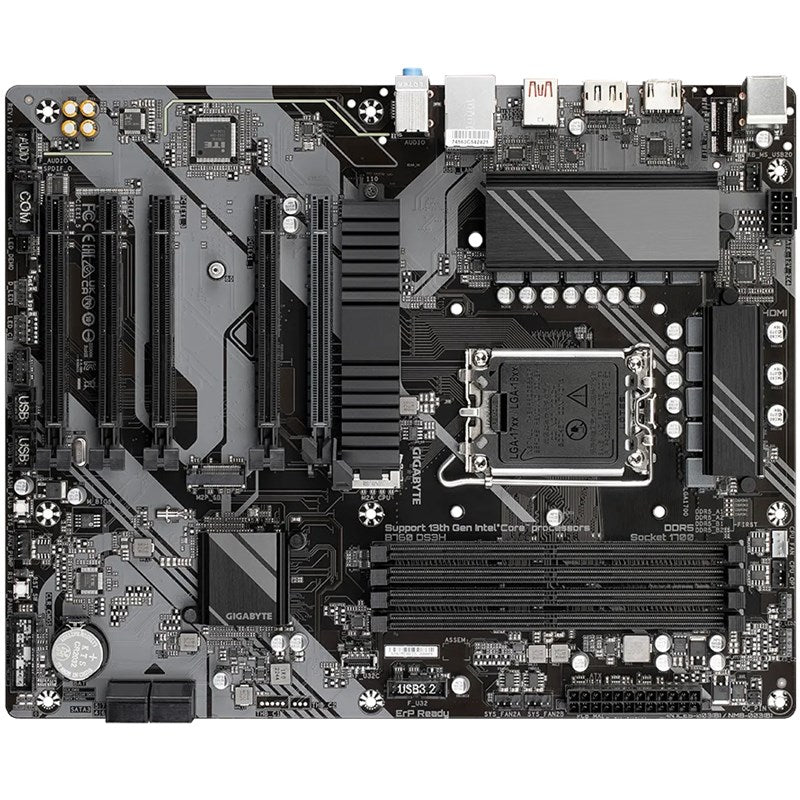

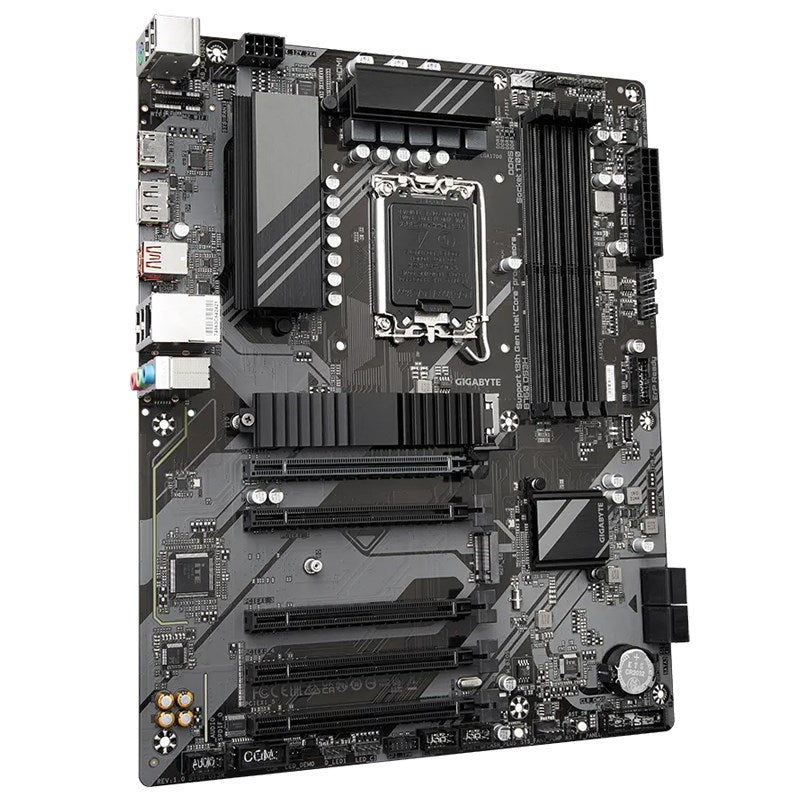

Gigabyte B760 DS3H (rev. 1.0) ATX Gaming Motherboard

Product SKU: B760 DS3H DDR5

Was :

44.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports Intel Core 14th/ 13th /12th processors

Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution

Dual Channel DDR5: 4*DIMMs XMP Memory Module Support

Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors

EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design

Fast Networks: GbE LAN

Extended Connectivity: Rear USB-C® 20Gb/s, DP, HDMI

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Gigabyte B760 DS3H (rev. 1.0) ATX Gaming Motherboard

Specifications:

CPU	1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
	2. L3 cache varies with CPU
Chipset	1. Intel® B760 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
	(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	2. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
	2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
	5. 4 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x CPU fan/water cooling pump header
	5. 3 x system fan headers
	6. 1 x system fan/water cooling pump header
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 2 x M.2 Socket 3 connectors
	10. 4 x SATA 6Gb/s connectors
	11. 1 x front panel header
	12. 1 x front panel audio header
	13. 1 x S/PDIF Out header
	14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
	15. 1 x USB 3.2 Gen 1 header
	16. 2 x USB 2.0/1.1 headers
	17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	18. 1 x serial port header
	19. 1 x Q-Flash Plus button
	20. 1 x reset button
	21. 1 x reset jumper
	22. 1 x Clear CMOS jumper

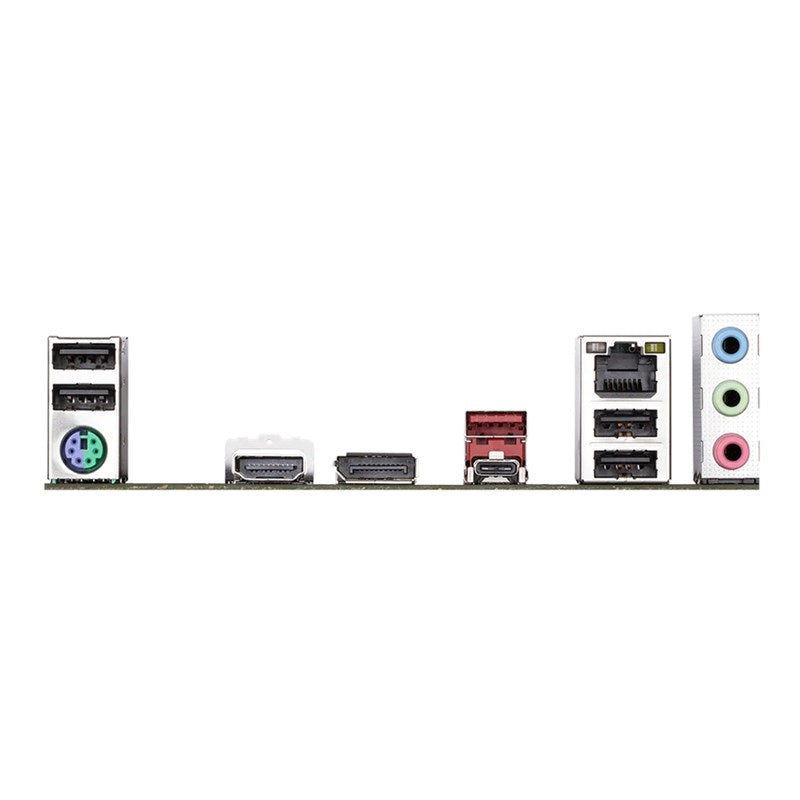

Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
	3. 1 x USB 3.2 Gen 2 Type-A port (red)
	4. 4 x USB 2.0/1.1 ports
	5. 1 x HDMI port
	6. 1 x DisplayPort
	7. 1 x RJ-45 port
	8. 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm
