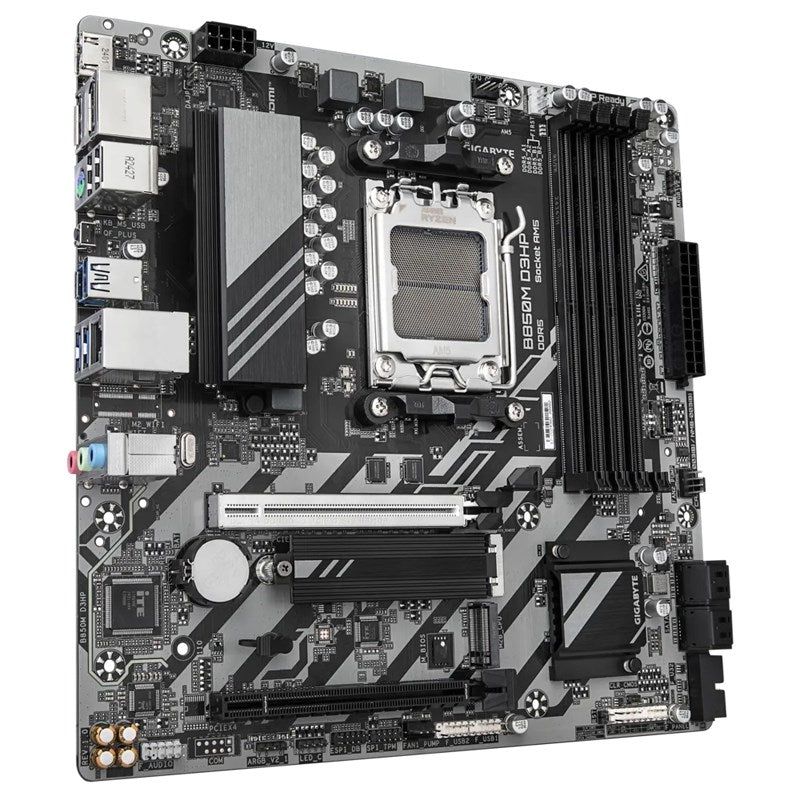

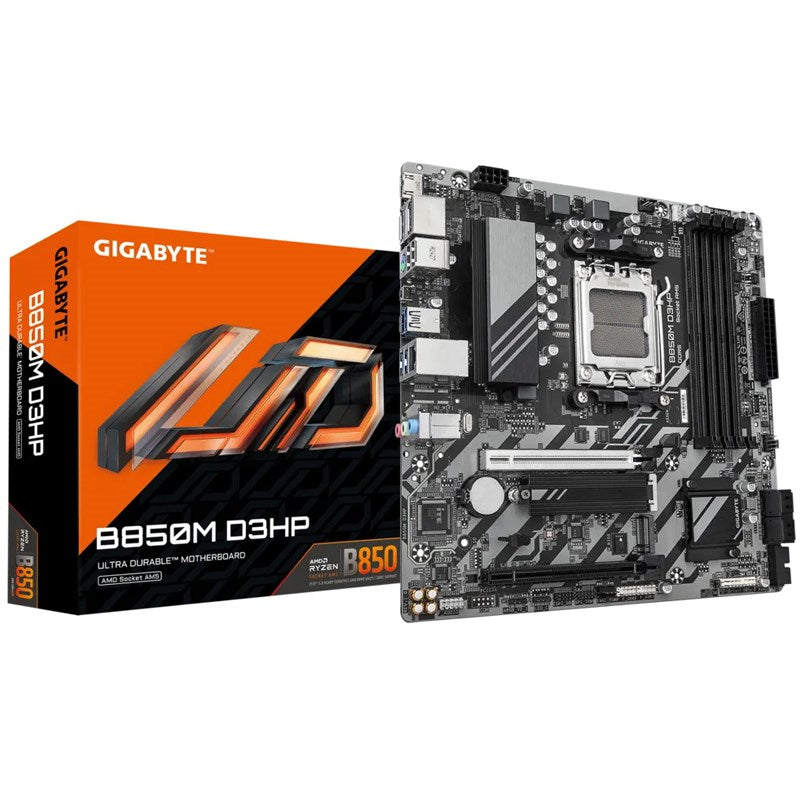

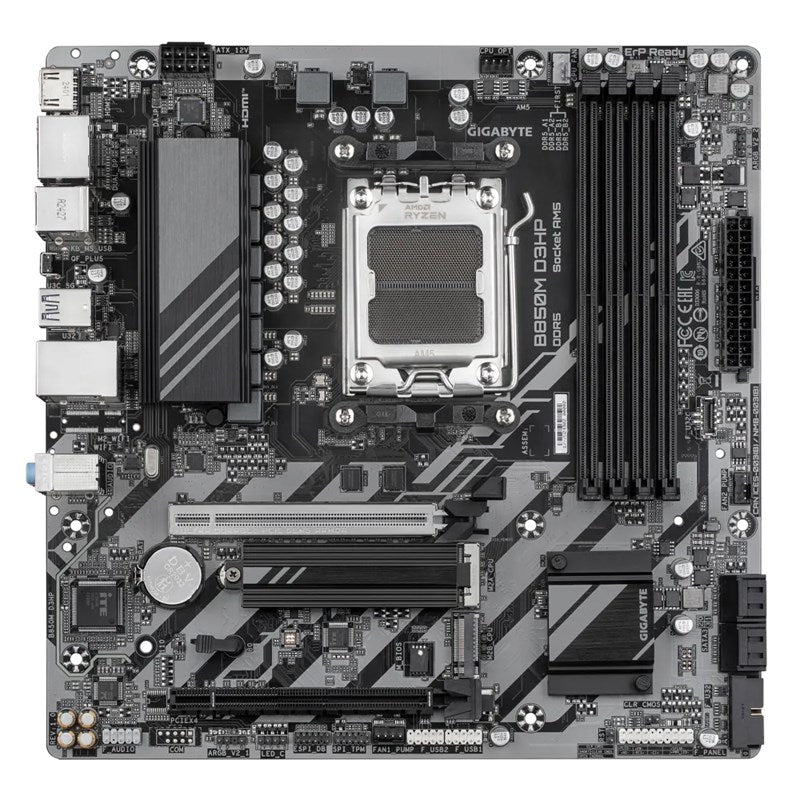

GIGABYTE B850M D3HP AM5 DDR5 M-ATX Gaming Motherboard

GIGABYTE

GIGABYTE B850M D3HP AM5 DDR5 M-ATX Gaming Motherboard

Name: GIGABYTE B850M D3HP AM5 DDR5 M-ATX Gaming Motherboard
Brand: GIGABYTE
SKU: B850M D3HP
Price: 47.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: B850M D3HP

Was :

47.000 KD

Quantity

Low stock

5 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

X3D Turbo Mode to unleash new era gaming performance

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital 5+2+2 phases VRM solution

Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support

EZ-Latch: PCIe x16 Slot with Quick Release Design

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4

Fast Networking: GbE LAN

Extended Connectivity: 2*DP, HDMI

B850M D3HP

Specifications:

CPU	AMD Socket AM5, support for:
	AMD Ryzen™ 9000 Series Processors/
	AMD Ryzen™ 8000 Series Processors/
	AMD Ryzen™ 7000 Series Processors
Chipset	AMD B850
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
	- 1 x USB 3.2 Gen 1 port on the back panel
	- 1 x USB 2.0/1.1 port on the back panel
Chipset:	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x reset jumper
	1 x Clear CMOS jumper

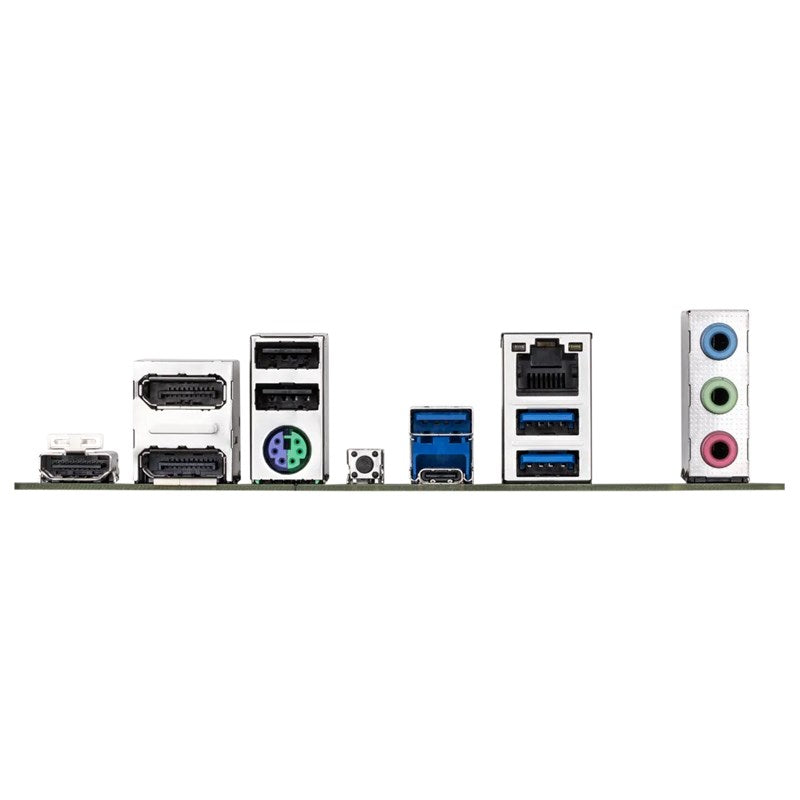

Back Panel Connectors	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x PS/2 keyboard/mouse port
	1 x Q-Flash Plus button
	1 x USB Type-C® port, with USB 3.2 Gen 1 support
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
