Gigabyte X870E AORUS ELITE WIFI 7 ATX Gaming Motherboard

Product SKU: X870E A ELITE WIFI7

Was :

119.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

Digital twin 16+2+2 phases VRM solution

Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click: M.2 heatsinks with screwless design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI

Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors

Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Gigabyte X870E AORUS ELITE WIFI 7 ATX Gaming Motherboard

Specifications:

CPU	AMD Socket AM5, support for:
	AMD Ryzen™ 9000 Series Processors/
	AMD Ryzen™ 8000 Series Processors/
	AMD Ryzen™ 7000 Series Processors
	(Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD X870E
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
	- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
	* Support for DisplayPort 1.4 version and HDR.
	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	** Support native HDMI 2.1 TMDS compatible ports.
	- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	* Support for HDMI 1.4 version
	(Graphics specifications may vary depending on CPU support.)
	Support for up to quad-display at the same time
Audio	Realtek® ALC1220 CODEC
	* The back panel line out jack supports DSD audio.
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
	* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
	When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
	1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU+ASMedia USB4® controller:
	- 2 x USB4® USB Type-C® ports on the back panel
	CPU:
	- 1 x USB 3.2 Gen 1 port on the back panel
	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
	2 x USB 3.2 Gen 1 headers
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Note)
	1 x power button
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

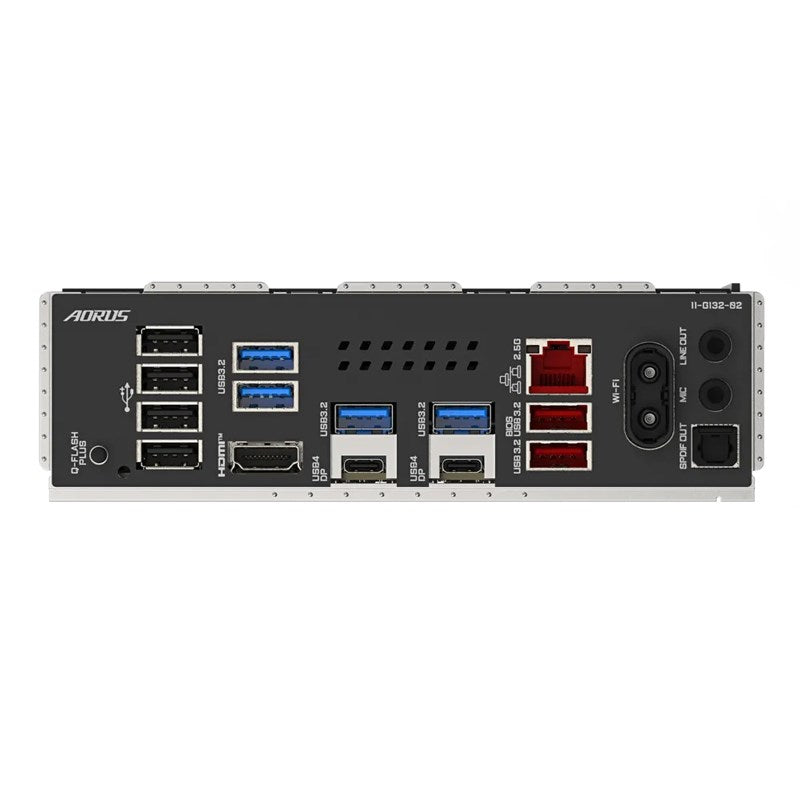

Back Panel Connectors	1 x Q-Flash Plus button
	4 x USB 2.0/1.1 ports
	4 x USB 3.2 Gen 1 ports
	1 x HDMI port (Note)
	2 x USB4® USB Type-C® ports (DisplayPort (Note))
	1 x RJ-45 port
	2 x USB 3.2 Gen 2 Type-A ports (red)
	2 x antenna connectors (2T2R)
	2 x audio jacks
	1 x optical S/PDIF Out connector
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
	Noise detection
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support Smart Backup
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
