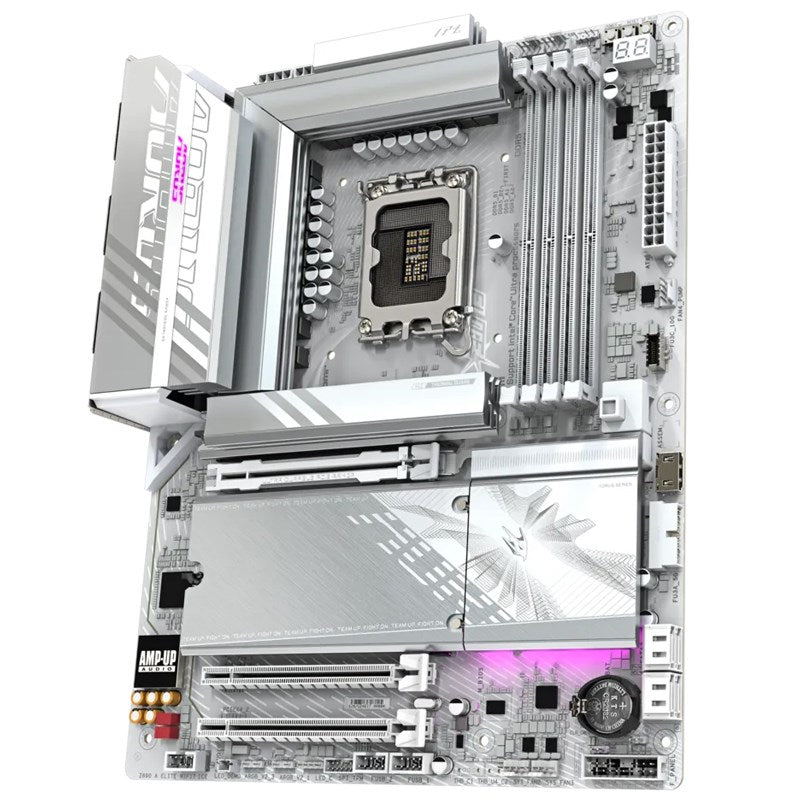

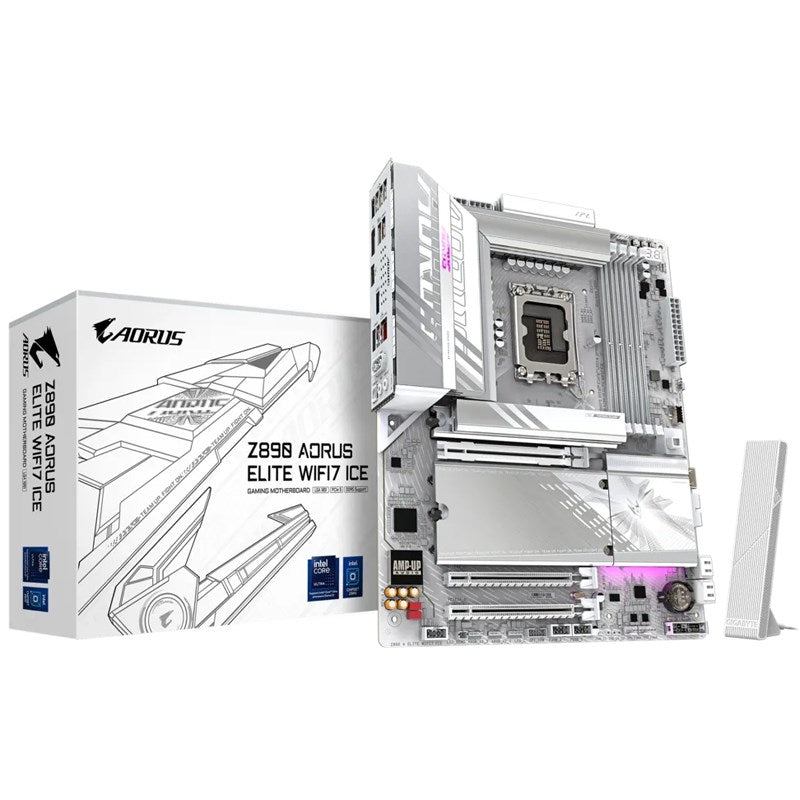

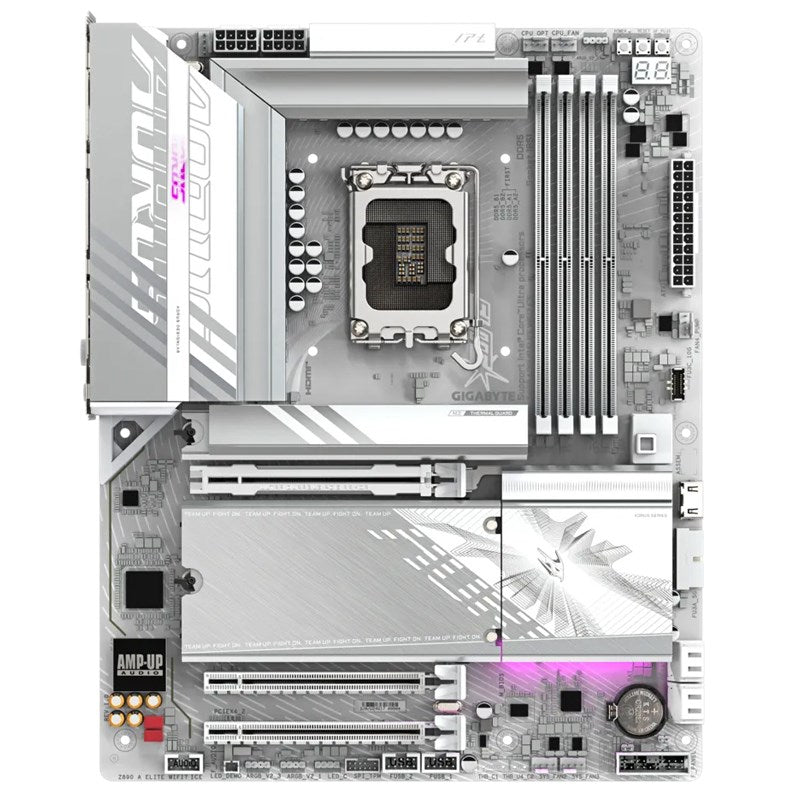

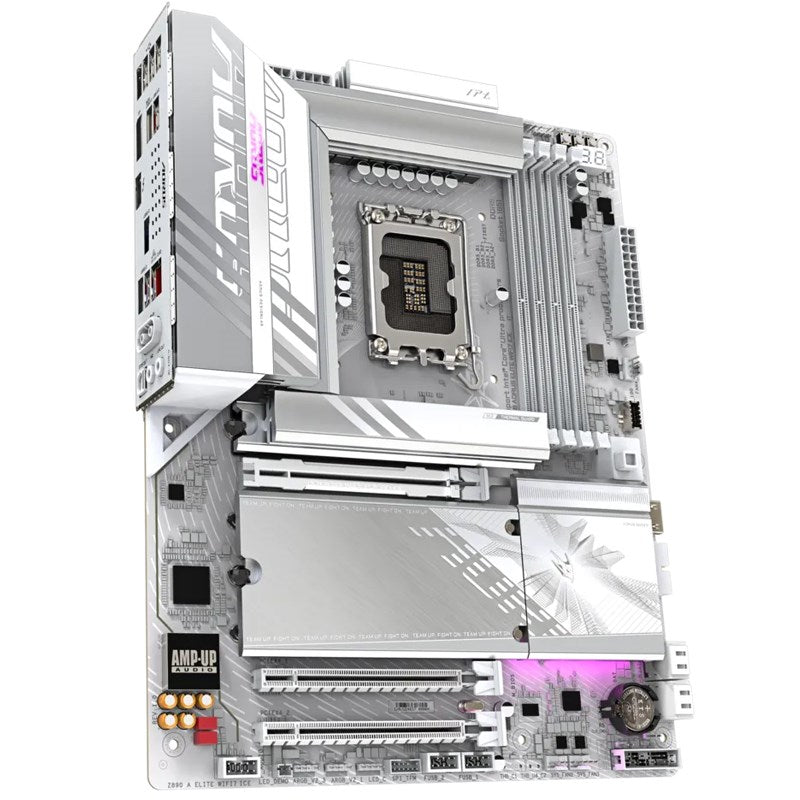

Gigabyte Z890 AORUS ELITE WIFI 7 ICE ATX Gaming Motherboard

Gigabyte

Gigabyte Z890 AORUS ELITE WIFI 7 ICE ATX Gaming Motherboard

Name: Gigabyte Z890 AORUS ELITE WIFI 7 ICE ATX Gaming Motherboard
Brand: Gigabyte
SKU: Z890 A ELITE WF7 ICE
Price: 106.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: Z890 A ELITE WF7 ICE

Was :

106.000 KD

Quantity

Low stock

2 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports Intel Core Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AI Perfdrive: Provides optimal and customized BIOS preset profile for users

Premium Compatibility: 4*DDR5 with XMP Memory Module Support

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click: M.2 heatsinks with screwless design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

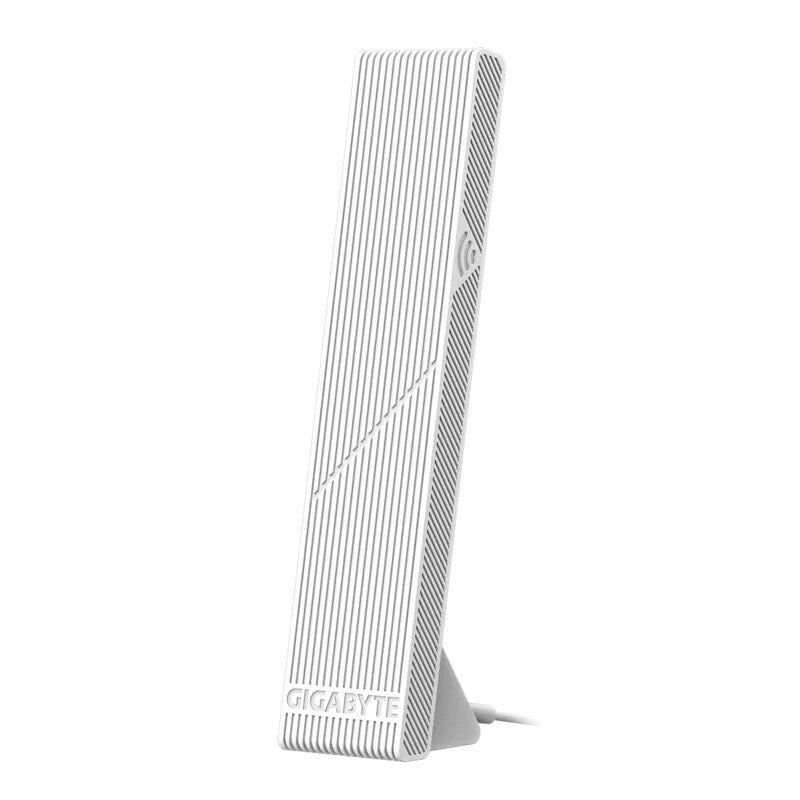

Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity: THUNDERBOLT 4 Type-C with DP-Alt, DisplayPort

High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors

Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Z890 AORUS ELITE WIFI7 ICE

Designed for the Intel Core Ultra Series 2 processors, the Gigabyte Z890 AORUS ELITE WIFI7 ICE LGA 1851 ATX Motherboard features the LGA 1851 socket and Intel Z890 chipset for optimal performance. The motherboard has a 16+1+2 twin digital VRM design. With four DDR5-5600 slots, one PCIe 5.0 x16 slot, two PCIe 4.0 x4 slots, four M.2 slots, and four SATA slots, you'll be able to build a powerful gaming PC. With EZ-Latch, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast 2.5GbE LAN and Wi-Fi 7 (802.11be).

AORUS AI SNATCH

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds. Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

2.5GbE LAN

Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you'll be able to elevate your gaming rig for online competition.

EZ-Latch Designs

PCIe EZ-Latch Plus

Easy ejection with a single slick for graphics cards

M.2 EZ-Latch Click

Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus

Tool-less installation for M.2 SSDs

Additional Key Features

Supports Intel Core Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for infinite memory performance

Specifications:

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	Support CUDIMM memory module
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
	When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
	When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
	* Support for DisplayPort 2.1 version and HDCP 2.3
	- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
	* Support for HDMI 1.4 version
	- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 2.1 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	Realtek® ALC1220 CODEC
	* The back panel line out jack supports DSD audio.
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
	- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.4
	- Support for 11be 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
	** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
	USB
	CPU:
	- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
	*Support up to 40Gbps with Thunderbolt devices
	*Support up to 20Gbps with USB4 devices
	*Support up to 10Gbps with USB 3.2 devices
	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x HDMI port (Note)
	1 x power button
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
	(Note) Actual support may vary by CPU.

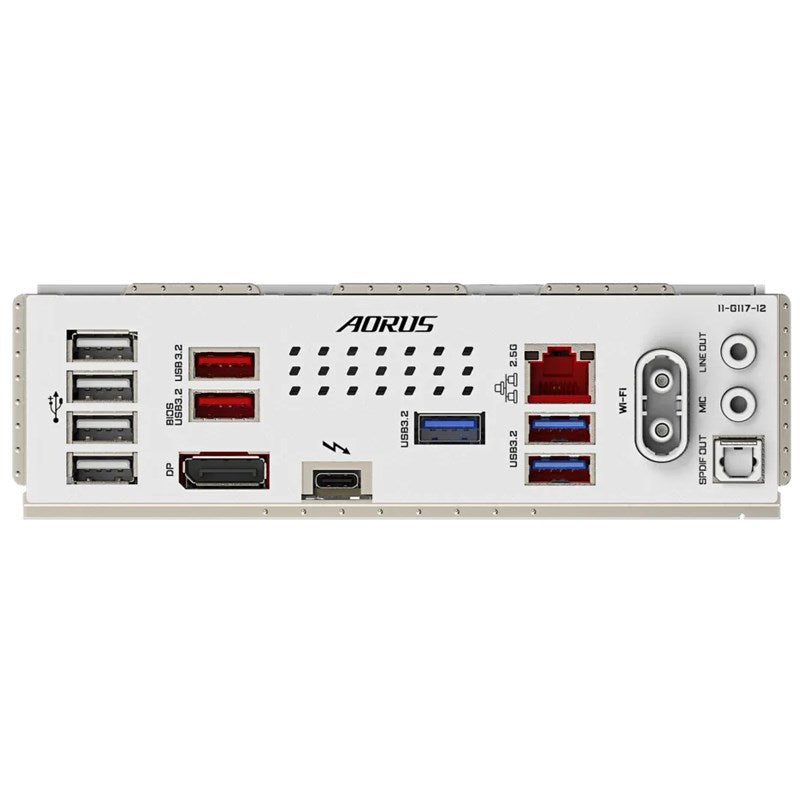

Back Panel Connectors	1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
	2 x USB 3.2 Gen 2 Type-A ports (red)
	3 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	2 x antenna connectors (2T2R)
	1 x DisplayPort (Note)
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Available deliveries in Kuwait

1. Delivery within 29 Minutes - 5 KWD

2. Ultra Express (delivery within 1 hour) - 4.5 KWD

3. Super Express (delivery within 2 hours) - 2.5 KWD

4. Express Delivery (delivery within 4 hours) - 2 KWD

5. Same-Day Delivery (delivery within 24 hours) - 1.5 KWD

6. Next Day Delivery - 1 KWD

7. Within 2 Working Days - 1 KWD

Please note: Express deliveries are subject to limited areas and time bound. The available delivery option will be visible at final checkout.
