JONSBO MOD-4 ATX E-Sports Desktop Computer Open Cool Case

The Handle Up

The Best Part Is That With The Handle Up, The Mod4 Is Reminiscent Of A Rabbi With Pointy Ears. It Measures 249 X 564 X 477mm (Wxdxh) And Weighs 19.8 Pounds (9kg), Partially Due To Those Glass Panels.

Room For An ATX Motherboard

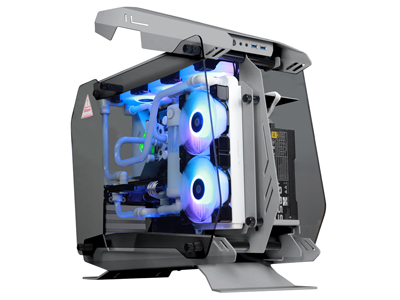

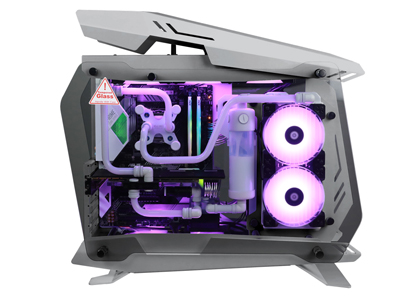

Inside The Chassis Is Room For An Atx Motherboard And A Bunch Of Water-Cooling Gear, With Space For A Total Of Two 240mm Radiators (On The Bottom And Next To The Motherboard) And One 360mm Radiator At The Top.

CPU Coolers Can Be Up To 165mm Tall

Along With Their Respective Fans, Which Isn’t That Lavish, But Few People Have To Need To Exceed That Length. And If You Go The Water Cooling Route, Cpu Coolers Can Be Up To 165mm Tall, Graphics Cards Can Be Up To 320mm Long.

Motherboard

ITX; M-ATX; ATX

CPU Cooler

Height up to 165mm

Display Card

Length up to 320mm

Drive Bay

2.5SSD 3+3.5HDD 2 / bracket is compatible with 3.5 HDD / 2.5 SSD

Front I/O Port

USB 3.0×2/AUDIO×1/MIC×1

Cooling System

Top: 3×120mm Fan (Optional)      Fan Fixing Plate:120mm 2 Fan(Optional)      Bottom:120mm 2 Fan(Optional).

Power Supply

Standard ATX、the length of PSU should be within 160mm/ By removing The 1HDD bracket the length can be increased to 180mm.

Expansion Slot

7

Liquid Cooler

240/360

Weight

Net 9kg

Dimension

249mm(W)×564mm(D)×477mm(H)
