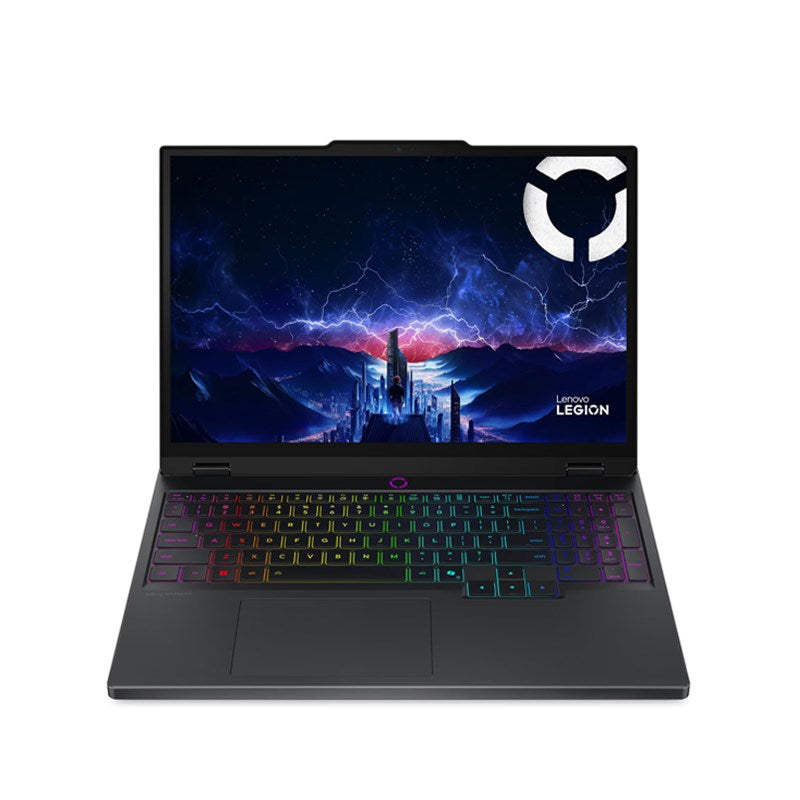

Lenovo Legion 5 15RX10 Intel Core i9-14900HX, 24C AI PC, 15.1" WQXGA, 2x16 GB DDR5-5600 RAM, 1 TB M.2 2242 SSD, NVIDIA RTX 5070 8 GB GDDR7, Boost Clock 2347 MHz, TGP 115W, 798 AI TOPS, DOS, English (UK), 1 Year Warranty - Black

Lenovo Legion 5 15RX10 Intel Core i9-14900HX, 24C AI PC, 15.1" WQXGA, 2x16 GB DDR5-5600 RAM, 1 TB M.2 2242 SSD, NVIDIA RTX 5070 8 GB GDDR7, Boost Clock 2347 MHz, TGP 115W, 798 AI TOPS, DOS, English (UK), 1 Year Warranty

Intel Core i9 24-Core Performance

Powered by the Intel Core i9-14900HX processor to handle elite gaming, multitasking, and demanding applications.

Next-Gen RTX 50-Series Graphics

Equipped with the NVIDIA GeForce RTX 5070 (8 GB GDDR7) featuring a 2347 MHz boost clock, 115W TGP, and 798 AI TOPS for advanced ray tracing and AI rendering.

High-Speed Memory & Storage

Configured with 32 GB of dual-channel DDR5-5600 RAM (2x16 GB) and a fast 1 TB M.2 2242 solid-state drive.

15.1" WQXGA Display

Features a high-resolution WQXGA screen designed for sharp, fluid visuals.

Optimized Input

Built with an English (UK) keyboard layout for comfortable typing and gaming.

DOS Operating System

Preloaded with DOS, providing a clean platform for custom software and OS deployments.

Key Features

• Intel Core i9 24-Core Performance

• High-Speed Memory & Storage

• 15.1" WQXGA Display

• Optimized Input

• DOS Operating System

Processor

Intel Core i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36 MB Intel Smart Cache

AI PC Category

AI-Powered Gaming PC

NPU

None

Graphics

NVIDIA GeForce RTX 5070 8 GB GDDR7, Boost Clock 2347 MHz, TGP 115W, 798 AI TOPS

Chipset

Intel HM770 Chipset

Memory

2x 16 GB SODIMM DDR5-5600

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Max Memory

Up to 32 GB DDR5-5600 offering

Storage

1 TB SSD M.2 2242 PCIe 4.0x4 NVMe

Storage Slot

Two M.2 2280 PCIe 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1 TB each

Optical

None

Card Reader

No Card Reader

Audio Chip

High Definition (HD) Audio, Realtek ALC3287 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone

2x, Array

Camera

5.0MP with E-shutter

Battery

80Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA1

Display

15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision, DisplayHDR True Black 600

Touchscreen

None

Screen-to-Body Ratio

OLED models: 90% AAR (active area ratio)

Color Calibration

Factory Color Calibration

Pen

Pen Not Supported

Keyboard

24-Zone RGB Backlit, English (UK)

Touchpad

Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72")

Weight

Starting at 1.9 kg

Case Color

Eclipse Black (with 24-Zone RGB Backlit Keyboard)

Case Material

Aluminium (Top), PC-ABS + 15% Talc (Bottom)

Surface Treatment

Aluminium Stamping (Anodized with Sandblasting)

WLAN + Bluetooth

Wi-Fi 7, 802.11be 2x2 + BT5.4

WWAN

WWAN Not Supported

Ethernet

100/1000M (RJ-45)

Standard Ports

2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 95-100W and DisplayPort 2.1

1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4

1x HDMI 2.1, up to 8K/60 Hz

1x Headphone / microphone combo jack (3.5mm)

1x Ethernet (RJ-45)

1x Slim tip Power connector

Docking

Various docking solutions supported via USB-C
