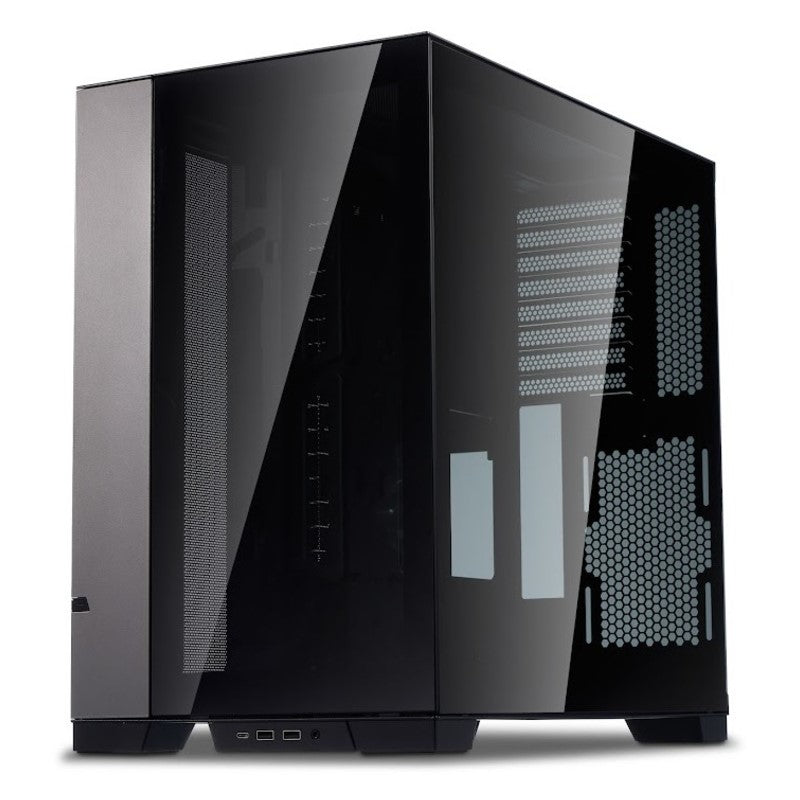

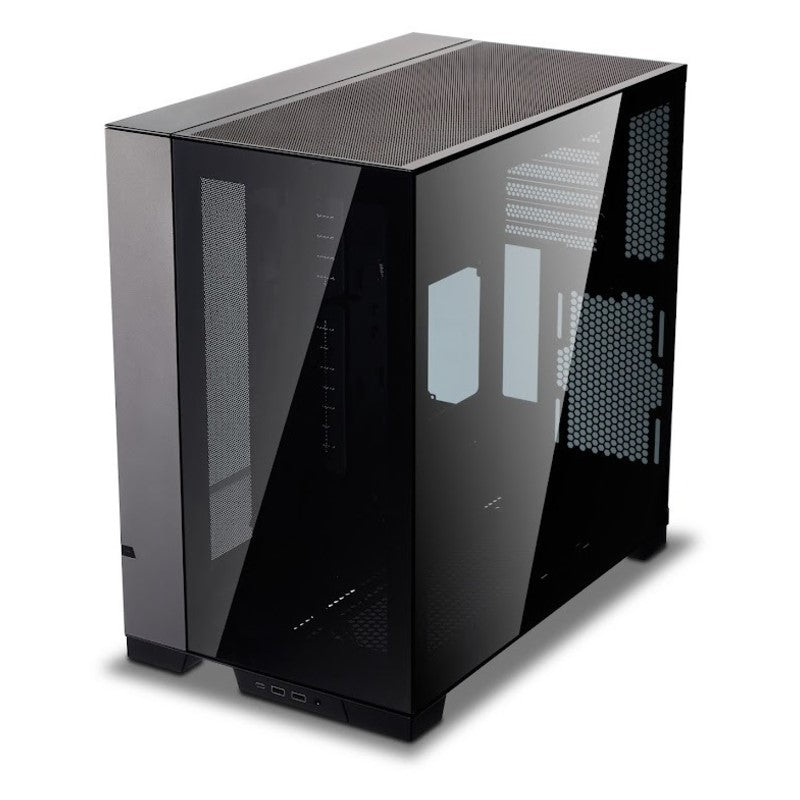

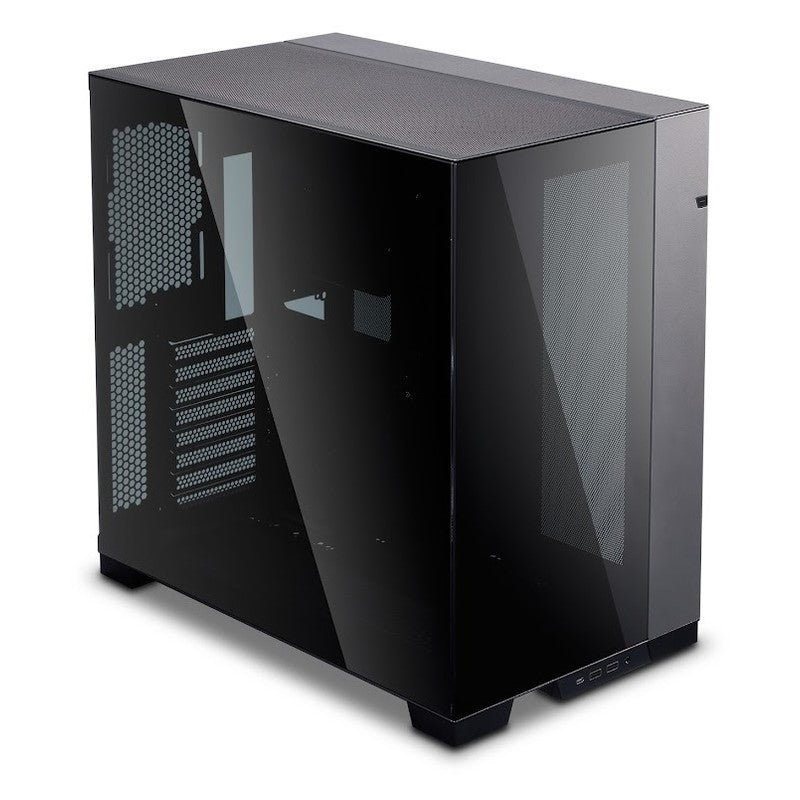

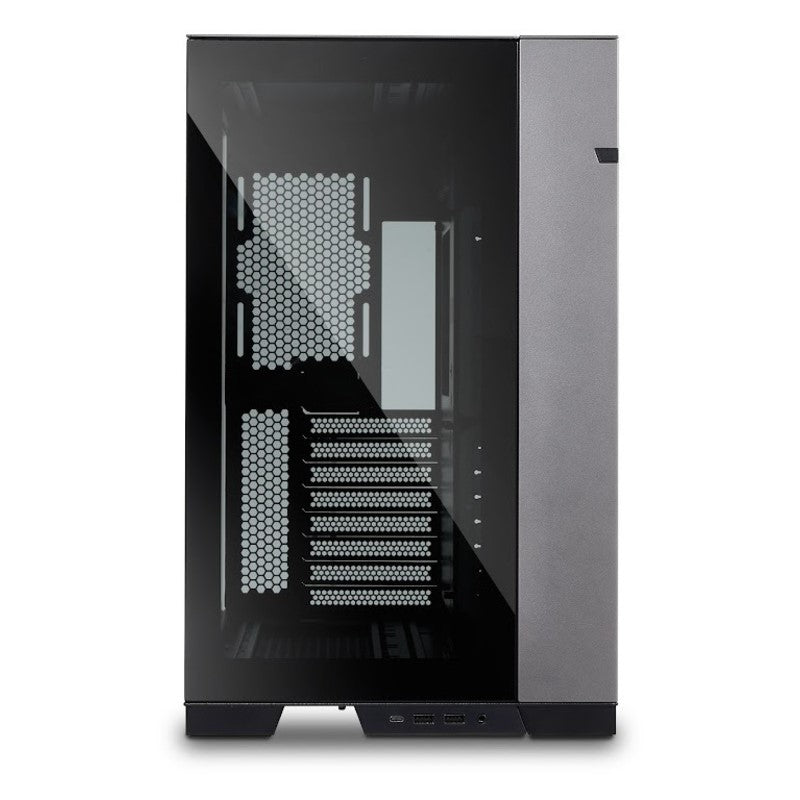

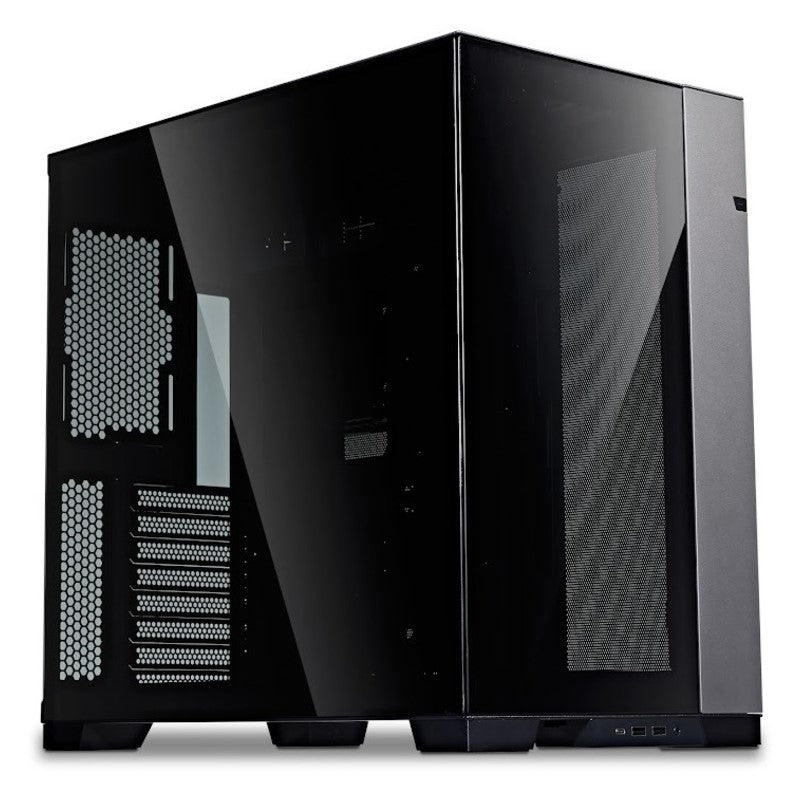

LIAN LI O11D EVO Mid Tower Case - Silver

Additional I/O Ports

Double the number of USB ports for a total of 4 × USB 3.0 Type-A and 2 × USB 3.1 Type-C with the additional accessory.

Exquisite, Yet Functional

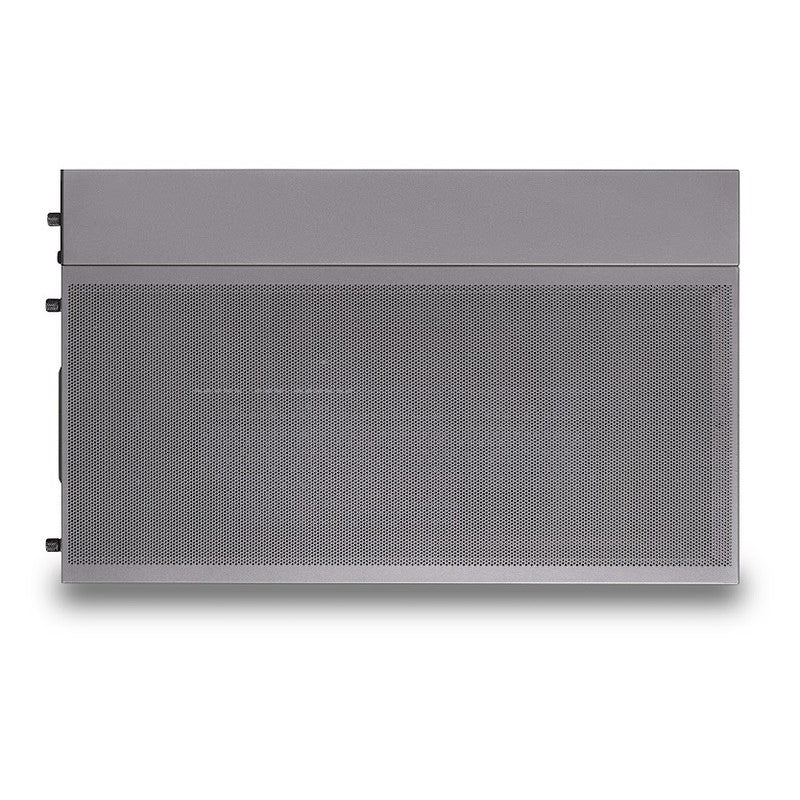

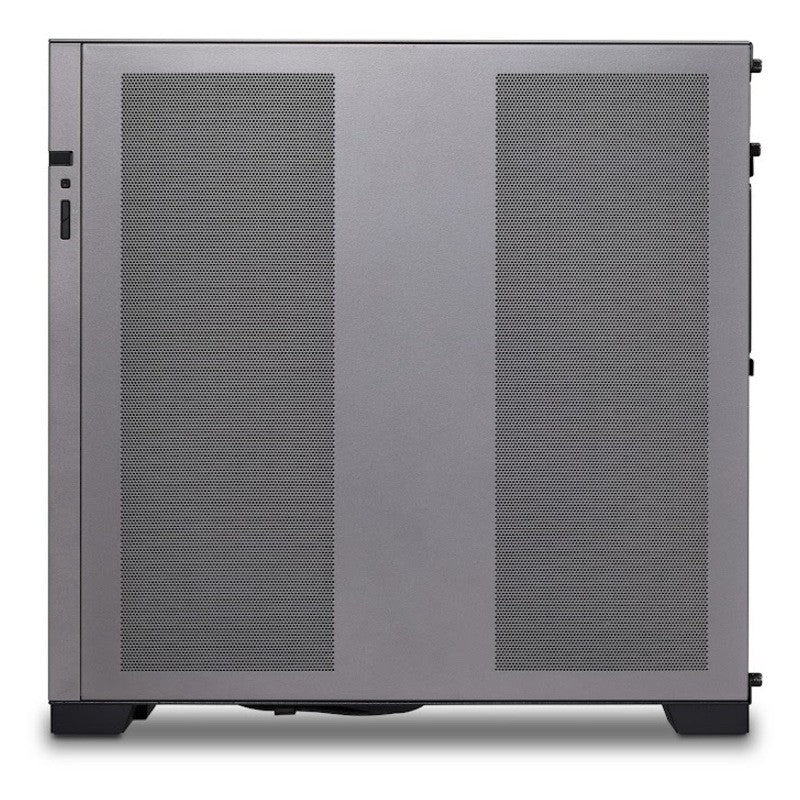

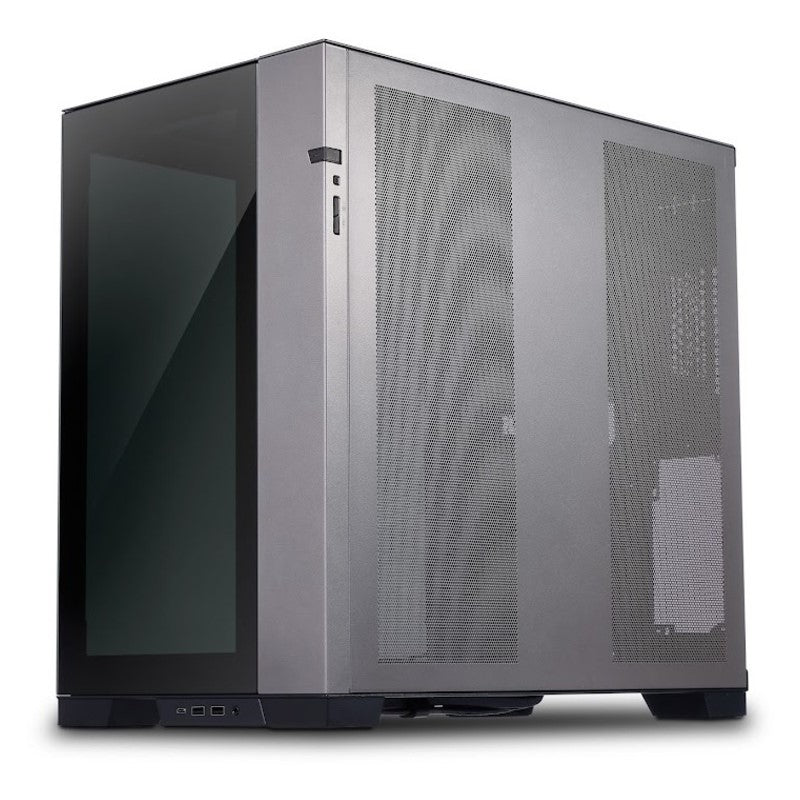

Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

Air Cooling

The more direct the airflow, the better the cooling performance. Thanks to the upright GPU kit and the front mesh kit, which makes the addition of 3 extra fans at the front possible, the O11D EVO can provide powerful and direct airflow to the GPU and the CPU.

Upgraded Vertical GPU airflow

The upgraded vertical GPU kit provides more room for bottom-mounted fans and radiators to increase the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.

Supreme Thermal Control

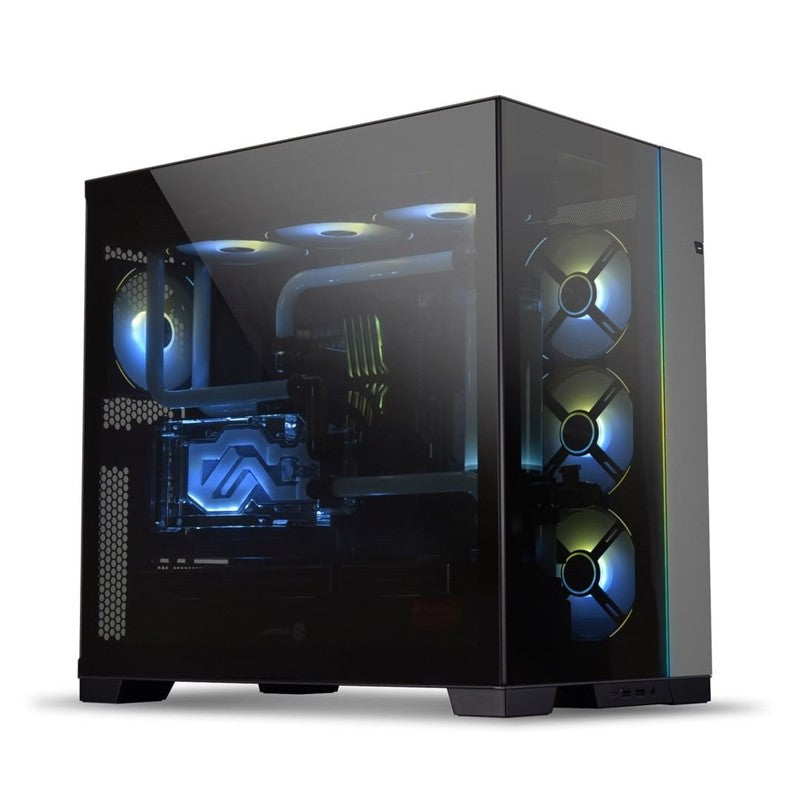

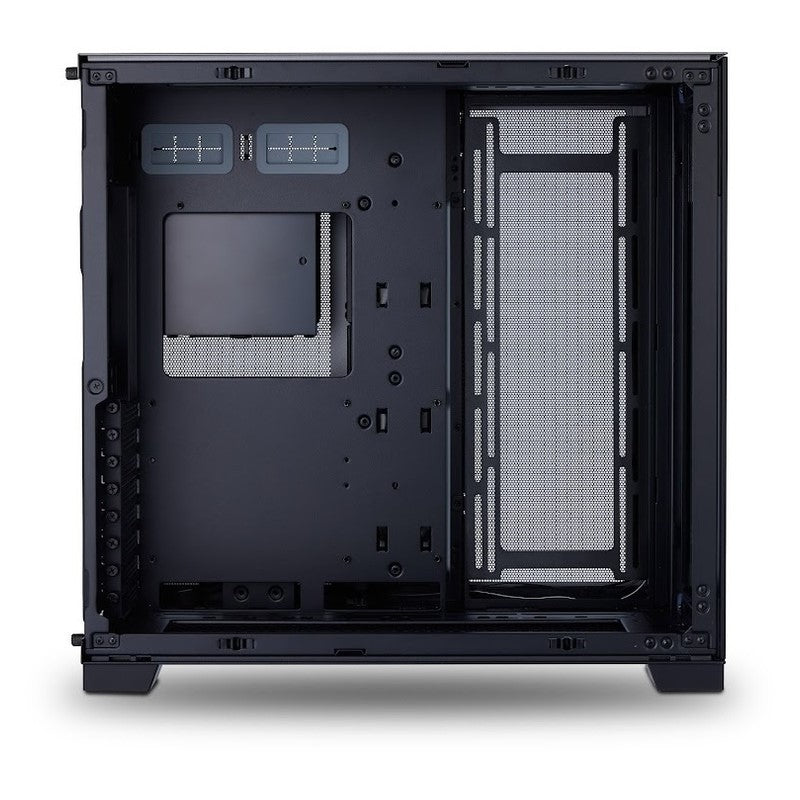

With the upright GPU kit, users can move their water-cooled GPU next to the motherboard. This opens up the main chamber of the chassis, allowing simpler and more efficient tube runs to reach the components, and creating a restriction-free chimney-style airflow that allows the top and bottom radiators to perform more effectively.

Personalized RGB Lighting Strip

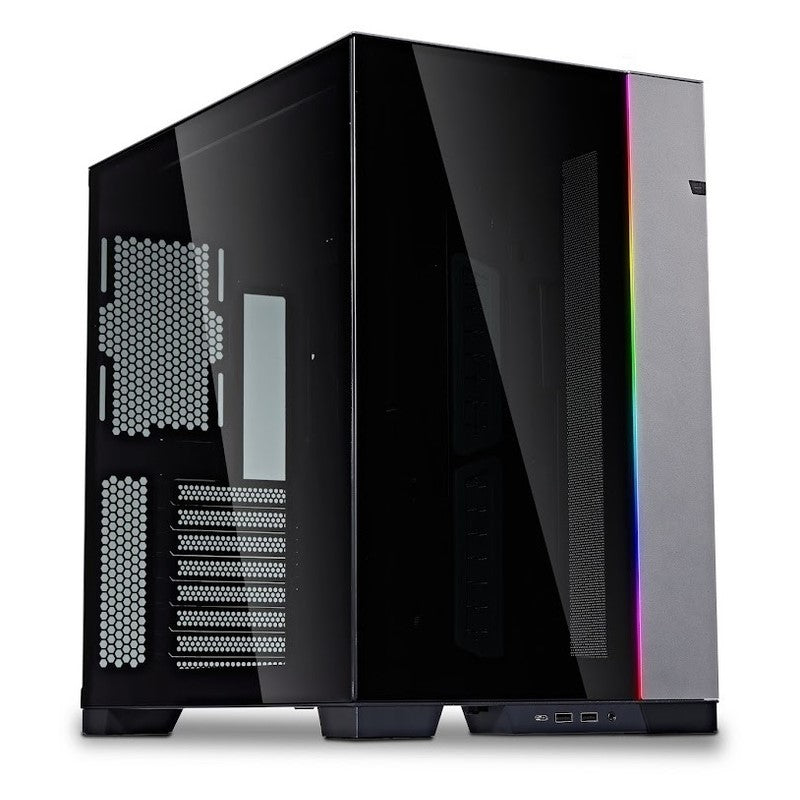

The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.

Easily Removable Panels

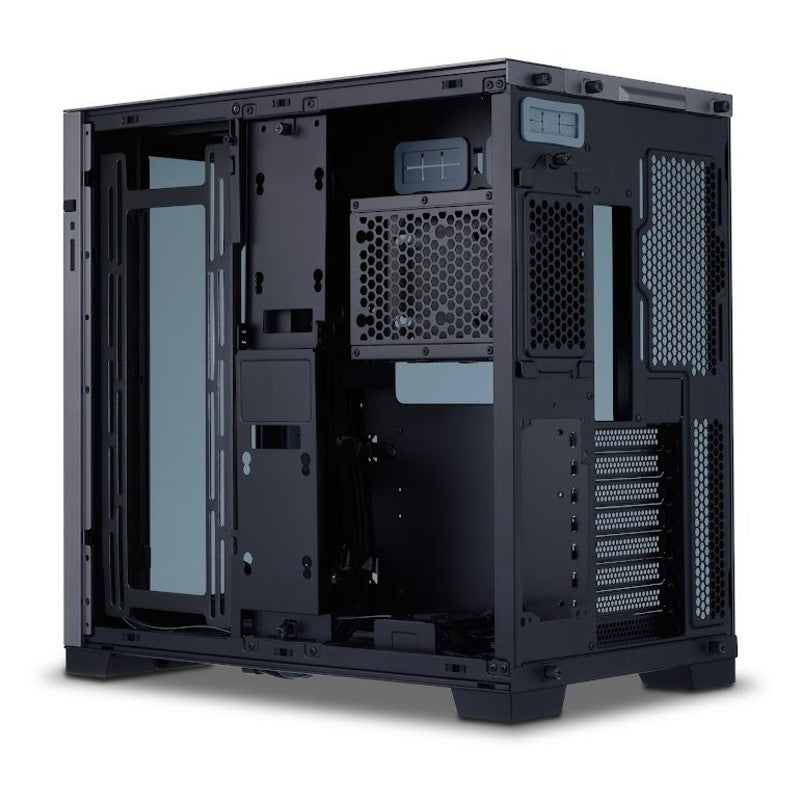

The new mechanism to mount the side panels simplifies the process to reach the interior of the case by eliminating the need to first open the top panel.

Brand

Lian

Type

PC Case

Color

Silver

Dimensions

(D)465mm × (W)285mm × (H)459mm

Materials

4mm Aluminum
4mm Tempered Glass
1mm Steel Structure

Motherboard Support

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

Fan Support

Top: 120mm × 3 or 140mm × 2
Side: 120mm × 3 or 140mm × 2
Bottom: 120mm × 3 or 140mm × 2
Rear: 120mm × 1
On Drive Cage: 60mm × 1

Radiator Support

Top: 360mm × 1 or 280mm × 1
Total max thickness: 87.5mm
Side: 360mm × 1 or 280mm × 1
Inner scenario total max thickness:
83mm(120mm fan on top and bottom)
63mm(140mm fan on top and bottom)
Outer scenario total max. thickness：
120mm(120mm fan on top and bottom)
100mm(140mm fan on top and bottom)
Bottom: 360mm × 1
Total max thickness: 87.5mm

PSU Support

220mm

Drive Support

Bottom：2.5” SSD × 4 or 3.5” HDD × 2
Side：2.5” SSD × 4 or 3.5” HDD × 2
Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
Cable Management Bar：2.5” SSD × 2
Only 9 sets of 2.5” SSD mounting pads are provided

GPU Length Clearance

426 mm

CPU Height Clearance

167 mm

Expansion Slots

8

I/O Ports

2 × USB 3.0
1 × USB 3.1 TYPE-C,
1 × HD AUDIO/ MIC
LED Color and Mode button
Reset Button
Power Button

Dust Filter

Bottom × 1
