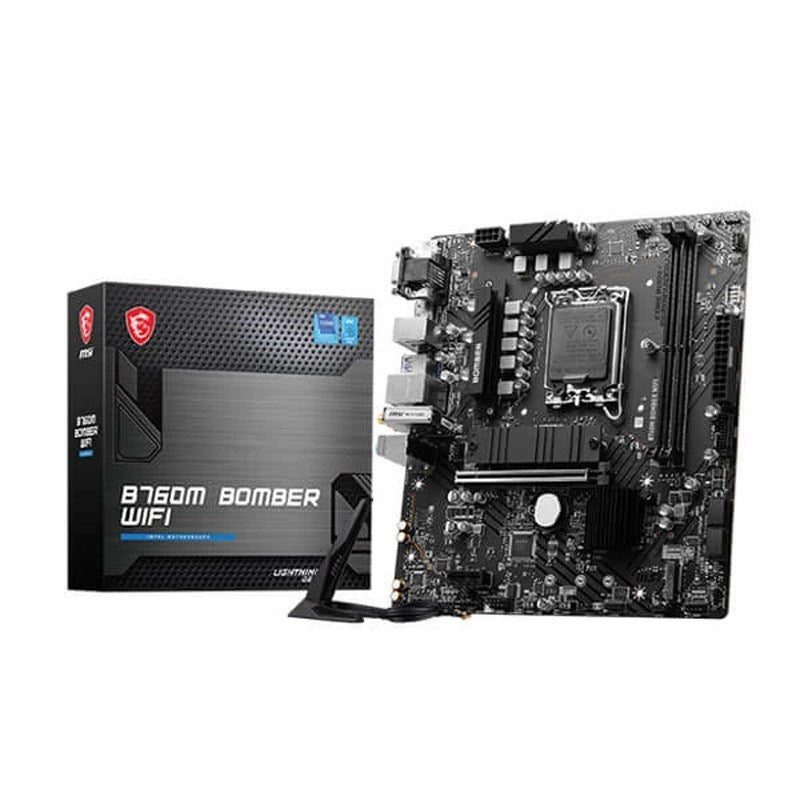

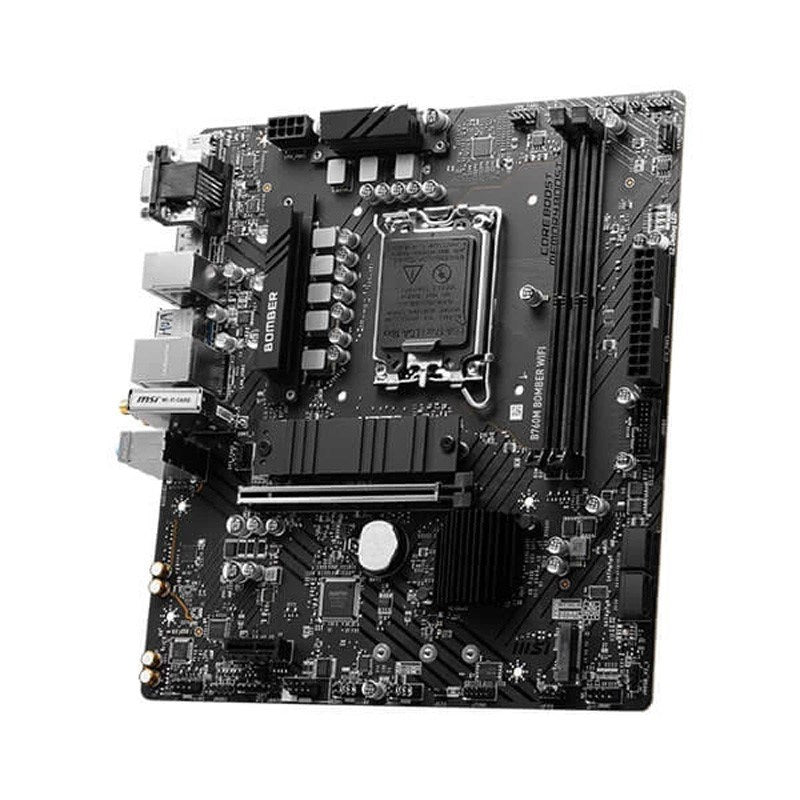

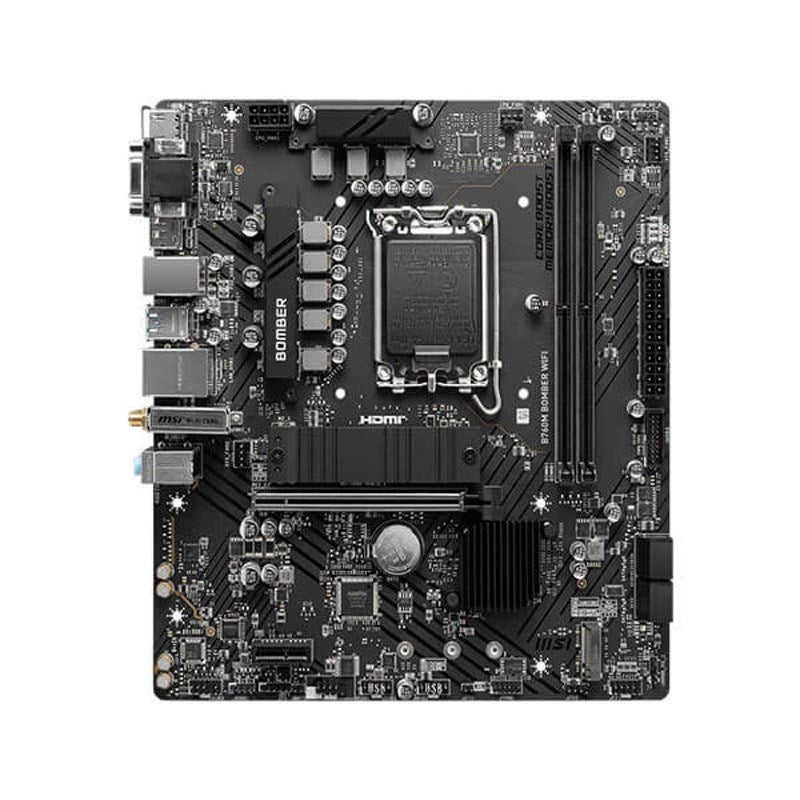

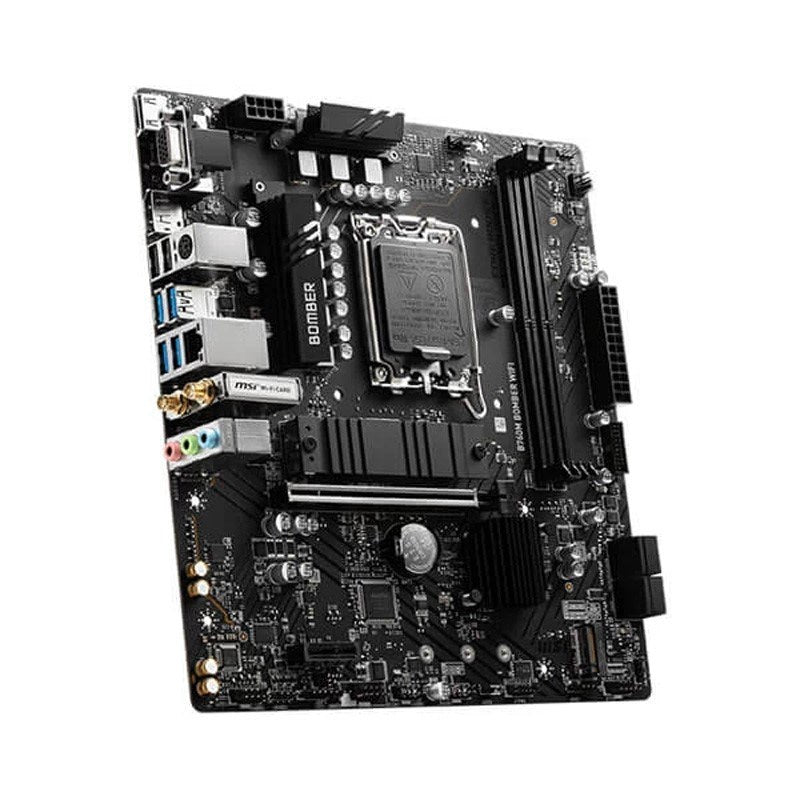

MSI B760M BOMBER WIFI DDR5 ATX Motherboard - Black

MSI

MSI B760M BOMBER WIFI DDR5 ATX Motherboard - Black

Name: MSI B760M BOMBER WIFI DDR5 ATX Motherboard - Black
Brand: MSI
SKU: 911-7D90-040
Price: 45.0 KWD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Product SKU: 911-7D90-040

Was :

45.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket.

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC).

12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost.

Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience.

6-layer PCB made by 2oz thickened copper.

PCIe 4.0 slot, Lightning Gen 4 x4 M.2

Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.

Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.

Reward your ears with studio grade sound quality for the most immersive gaming experience.

MSI B760M BOMBER WIFI DDR5 M-ATX Gaming Motherboard

The MSI MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD is a high-performance motherboard designed for gaming and other demanding applications. It features the Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors, making it compatible with a wide range of CPUs. The motherboard has an mATX form factor, measuring 243.84mmx304.8mm, making it suitable for smaller PC builds.

Specifications:

Model	B760M BOMBER WIFI
Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5600+ MHz
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Expansion Slot	1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage	2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A
LAN	Realtek RTL8125B 2.5Gbps LAN
Wireless / Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A
LED Feature	4x EZ Debug LED

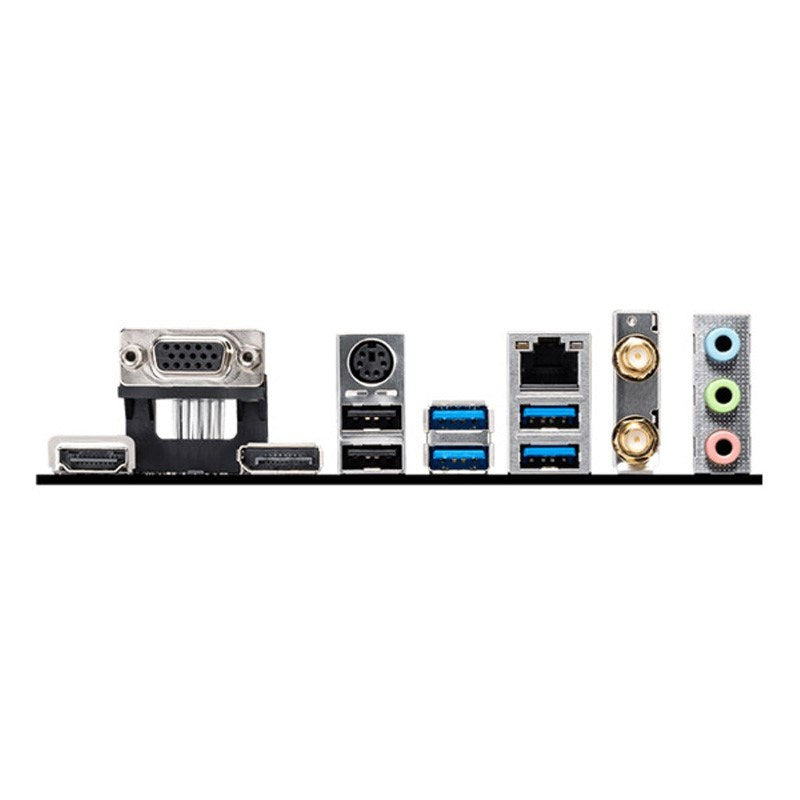

Back Panel Ports	HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	mATX 220mmx243.84mm
Warranty	3 Years

Available deliveries in Kuwait

1. Delivery within 29 Minutes - 5 KWD

2. Ultra Express (delivery within 1 hour) - 4.5 KWD

3. Super Express (delivery within 2 hours) - 2.5 KWD

4. Express Delivery (delivery within 4 hours) - 2 KWD

5. Same-Day Delivery (delivery within 24 hours) - 1.5 KWD

6. Next Day Delivery - 1 KWD

7. Within 2 Working Days - 1 KWD

Please note: Express deliveries are subject to limited areas and time bound. The available delivery option will be visible at final checkout.

Sign In

Blink Gift Cards

Blink Gift Cards

Brands

MSI B760M BOMBER WIFI DDR5 ATX Motherboard - Black

Share this product

MSI B760M BOMBER WIFI DDR5 M-ATX Gaming Motherboard

Specifications:

Model

B760M BOMBER WIFI

Chipset

INTEL B760

CPU Support

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700

Memory

2x DDR5, Maximum Memory Capacity 96GB MemoryDDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)Max. overclocking frequency:1DPC 1R Max speed up to 6400+ MHz1DPC 2R Max speed up to 5600+ MHz

Onboard Graphics

1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz1x D-SubSupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Expansion Slot

1x PCI-E x161x PCI-E x1PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

Storage

2x M.2 (Qty)M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G (Qty)* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.04x USB 2.04x USB 3.2 Gen1 Type A2x USB 3.2 Gen1 Type A

LAN

Realtek RTL8125B 2.5Gbps LAN

Wireless / Bluetooth

Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA

Internal I/O

LED Feature

4x EZ Debug LED

2x DDR5, Maximum Memory Capacity 96GB Memory
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5600+ MHz

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

2x M.2 (Qty)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

2x USB 2.0
4x USB 2.0
4x USB 3.2 Gen1 Type A
2x USB 3.2 Gen1 Type A

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
