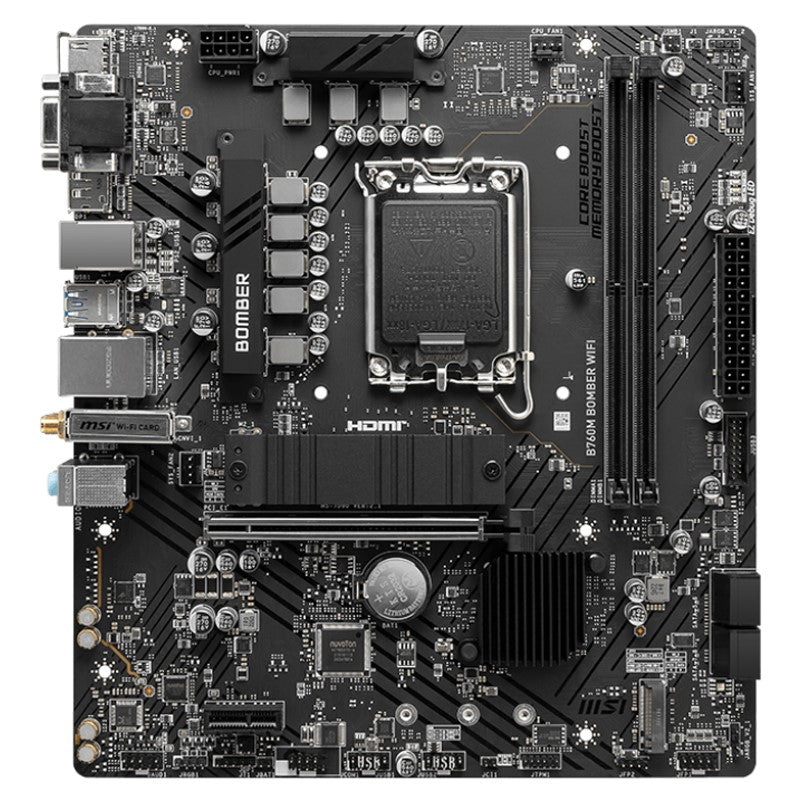

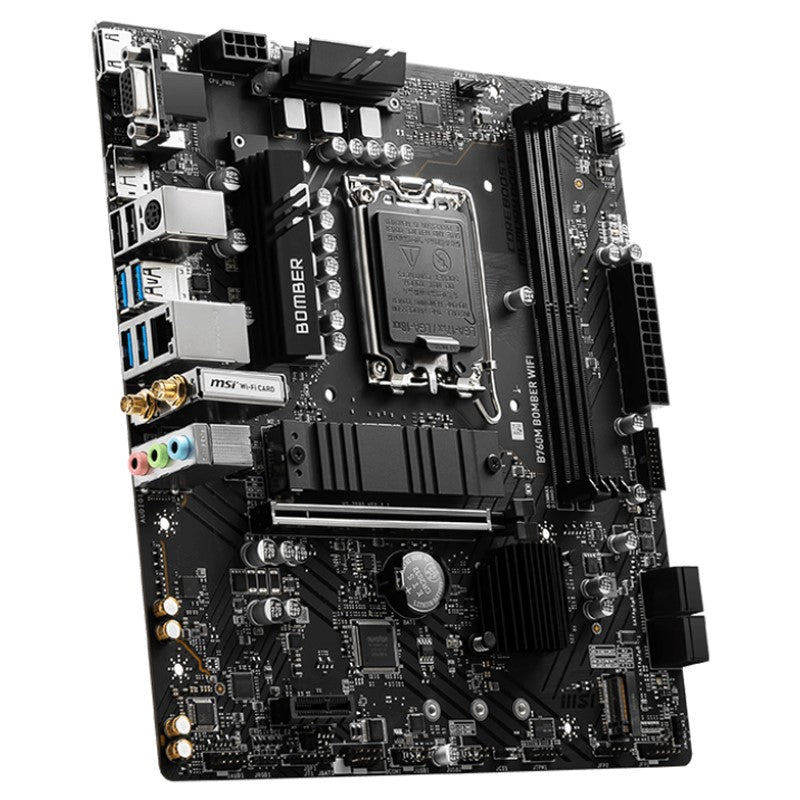

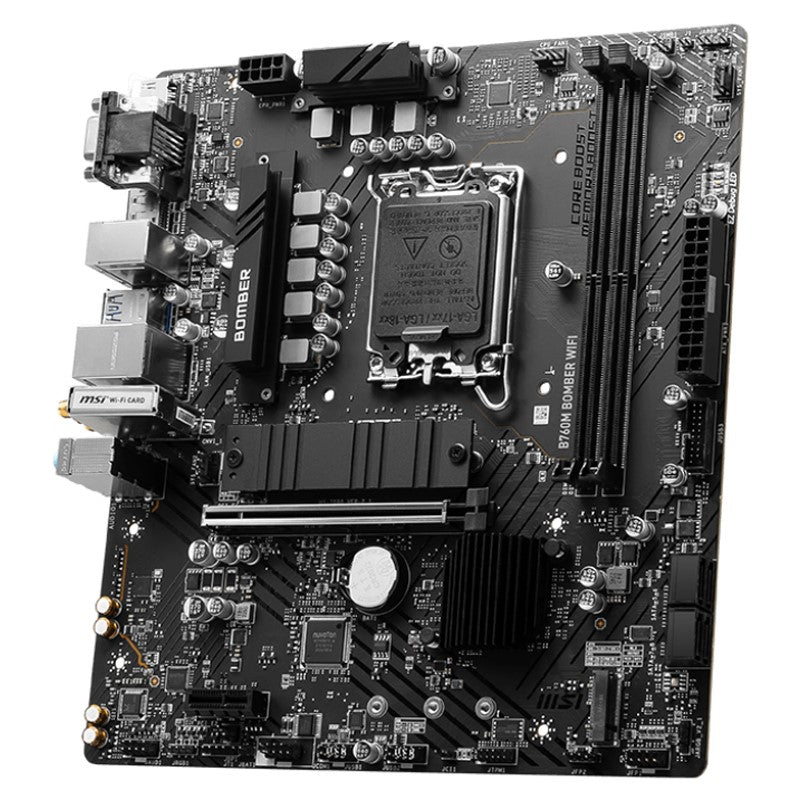

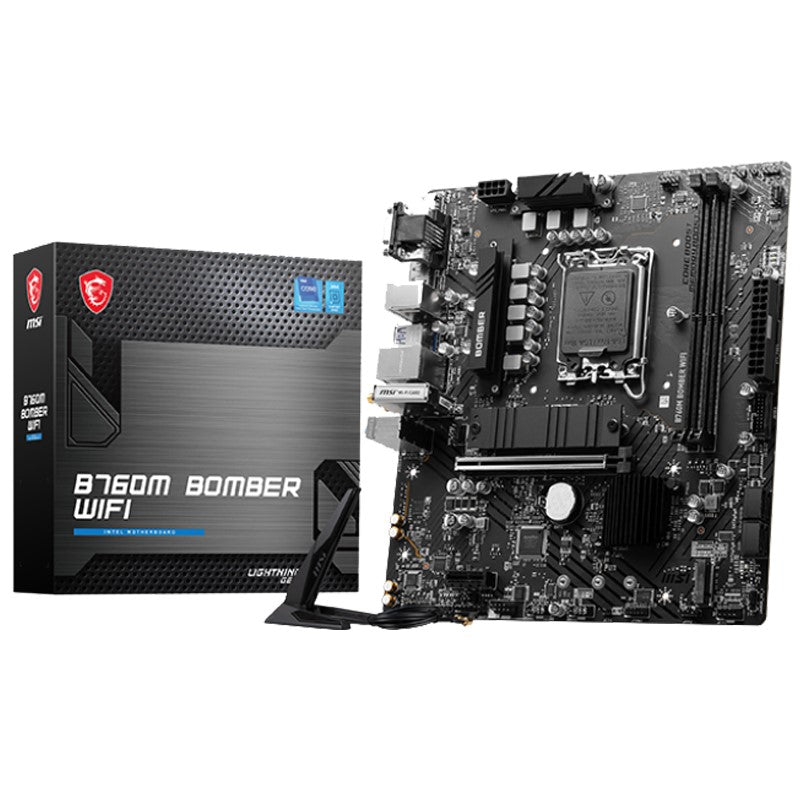

MSI B760M BOMBER WIFI DDR5 M-ATX Gaming Motherboard

MSI B760M BOMBER WIFI DDR5 M-ATX Gaming Motherboard

The MSI MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD is a high-performance motherboard designed for gaming and other demanding applications. It features the Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors, making it compatible with a wide range of CPUs. The motherboard has an mATX form factor, measuring 243.84mmx304.8mm, making it suitable for smaller PC builds.

One of the notable features of this motherboard is its support for DDR5 memory. It has four DDR5 memory slots with a maximum capacity of 192GB. The memory supports overclocking with speeds up to 7000+ MHz (OC), delivering excellent performance for memory-intensive tasks.

In terms of network connectivity, the motherboard is equipped with Intel Wi-Fi 6E, offering fast and reliable wireless connectivity. It also has a Realtek 2.5Gbps LAN port for high-speed wired internet connections.

The MSI MAG B760M MORTAR WIFI motherboard offers multiple connectivity options with a range of USB ports. It includes USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type A and Type C ports, allowing for easy connection of various devices.

The motherboard supports high-quality audio with the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio and S/PDIF output. It also features HDMI 2.1 and DisplayPort 1.4, enabling support for 4K and 8K resolutions, respectively.

With regards to expansion slots, the motherboard has two PCI-E x16 slots, supporting x16/x4 configurations, and one PCI-E x1 slot. It also includes several internal I/O ports for connecting various components.

Overall, the MSI MAG B760M MORTAR WIFI DDR5 MATX Motherboard is a feature-rich motherboard that combines excellent performance, versatile connectivity options, and efficient memory support, making it a suitable choice for gaming enthusiasts and professionals seeking a reliable and powerful foundation for their PC builds.

Model

B760M BOMBER WIFI

Chipset

INTEL B760

CPU Support

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700

Memory

2x DDR5, Maximum Memory Capacity 96GB Memory
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5600+ MHz

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Expansion Slot

1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

Storage

2x M.2 (Qty)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0
4x USB 2.0
4x USB 3.2 Gen1 Type A
2x USB 3.2 Gen1 Type A

LAN

Realtek RTL8125B 2.5Gbps LAN

Wireless / Bluetooth

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA

Internal I/O

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A

LED Feature

4x EZ Debug LED

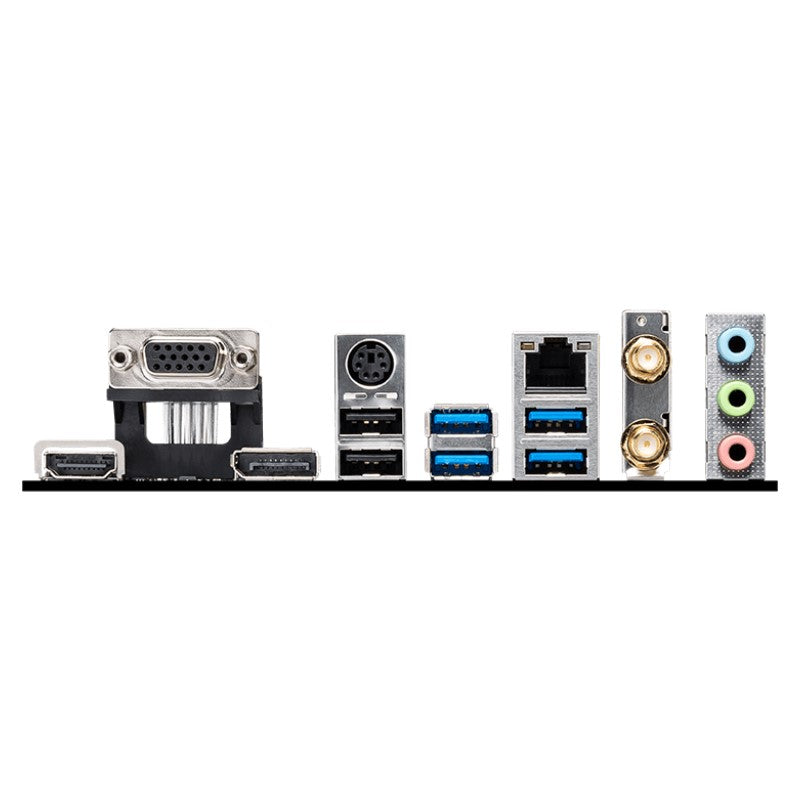

Back Panel Ports

HDMI™
VGA
DisplayPort
Keyboard / Mouse
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)

Operating System

Support for Windows 11 64-bit, Windows 10 64-bit

PCB Dimension (W × L)

mATX
220mmx243.84mm

Warranty

3 Years
