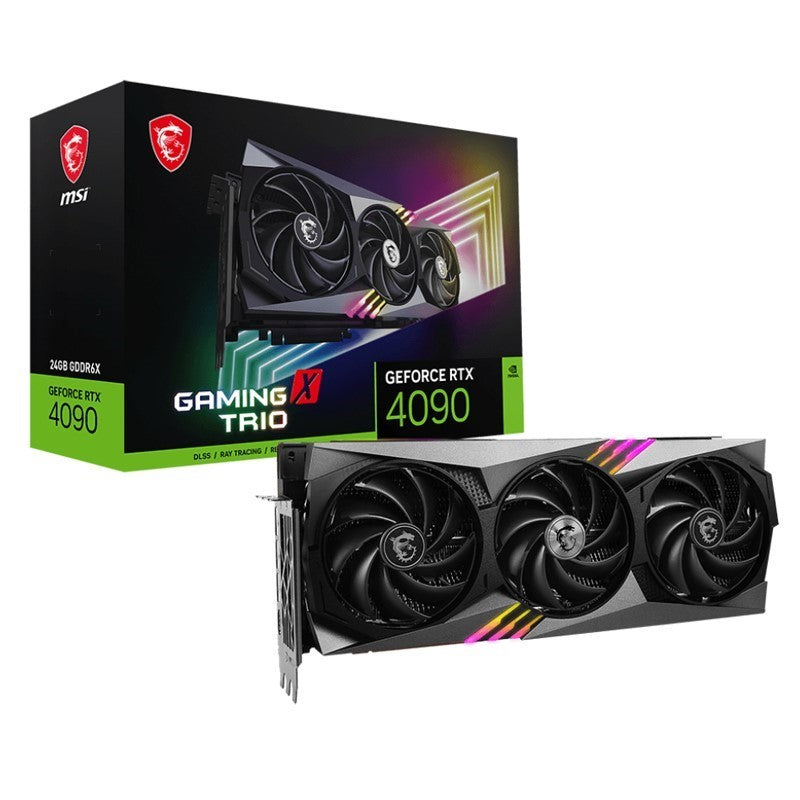

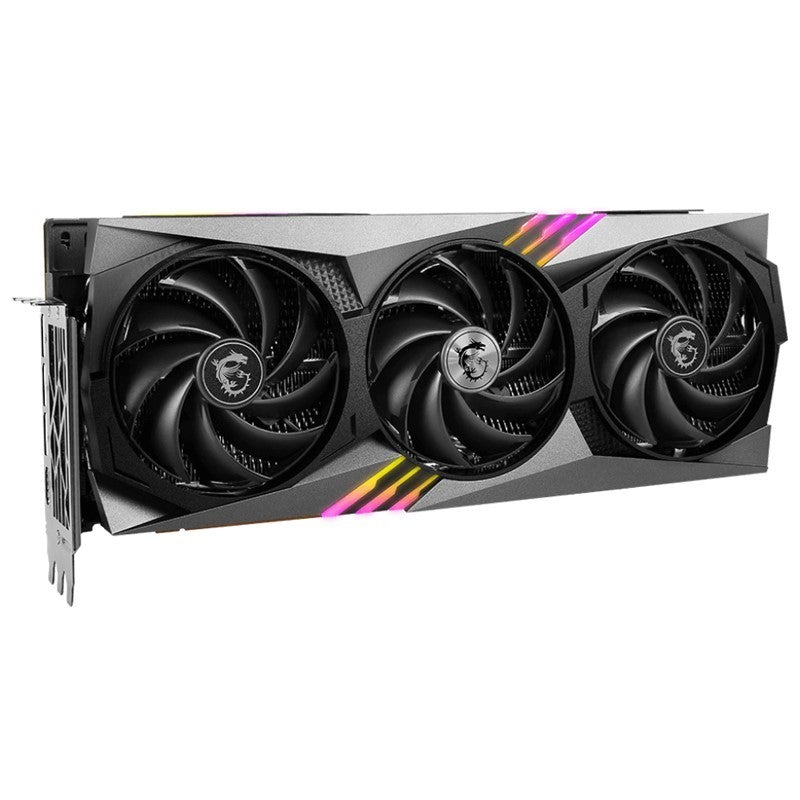

MSI GeForce RTX 4090 GAMING X TRIO 24GB GDDR6X Gaming Graphics Card

Strength And Artistry

MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more

Tri FROZR 3 Thermal Design

Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card

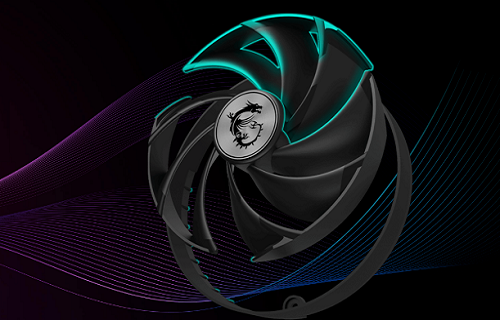

TORX Fan 5.0

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink.

Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

Facing The Heat Head-On

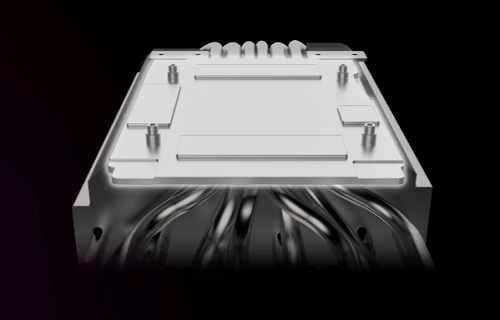

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes.

This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency

Keeping The Core Cool

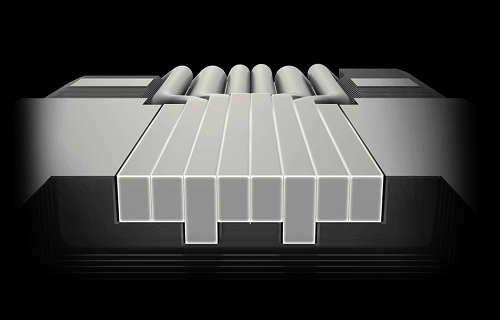

Core Pipes are precision-crafted to make maximum use of the available space.

A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.

Change Focus When Needed

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in Silent mode.

Effective Thermal Padding

An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Model Name

GeForce RTX 4090 GAMING X TRIO 24G

Graphics Processing Unit

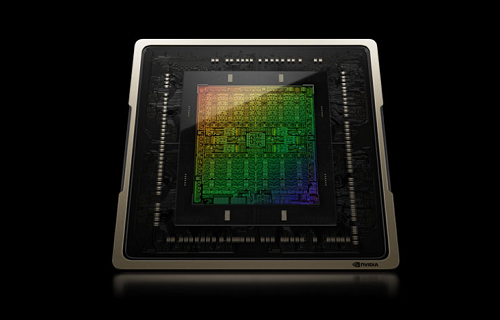

NVIDIA GeForce RTX 4090

Interface

PCI Express Gen 4

Core Clocks

Extreme Performance: 2610 MHz (MSI Center)

Boost: 2595 MHz (GAMING & SILENT Mode)

Cuda® Cores

16384 Units

Memory Speed

21 Gbps

Memory

24GB GDDR6X

Memory Bus

384-bit

Output

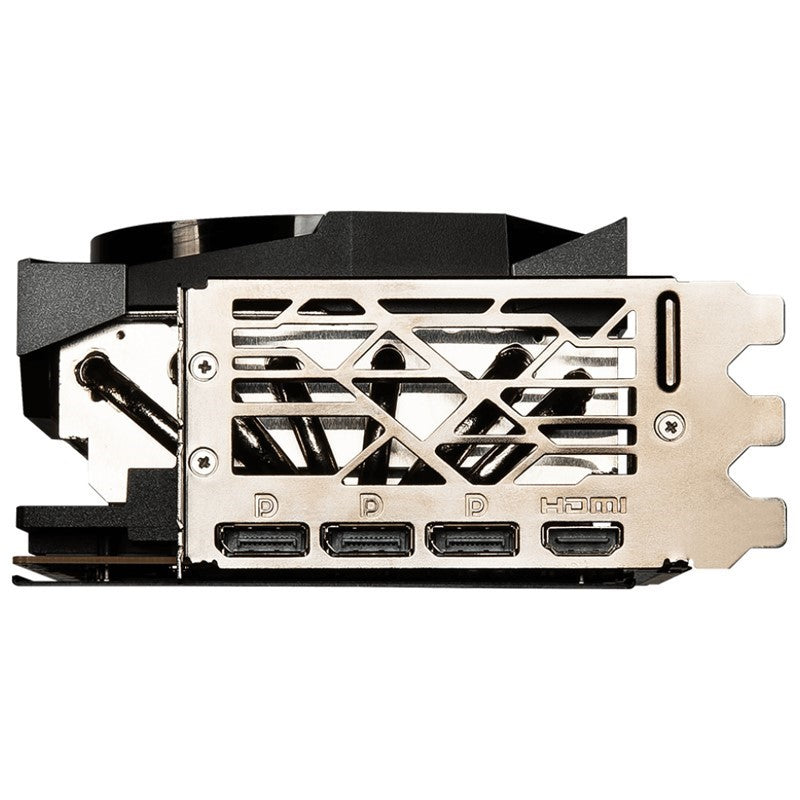

DisplayPort x 3 (v1.4a)

HDMI x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP Support

YES

Power Consumption

450 W

16-pin x 1

Power Connectors

850 W

Recommended Psu

337 x 140 x 77 mm

Card Dimension (Mm)

2170 g / 3093 g

Weight (Card / Package)

12 Ultimate

DirectX Version Support

4.6

OpenGL Version Support

4

Maximum Displays

YES

G-Sync Technology

7680x4320

Digital Maximum Resolution

7680 x 4320
