MSI MAG X870E TOMAHAWK WIFI AMD AM5 DDR5 ATX Gaming Motherboard

MSI

MSI MAG X870E TOMAHAWK WIFI AMD AM5 DDR5 ATX Gaming Motherboard

Name: MSI MAG X870E TOMAHAWK WIFI AMD AM5 DDR5 ATX Gaming Motherboard
Brand: MSI
SKU: 911-7E59-006
Price: 139.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 911-7E59-006

Was :

139.000 KD

Quantity

Low stock

2 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)

Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MAG X870E TOMAHAWK WIFI

MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

Specifications:

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen™ 9000 Series Processors max. overclocking frequency:
	• 1DPC 1R Max speed up to 8400+ MT/s
	• 1DPC 2R Max speed up to 6400+ MT/s
	• 2DPC 1R Max speed up to 6400+ MT/s
	• 2DPC 2R Max speed up to 4800+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPO™
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only*
	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	• The DIMM slots on this motherboard have double-sided latches.
	• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI™
	Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
	2x Type-C DisplayPort
	USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics
	**Graphics specifications may vary depending on the CPU installed
Slot	3x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E1 slot
	• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
	• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC4080 Codec
	7.1-Channel USB High Performance Audio
	Supports up to 32-bit/384kHz playback on front panel
	Supports S/PDIF output
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
	M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G
	M.2_1 slot (From CPU)
	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
	M.2_2 slot (From CPU)
	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
	*The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
	**USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
	*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
	*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	3x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	2x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Rear)
	1x USB 20Gbps Type C (Front)
	2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth® 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED
	1x EZ Digit Debug LED

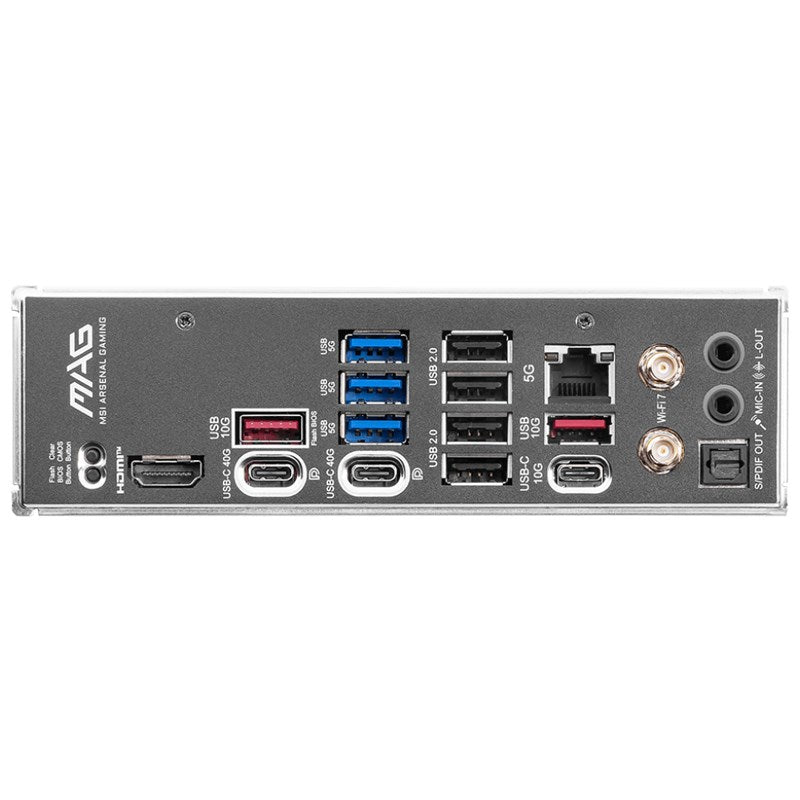

Back Panel Ports	Clear CMOS Button
	USB 10Gbps Type-A
	USB 5Gbps Type-A
	USB 2.0
	5G LAN
	Wi-Fi / Bluetooth
	Audio connectors
	Flash BIOS Button
	HDMI™
	USB 40Gbps Type-C
	USB 10Gbps Type-C
	USB 10Gbps Type-A
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX
	243.84mmx304.8mm
