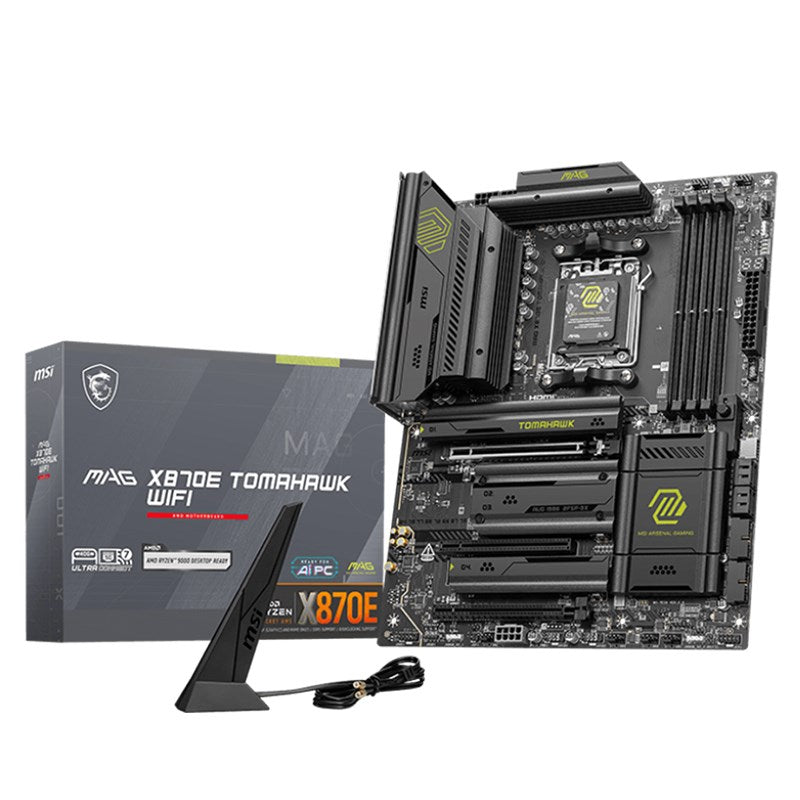

- MSI MAG X870E TOMAHAWK WIFI DDR5 ATX Gaming Motherboard - Black
- Specifications
- Description
- Shipping Info
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MSI MAG X870E TOMAHAWK WIFI DDR5 ATX Gaming Motherboard |
|
MAG X870E TOMAHAWK WIFI MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. AI Engine AI Engine provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment. AI LAN MANAGER AI LAN MANAGER optimizes networking performance and minimizes latency, providing a seamless online experience. What are the benefits of MSI MAG X870E TOMAHAWK WIFI Gaming Motherboard ?
|
Specification
Chipset |
AMD X870E |
CPU |
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
|
|
Socket AM5 |
Audio |
Realtek ALC4080 Codec |
|
|
7.1-Channel USB High Performance Audio |
|
|
Supports up to 32-bit/384kHz playback on front panel |
|
|
Supports S/PDIF output |
USB |
4x USB 2.0 (Rear) |
|
|
4x USB 2.0 (Front) |
|
|
3x USB 5Gbps Type A (Rear) |
|
|
4x USB 5Gbps Type A (Front) |
|
|
2x USB 10Gbps Type A (Rear) |
|
|
1x USB 10Gbps Type C (Rear) |
|
|
1x USB 20Gbps Type C (Front) |
|
|
2x USB 40Gbps Type C (Rear) |
LAN |
1x Realtek 8126 5G LAN |
Internal IO |
1x Power Connector(ATX_PWR) |
|
|
2x Power Connector(CPU_PWR) |
|
|
1x Power Connector(PCIE_PWR 8pin) |
|
|
1x CPU Fan |
|
|
1x Combo Fan (Pump_Sys Fan) |
|
|
6x System Fan |
|
|
1x EZ Conn-header (JAF_2) |
|
|
2x Front Panel (JFP) |
|
|
1x Chassis Intrusion (JCI) |
|
|
1x Front Audio (JAUD) |
|
|
3x Addressable V2 RGB LED connector (JARGB_V2) |
|
|
1x RGB LED connector(JRGB) |
|
|
1x TPM pin header(Support TPM 2.0) |
|
|
4x USB 2.0 ports |
|
|
4x USB 5Gbps Type A ports |
|
|
1x USB 20Gbps Type C ports |
LED FEATURE |
4x EZ Debug LED |
|
|
1x EZ Digit Debug LED |
OPERATING SYSTEM |
Support for Windows 11 64-bit |
PCB Info |
ATX |
|
|
243.84mm x 304.8mm |
