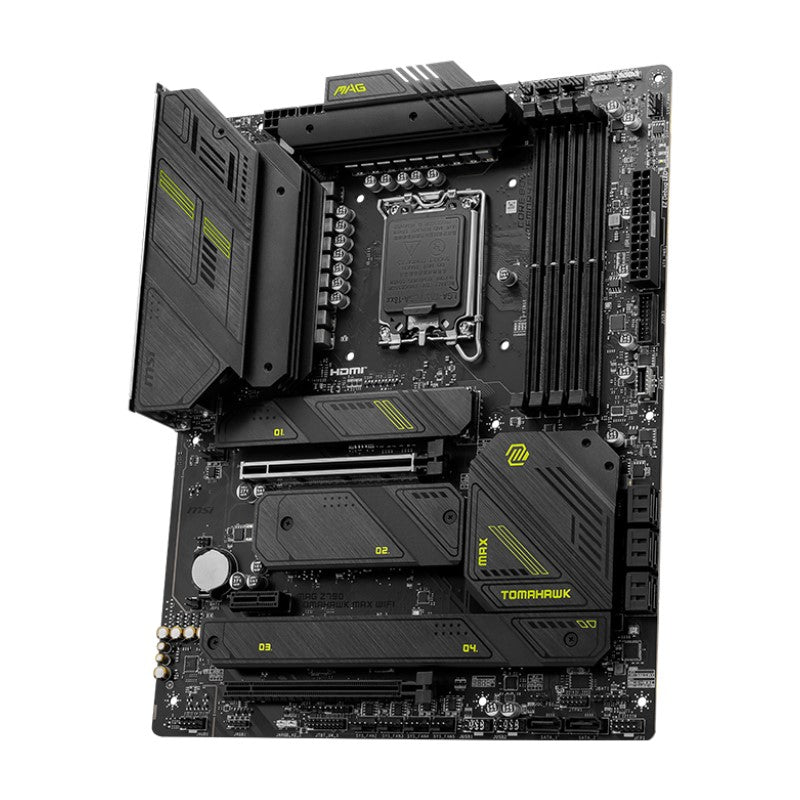

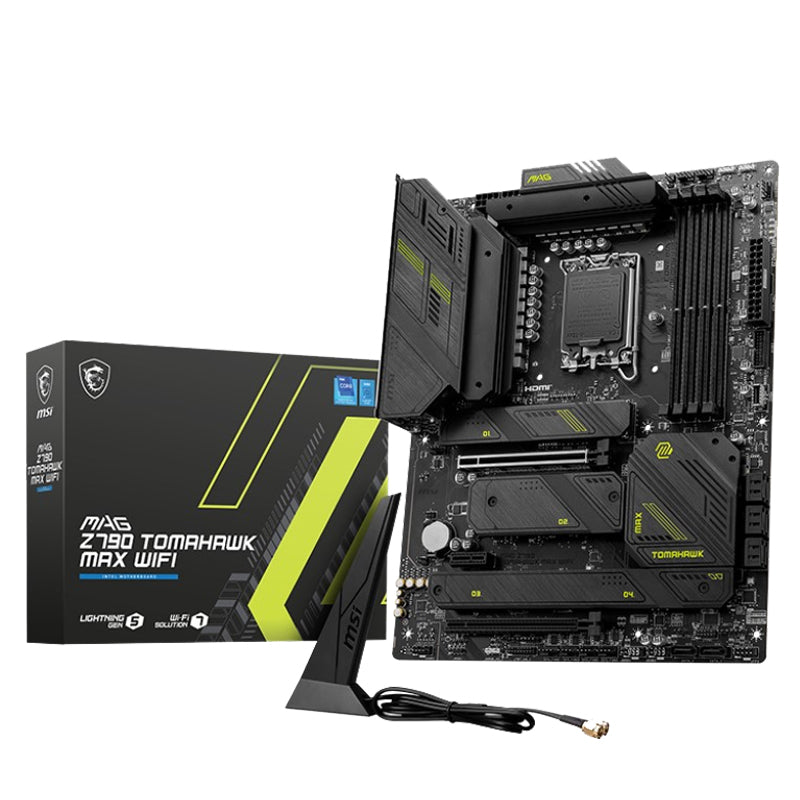

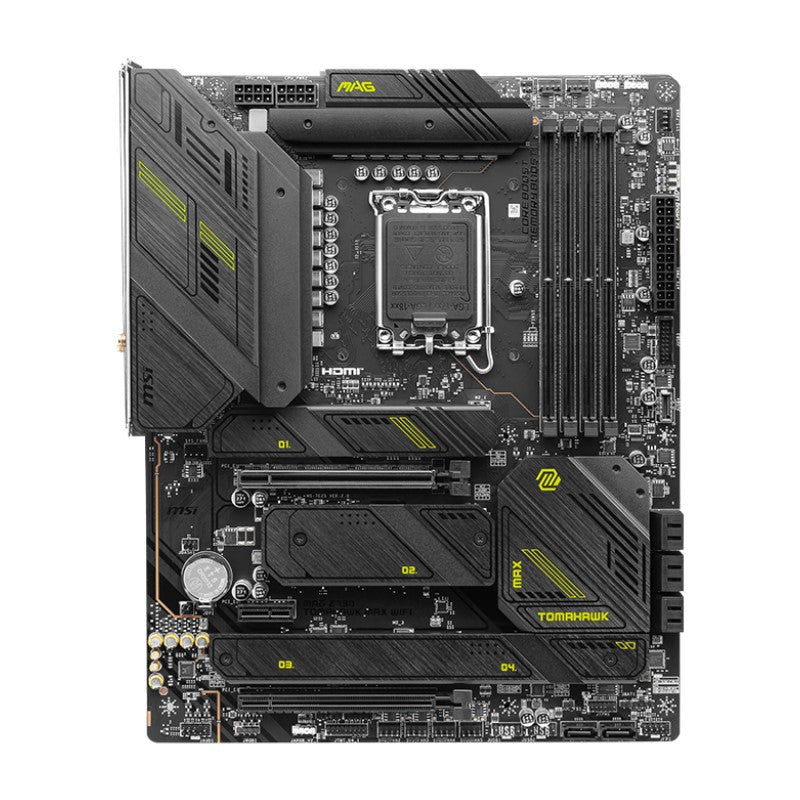

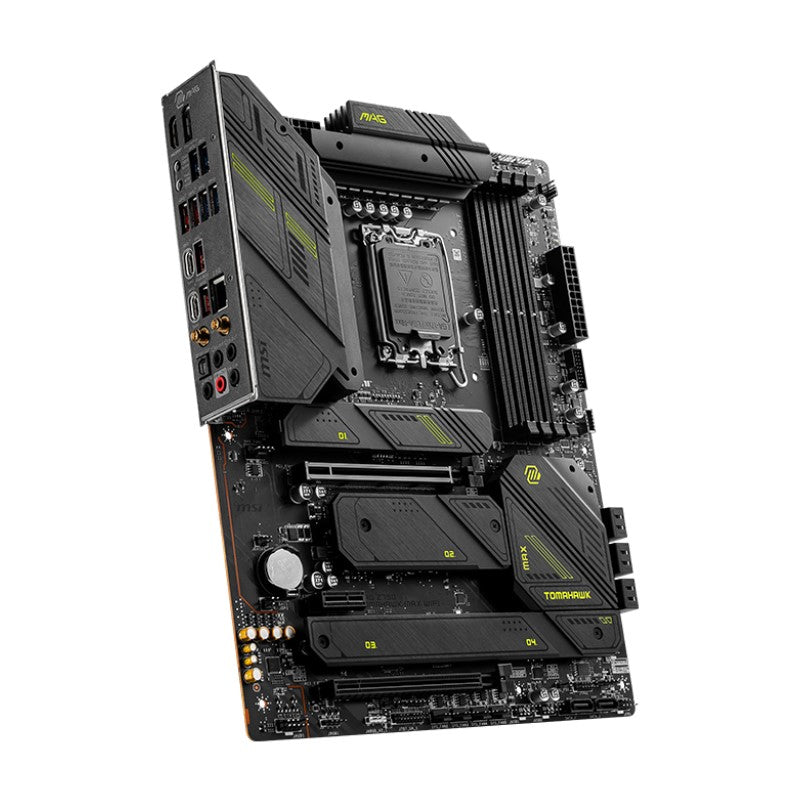

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

MSI

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

Product SKU: 911-7E25-021

Was :

119.000 KD

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket.

Supports DDR5 Memory, up to 7800+(OC) MHz

Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2x2

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.

AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

MSI MAG Z790 TOMAHAWK MAX WIFI ATX Gaming Motherboard

Specifications:

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 192GB
	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 7800+ MHz
	• 1DPC 2R Max speed up to 6600+ MHz
	• 2DPC 1R Max speed up to 6400+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™
	Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 8K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	8x SATA 6G
	*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
	*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
	*SATA_A1_A2 do not support RAID function.
USB	4x USB 2.0 (Front)
	4x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	4x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Rear)
	1x USB 3.2 Gen2 Type C (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel® 2.5Gbps LAN
Wireless Lan & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth® 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio	Realtek® ALC4080 Codec
	7.1-Channel USB High Performance Audio
	Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	6x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x TBT connector (JTBT, supports RTD3)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
	1x USB 3.2 Gen2 Type C ports
	1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED Feature	4x EZ Debug LED

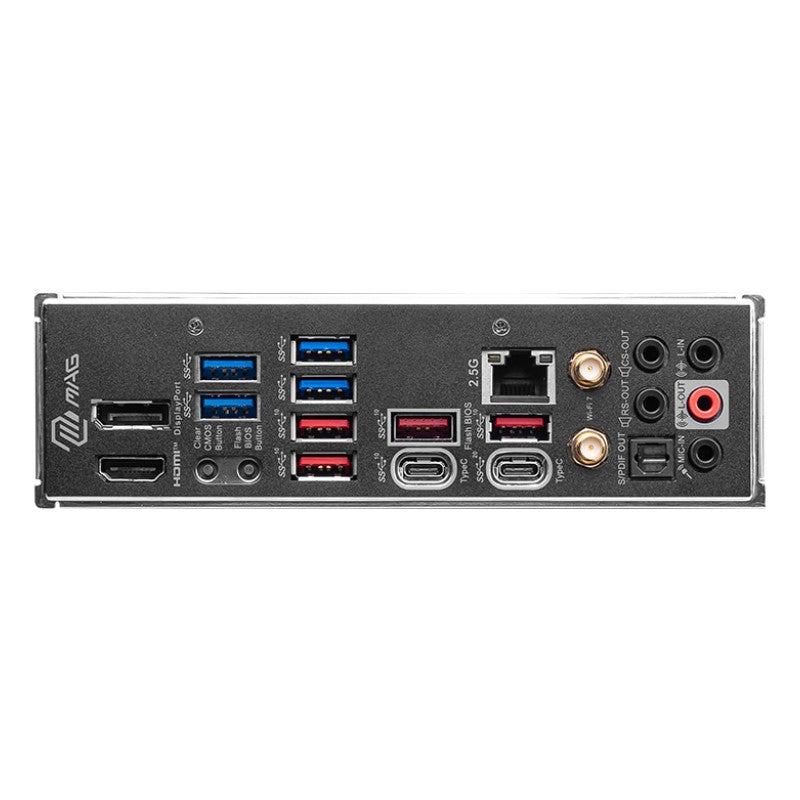

Back Panel Ports	Display Port
	USB 3.2 Gen 1 5 Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-A)
	2.5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	HDMI™
	Clear CMOS
	Flash BIOS
	USB 3.2 Gen 2 10Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
	USB 3.2 Gen 2x2 20Gbps (Type-C)
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	ATX
	243.84mmx304.8mm
