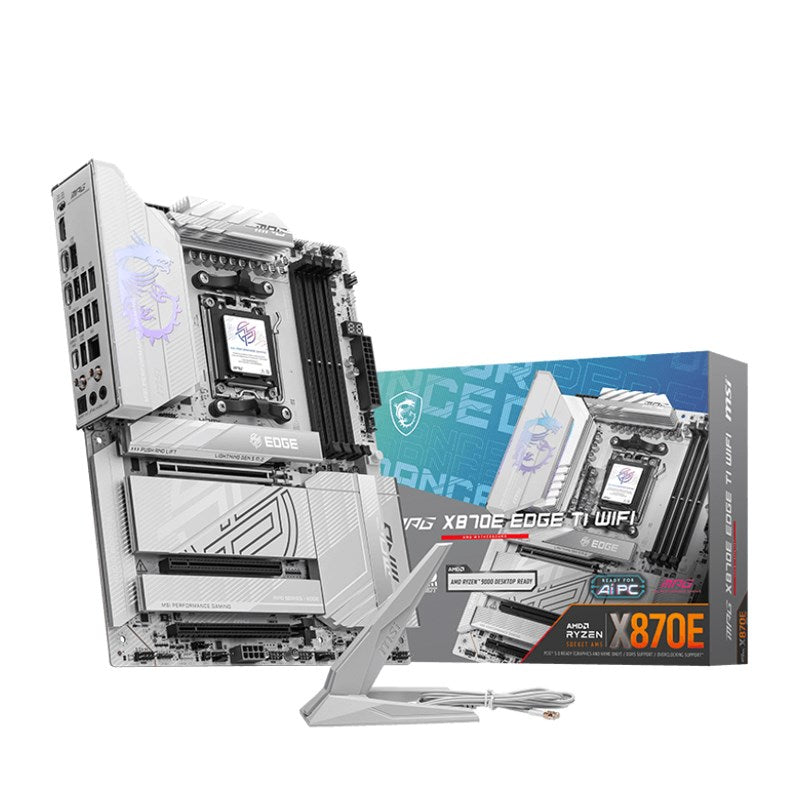

MSI MPG X870E EDGE TI WIFI AMD AM5 DDR5 ATX Gaming Motherboard

MSI

MSI MPG X870E EDGE TI WIFI AMD AM5 DDR5 ATX Gaming Motherboard

Name: MSI MPG X870E EDGE TI WIFI AMD AM5 DDR5 ATX Gaming Motherboard
Brand: MSI
SKU: 911-7E59-001
Price: 165.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 911-7E59-001

Was :

165.000 KD

Quantity

Low stock

1 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)

Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2

Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

MPG X870E EDGE TI WIFI

MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Specifications:

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen™ 9000 Series Processors max. overclocking frequency:
	• 1DPC 1R Max speed up to 8400+ MT/s
	• 1DPC 2R Max speed up to 6400+ MT/s
	• 2DPC 1R Max speed up to 6400+ MT/s
	• 2DPC 2R Max speed up to 4800+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only*
	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	• The DIMM slots on this motherboard only have single-sided latche.
	• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI™
	Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
	2x Type-C DisplayPort
	USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E1 slot
	• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
	• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek® ALC4080 Codec
	7.1-Channel USB High-Performance Audio
	Supports up to 32-Bit/384 kHz playback on front panel
	Supports S/PDIF output
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
	M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G
	M.2_1 slot
	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
	M.2_2 slot
	• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
	• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
	* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
	** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
	*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
	*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	4x USB 5Gbps Type A (Front)
	5x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Rear)
	1x USB 20Gbps Type C (Front)
	2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth® 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED
	1x EZ Digi-Debug LED
Back Panel Ports	Clear CMOS Button
	USB 10Gbps Type-A
	USB 2.0
	5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	Flash BIOS Button
	HDMI™
	USB 40Gbps Type-C
	USB 10Gbps Type-A
	USB 10Gbps Type-C
	Optical S/PDIF Out
Operating System	Support for Windows® 11 64-bit
PCB Info	ATX
	243.84mmx304.8mm
