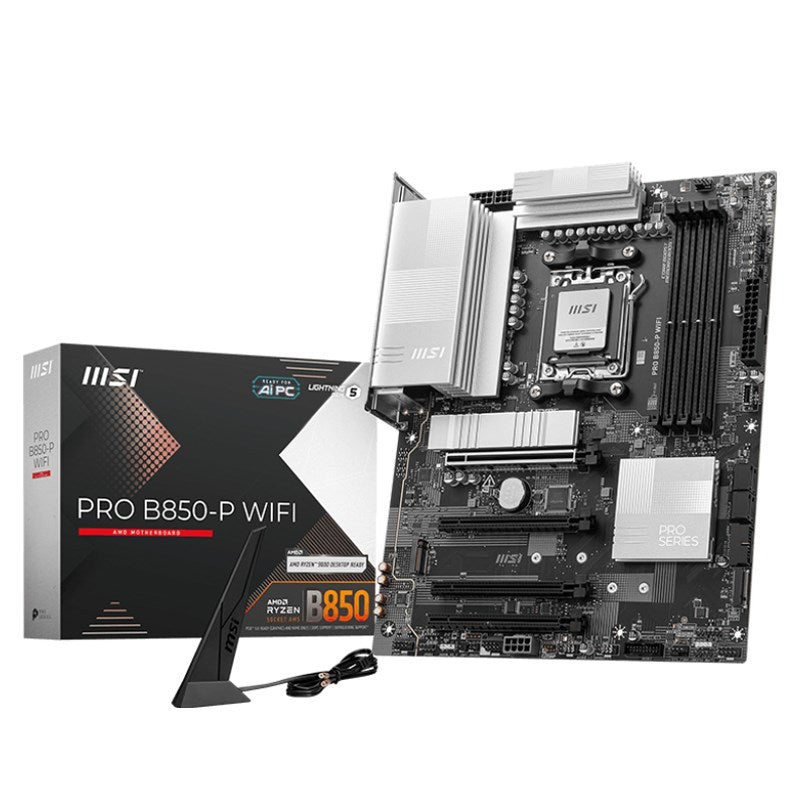

MSI PRO B850-P WIFI AM5 DDR5 ATX Gaming Motherboard

MSI

MSI PRO B850-P WIFI AM5 DDR5 ATX Gaming Motherboard

Name: MSI PRO B850-P WIFI AM5 DDR5 ATX Gaming Motherboard
Brand: MSI
SKU: 911-7E56-002
Price: 72.0 KWD
Availability: OutOfStock

Product SKU: 911-7E56-002

Was :

72.000 KD

Express

Quantity

Low stock

0 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)

Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna

Lightning-Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI PRO B850-P WIFI DDR5 ATX Gaming Motherboard

PRO B850-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors.

Specifications:

Chipset	AMD B850
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
	Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256 GB
	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200+ MT/s
	1DPC 2R Max speed up to 6400+ MT/s
	2DPC 1R Max speed up to 6400+ MT/s
	2DPC 2R Max speed up to 4800+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
	CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	The DIMM slots on this motherboard have double-sided latches.
	Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI
	Support HDMITM 2.1, maximum resolution of 4K 60 Hz
	Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E1 slot
	Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
	Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
	Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
	PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Audio	Realtek ALC897
	7.1-Channel High Definition Audio
Storage	3x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
	4x SATA 6G
	M2_1 slot
	Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
	M2_2 slot
	Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)
	Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
	Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processors)
	Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	1x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 5Gbps Type C (Front)
	1x USB 10Gbps Type A (Rear)
	2x USB 10Gbps Type C (Rear)
LAN	Realtek 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	4x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
Wireless LAN & Bluetooth	Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth 5.4, MLO, 4KQAM
	6 GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED
Back Panel Ports	Clear CMOS Button
	USB 10Gbps Type-A
	USB 2.0
	5G LAN
	Wi-Fi / Bluetooth
	Audio connectors
	Flash BIOS Button
	HDMI™
	USB 10Gbps Type-C
	USB 5Gbps Type-A
	USB 10Gbps Type-C
	S/PDIF OUT
Operating System	Support for Windows 11 64-bit
PCB Info	ATX
	243.84mmx304.8mm
