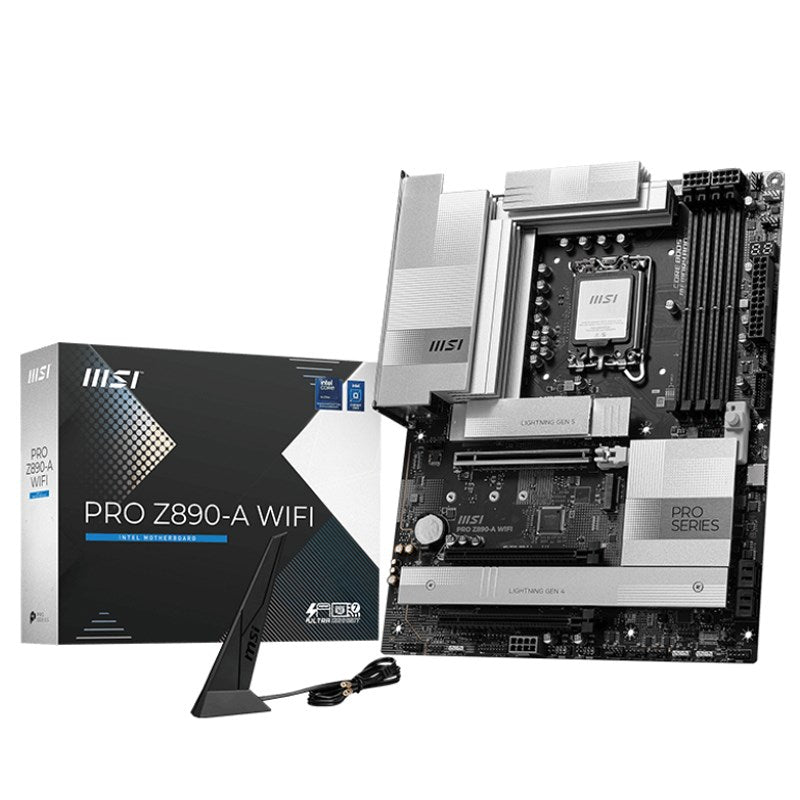

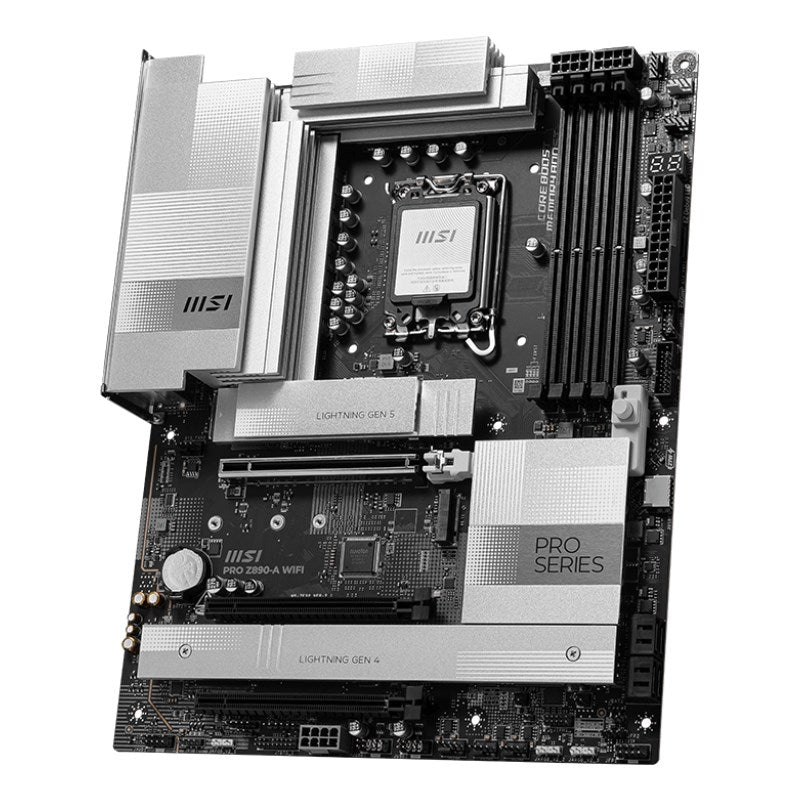

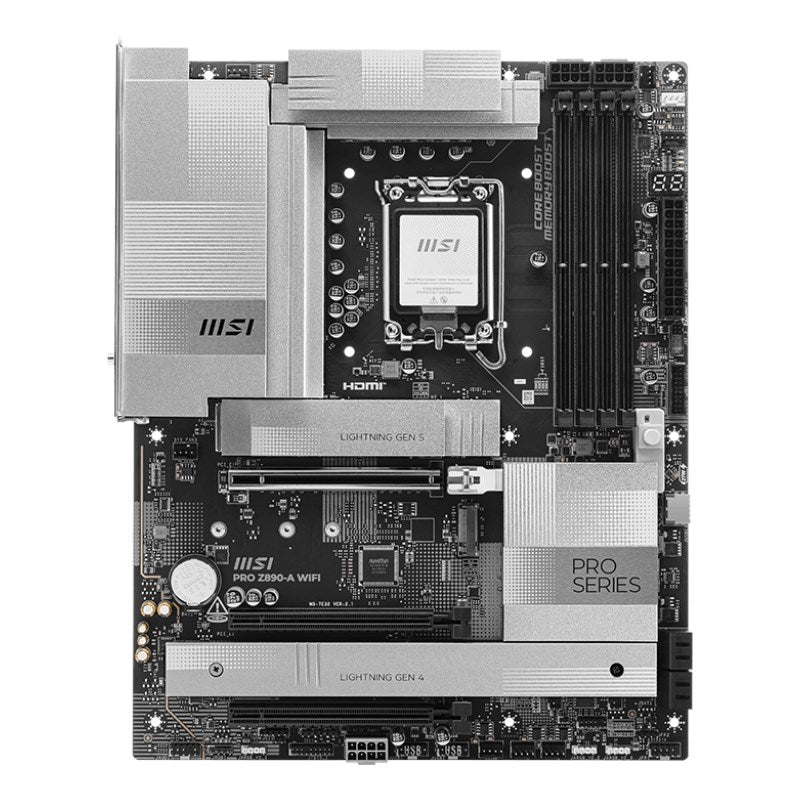

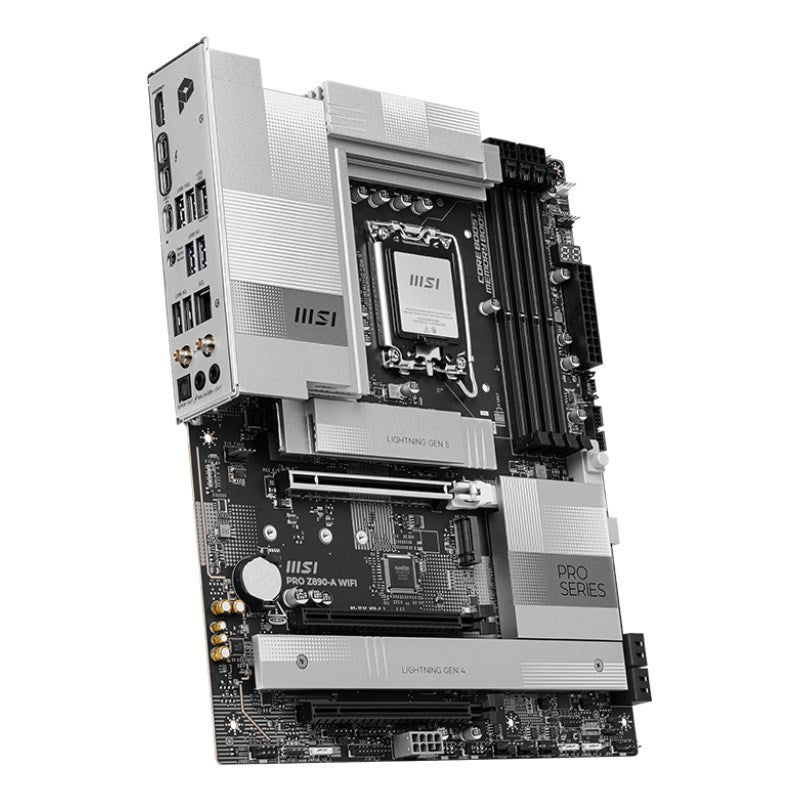

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

MSI

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

Product SKU: 911-7E32-004

Was :

125.000 KD

Quantity

Low stock

2 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket

Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material

Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna

Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

Ultra Connect: dual Thunderbolt™ 4 ports, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI PRO Z890-A WIFI 7 ATX Gaming Motherboard

PRO Z890-A WIFI

PRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Business Elegance

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide user’s incredible experience. Users who care about productivity and efficiency can count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI Motherboard Ai Logo

MSI motherboards are designed with advanced hardware and technology, and well-support the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

provides several categories for you to sync the applications you want to perform and automatically optimize them to create a comfortable environment.

AI Lan Manager

optimizes networking performance and minimizes latency, providing a seamless online experience.

FROZR Ai Cooling

automatically adjusts fan duty to make sure the system stays cool, stable and high performance.

AI Boost

is an exclusive MSI feature. It overclocks the NPU to improve higher AI performance.

Specifications:

Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2)
	LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 9200+ MT/s
	• 1DPC 2R Max speed up to 7200+ MT/s
	• 2DPC 1R Max speed up to 4800+ MT/s
	• 2DPC 2R Max speed up to 4800+ MT/s
	Supports Intel® POR Speed and JEDEC Speed
	Supports Memory Overclocking and Intel® XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
	• The DIMM slots on this motherboard only have single-sided latches.
	• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics	1x HDMI™
	Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
	2x Type-C DisplayPort
	Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek® ALC1220P
	7.1-Channel High Definition Audio
	Supports S/PDIF output
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	2x Thunderbolt4 ports (Rear)
	Support up to 40Gbps transfer rate with Thunderbolt devices
	Support up to 20Gbps transfer rate with USB4 devices
	Support up to 10Gbps transfer rate with USB 3.2 devices
	Support up to 5V/3A,15W power charging
	Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
	Support up to 8K display
USB	4x USB 2.0 (Front)
	4x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	3x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Rear)
	1x USB 20Gbps Type C (Front)
	*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	Realtek® 8126 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3)
	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
Wireless Lan & Bluetooth	Intel® Wi-Fi 7
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
	Supports Bluetooth® 5.4**, MLO, 4KQAM
	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
	** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature	4x EZ Debug LED
	1x EZ Digit Debug LED

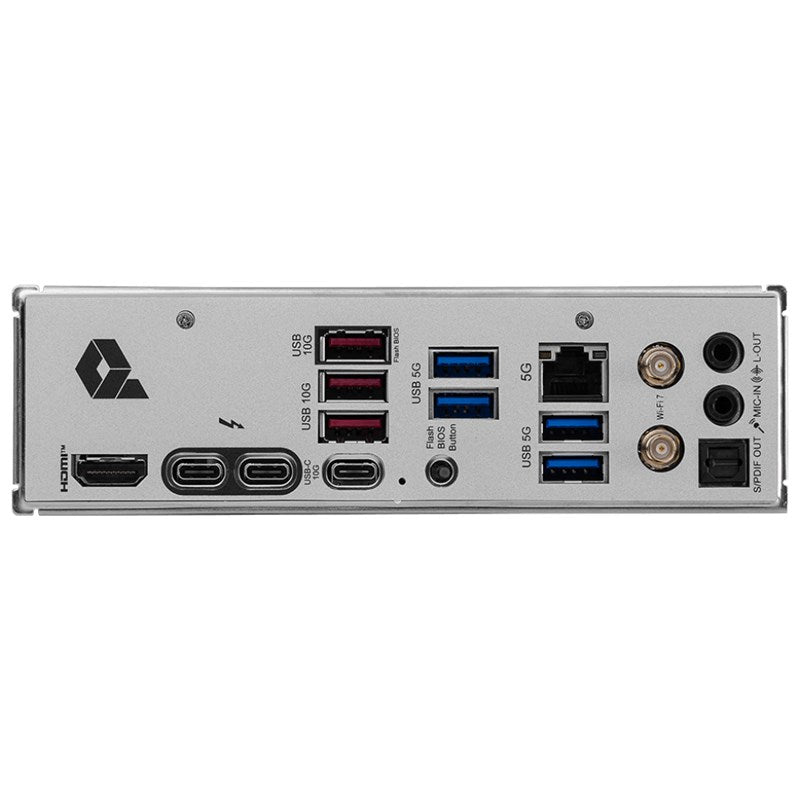

Back Panel Ports	USB 10Gbps Type-A
	USB 5Gbps Type-A
	5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	HDMI™
	Thunderbolt™ 4 40Gbps (Type-C)
	USB 10Gbps Type-C
	Flash BIOS Button
	USB 5Gbps Type-A
	S/PDIF-OUT
Operating System	Support for Windows® 11 64-bit
Box Content
PCB Info	ATX
	243.84mmx304.8mm
