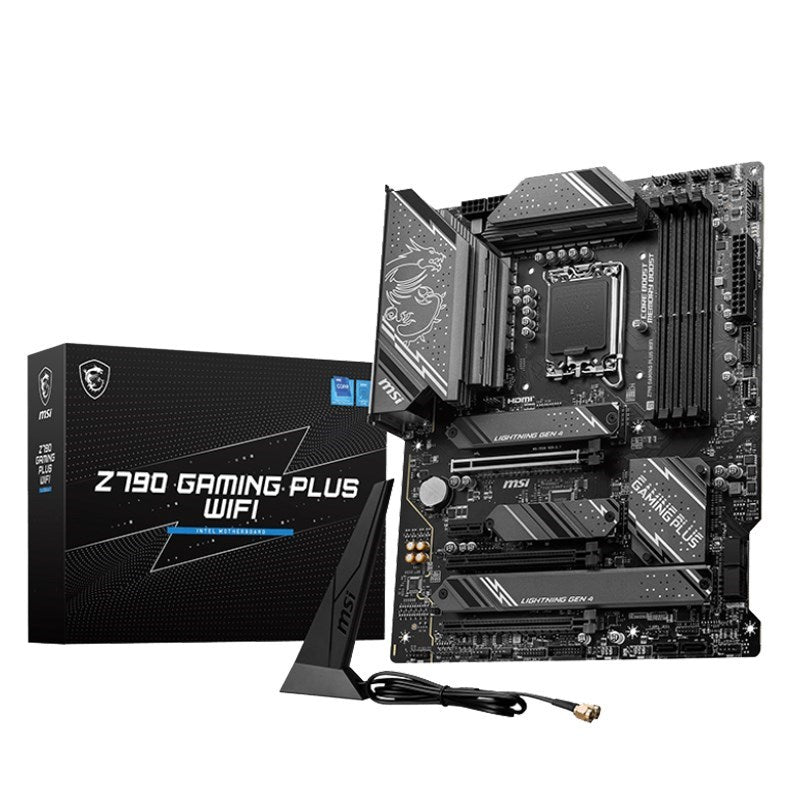

MSI Z790 GAMING PLUS WIFI DDR5 LGA 1700 ATX Gaming Motherboard

MSI

MSI Z790 GAMING PLUS WIFI DDR5 LGA 1700 ATX Gaming Motherboard

Name: MSI Z790 GAMING PLUS WIFI DDR5 LGA 1700 ATX Gaming Motherboard
Brand: MSI
SKU: 911-7E06-075
Price: 89.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: 911-7E06-075

Was :

89.000 KD

Quantity

Low stock

4 items in stock

In stock

Out of stock

Back in stock

Specifications
Description
Shipping Info

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

Supports DDR5 Memory, up to 7200+(OC) MHz

Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI Z790 GAMING PLUS WIFI DDR5 ATX Gaming Motherboard

Specifications:

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB
	Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 7200+ MHz
	• 1DPC 2R Max speed up to 6600+ MHz
	• 2DPC 1R Max speed up to 6400+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™
	Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	4x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	6x SATA 6G
Raid	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	4x USB 5Gbps Type A (Front)
	1x USB 10Gbps Type A (Rear)
	1x USB 10Gbps Type C (Front)
	1x USB 20Gbps Type C (Rear)
LAN	Intel® 2.5Gbps LAN
Wireless LAN & Bluetooth	Intel® Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth® 5.3, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec
	7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	6x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	2x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	1x USB4 card connector (JTBT_U4_1, supports RTD3)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
LED Feature	4x EZ Debug LED
Back Panel Ports	Keyboard / Mouse
	DisplayPort
	USB 2.0
	2.5G LAN Port
	Wi-Fi / Bluetooth Antenna
	Audio Connectors
	Flash BIOS Button
	USB 2.0
	HDMI™ 2.1 Port
	USB 3.2 Gen 1 5Gbps Type-A
	USB 3.2 Gen 2x2 20Gbps Type-C
	USB 3.2 Gen 2 10Gbps Type-A
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	ATX
	243.84mmx304.8mm
