Ryzen 7 Gaming PC, Ryzen 7 9850X3D, RTX 5090 32GB, Windows 11 Pro

Thermaltake View 380 XL WS ARGB Mid Tower ATX Gaming Case

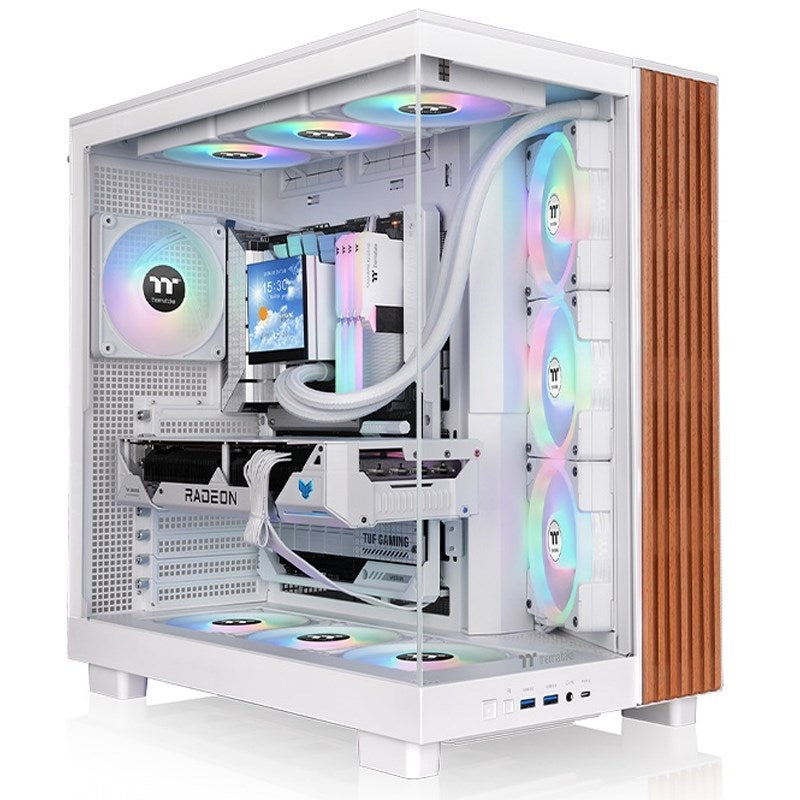

The View 380 XL WS ARGB Mid Tower Chassis

The View 380 XL WS ARGB Mid Tower Chassis is a dual-chamber ATX case accented with stylish wood elements. It supports Hidden-Connector Motherboards, comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and offers space for a 360mm radiator on both the top and motherboard side. With support for up to ten 120mm fans, a built-in GPU holder, convenient front I/O ports, a recessed bottom compartment, and an angled motherboard side design, it provides users with greater flexibility to create their ideal build.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

Dual Chamber Design

The dual chamber design provides more build space, better cable management, and improved airflow for better flexibility.

Built-in GPU Holder

The built-in GPU holder prevents graphics card sagging with extra support.

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type-C and one HD Audio are placed on the top panel to grant direct access when needed.

What are the benefits of Thermaltake View 380 XL WS Gaming Case ?

• Dual-chamber design improves airflow, cable management, and build flexibility.

• Supports hidden-connector motherboards for a cleaner and more organized setup.

• Four pre-installed ARGB fans provide efficient cooling and customizable lighting.

• Supports up to ten fans and dual 360mm radiators for high-performance cooling.

• Built-in GPU holder prevents graphics card sag and improves stability.

• Stylish wood accents add a premium look to your gaming setup.

• Spacious ATX design offers excellent compatibility for powerful gaming components.

Series

View

Model

View 380 XL WS ARGB

CASE TYPE

Mid Tower

Dimension (H x W x D)

471x 288 x 473 mm

PANEL

4mm Tempered Glass x 2

MATERIAL

SPCC

COOLING SYSTEM

Right(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays

1 x 3.5", 2 x 2.5" or 3 x 2.5"

EXPANSION SLOTS

8

MOTHERBOARDS

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)

Hidden-Connector Motherboard

9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT

Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm

CLEARANCE

CPU cooler max height: 160mm

VGA max length: 420mm

PSU max length: 180mm
