TP-Link Arched C6 AC1200 Wireless MU-MIMO Gigabit Router

Supports 802.11ac standard

Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth

4 external antennas and one internal antenna provide stable wireless connections and optimal coverage

Easy network management at your fingertips with TP-Link Tether

MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once

Supports Access Point mode to create a new Wi-Fi access point

Smooth Entertainment with AC1200 Dual Band Wi-Fi

The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.

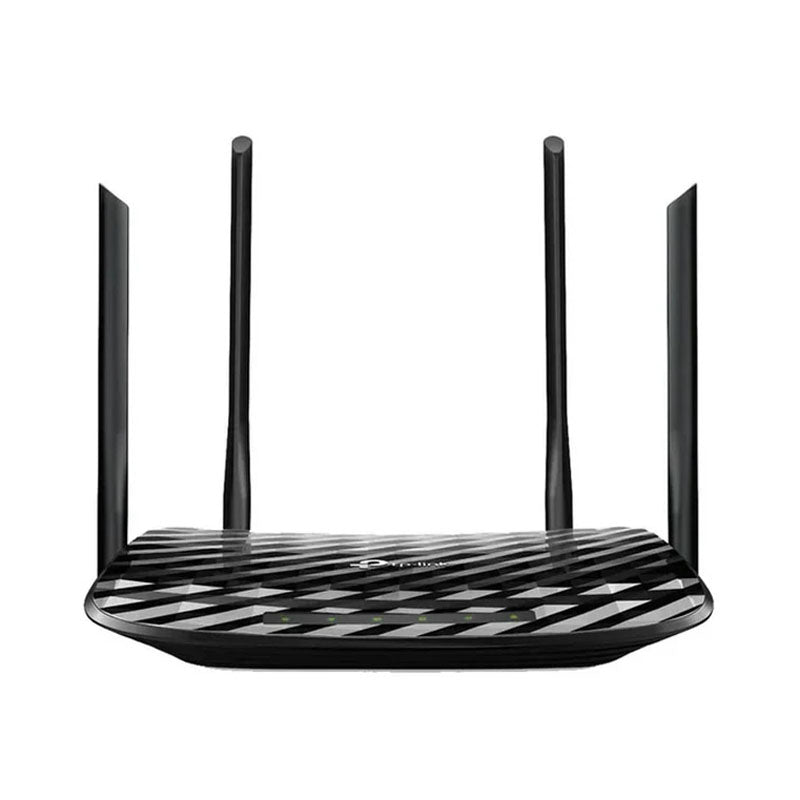

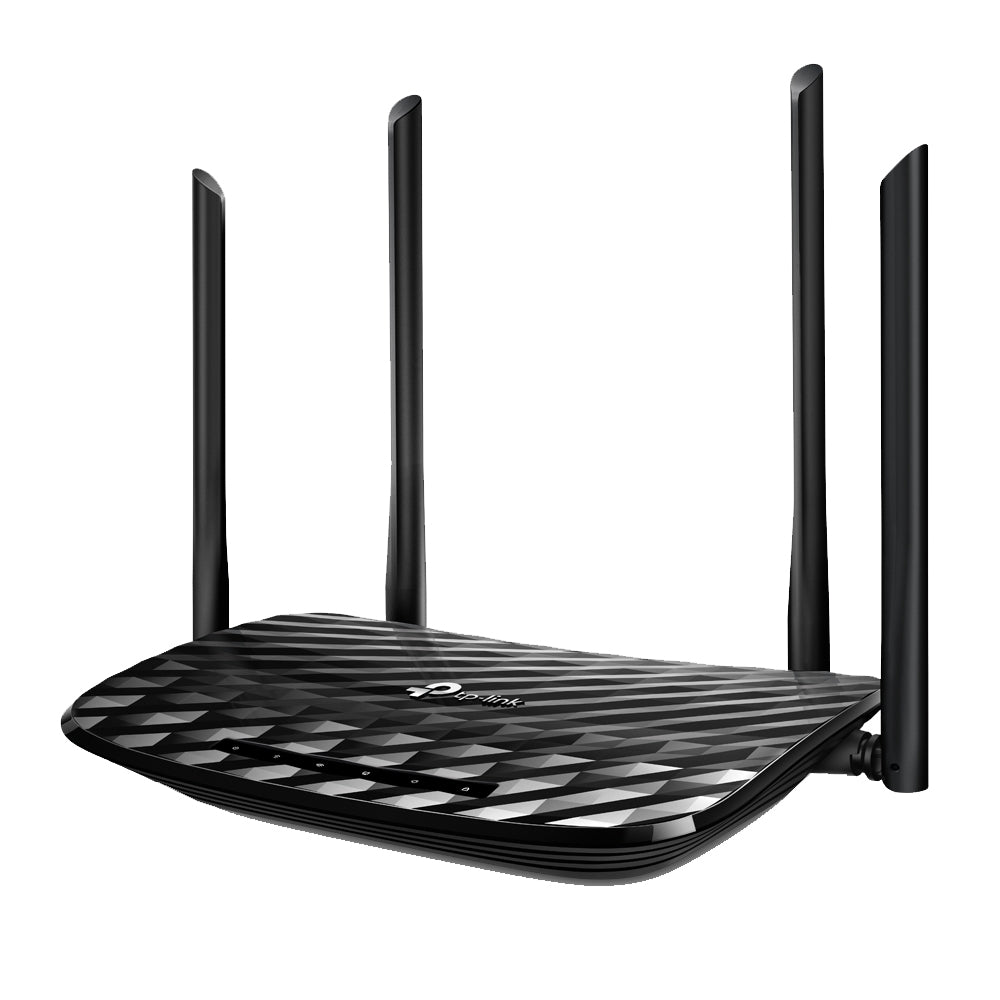

5 High-Performance Antennas
Wi-Fi Coverage throughout Your Home

Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.

It’s An Access Point, Too

Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO Matters
Increase Speed, Throughput, Capacity

MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently

Gigabit Connectivity, 10× Faster

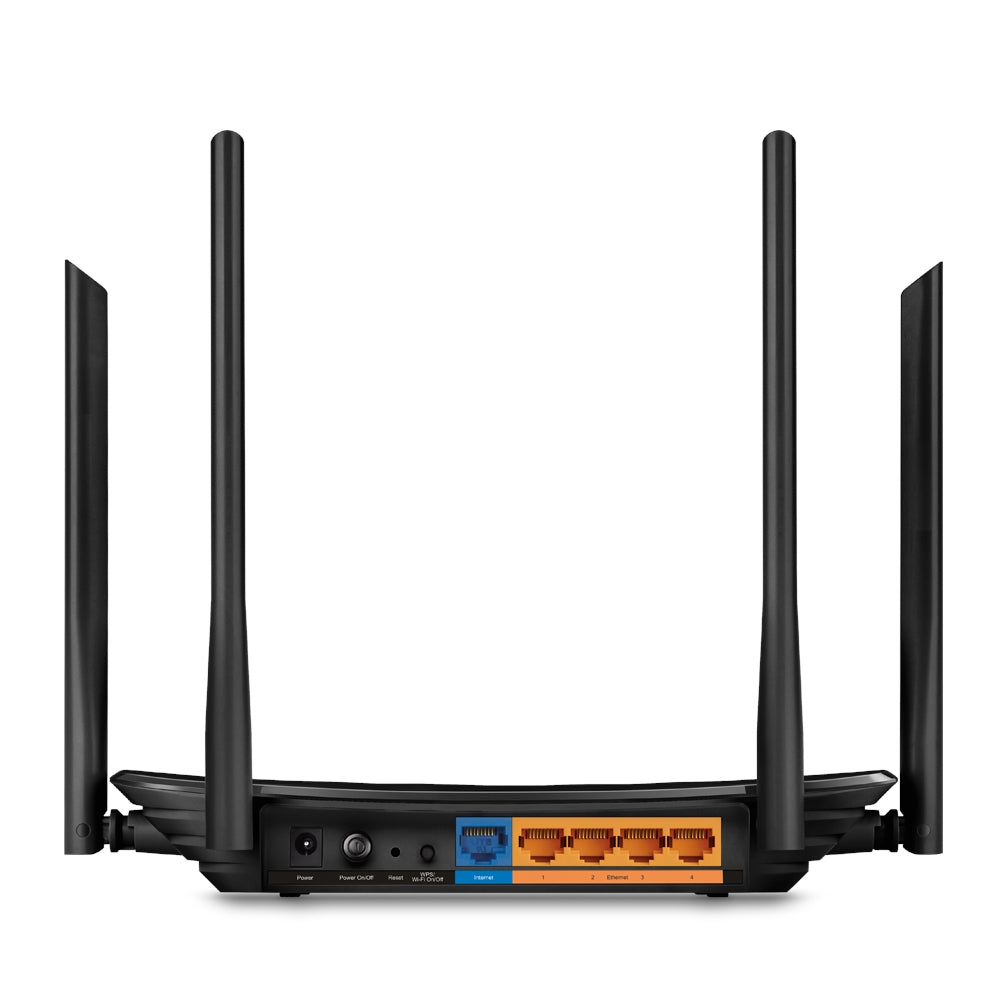

With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than standard Ethernet connections. Connect your favorite wired devices to the Archer C6 and get impressed

Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.

Specifications:

Wireless Standards:

IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency:

2.4GHz and 5GHz

Signal Rate:

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Reception Sensitivity:

5GHz

11a 6Mbps:-93dBm, 11a 54Mbps: 78dB

11ac HT20 mcs8:69dB, 11ac HT40 mcs9: 65dBm

11ac HT80 mcs9: 62dBm

2.4GHz

11g 54Mbps: 78dBm

11n HT20 mcs7: 74dBm

11n HT40 mcs7: 71dbm

Transmit Power:

CE EIRP: 20dBm(2.4GHz), 23dBm(5GHz)

Wireless Functions:

Enable/Disable Wireless Radio, WDS Bridge, WMM

Wireless Statistics

Wireless Security:

64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

Ports:

4 - 10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port

Button:

Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button

Power Supply:

12V/1A

Dimensions ( W x D x H):

9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)

Antenna:

4 Fixed Omni Directional Antennas
