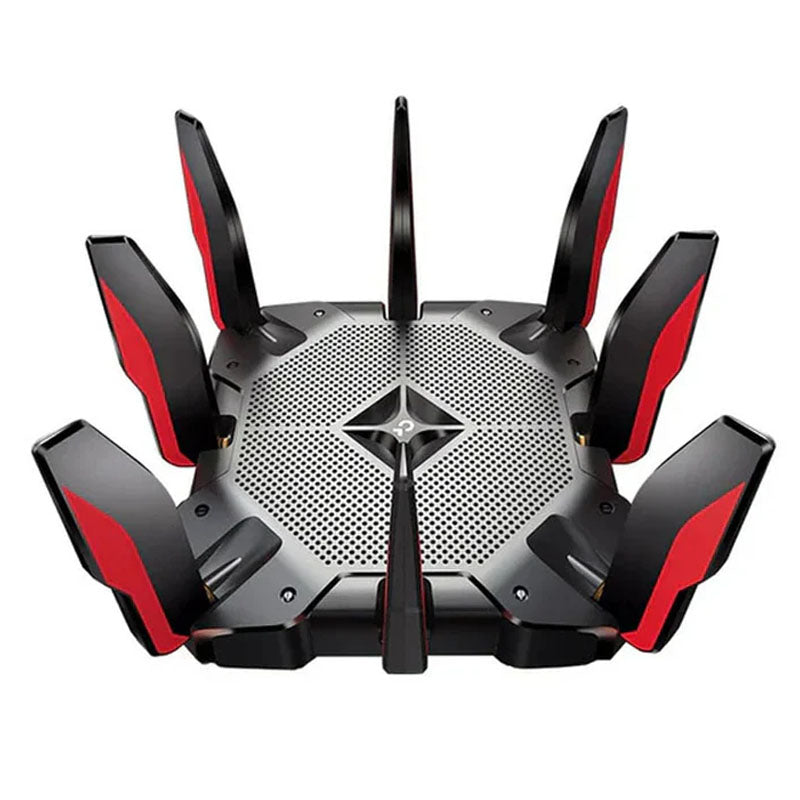

TP-Link AX11000 Next-Gen Tri-Band Gaming Router, Ultra-Fast Wi-Fi for Extreme Gaming

Enter the 10 Gbps WI-Fi Era

Higher speeds make less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

Lightning Attack to Defeat Latency

More connected devices mean more fun, without dragging down performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

Crush the Lag Win the Game

GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

Know Your Network

GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

Keep All Elements Security

GAME PROTECTOR keeps your accounts and system safe. This enhanced HomeCare security system is powered by Trend Micro, delivering comprehensive antivirus protection that ensures your total security while gaming online.

Game on the Fast Lane

GAMING BAND a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.

DFS expands available channel automatically, get on the more vacant lane and boost the game.

Battle-Tested Hardware

Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

Specifications

Processor:

1.8 GHz 64 bit Quad-Core CPU

Memory:

1 GB RAM

512 MB Flash

Interface:

1× 2.5G/1G/100M WAN Port

8× 1G/100M/10M LAN Ports

1× USB-C 3.0 Port + 1× USB-A 3.0 Port

Button:

Wi-Fi On/Off Button

Reset Button

WPS Button

Power On/Off Button

LED on/off Button

External Power Supply:

12 V ⎓ 5 A

Dimensions ( W x D x H ):

11.3 × 11.3 × 7.2 in. (288 × 288 × 184mm)

Antenna:

8× High-Performance External Antennas

Wireless Standards:

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Frequency:

5 GHz

2.4 GHz

Signal Rate:

AX11000

5 GHz: 4804 Mbps (802.11ax)

5 GHz: 4804 Mbps (802.11ax)

2.4 GHz: 1148 Mbps (802.11ax)

Wireless Functions:

Enable/Disable Wireless Radio, Guest Network, DFS, MU-MIMO, OFDMA

Wireless Security:

WEP

WPA/WPA2

WPA2

Transmission Power:

CE:

20dBm(2.4GHz)

23dBm(5.15GHz~5.35GHz)

30dBm(5.47GHz~5.725GHz)

FCC:

30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)

24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

Guest Network:

1× 5 GHz guest network

1× 2.4 GHz guest network

Quality of Service:

Advanced Gaming Qos powered by TrendMicro

WAN Type:

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management:

Advanced Parental control powered by TrendMicro, Local Management, Remote Management

DHCP:

Server, DHCP Client List, Address Reservation

Dynamic DNS:

DynDns, NO-IP, TP-Link

VPN:

PPTP, OpenVPN

Protocols:

IPv4, IPv6

NAT:

Port Forwarding, Port Triggering, UPnP, DMZ
