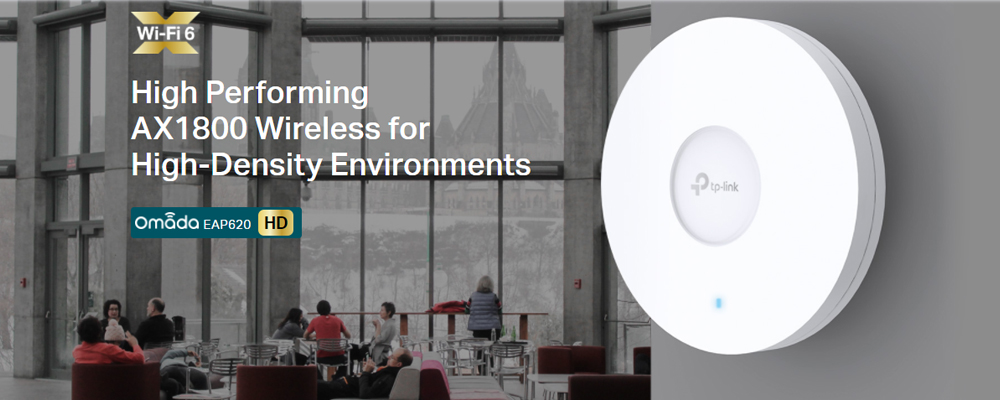

TP-Link AX1800 Wireless Ultra-Fast Wi-Fi 6 Dual Band Ceiling Mount Access Point

High-Density Connectivity with 4× Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.

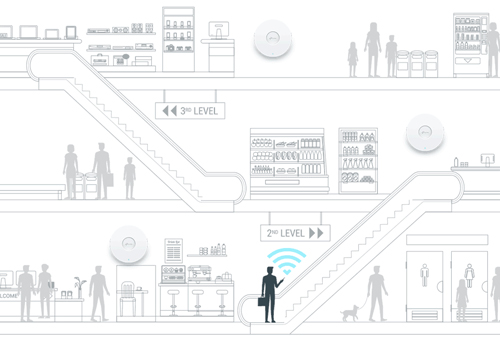

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

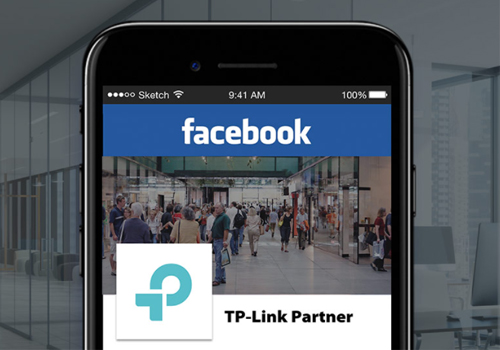

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Interface

1× Gigabit Ethernet (RJ-45) Port

(supports IEEE802.3at PoE)

Button

Reset

Power Supply

802.3at PoE or

12 V DC (Power adapter included)

Power Consumption

13.5 W

Dimensions ( W x D x H )

9.6 × 9.6 × 2.5 in.

(243 × 243 × 64 mm)

Antenna Type

Omni directional internal antennas

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Mounting

Ceiling /Wall Mounting

(Mounting kit included)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions

 1024-QAM

4× Longer OFDM Symbol

 OFDMA

 Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

 Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Seamless Roaming

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

25 dBm max. (2.4 GHz)

25 dBm max. (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes
