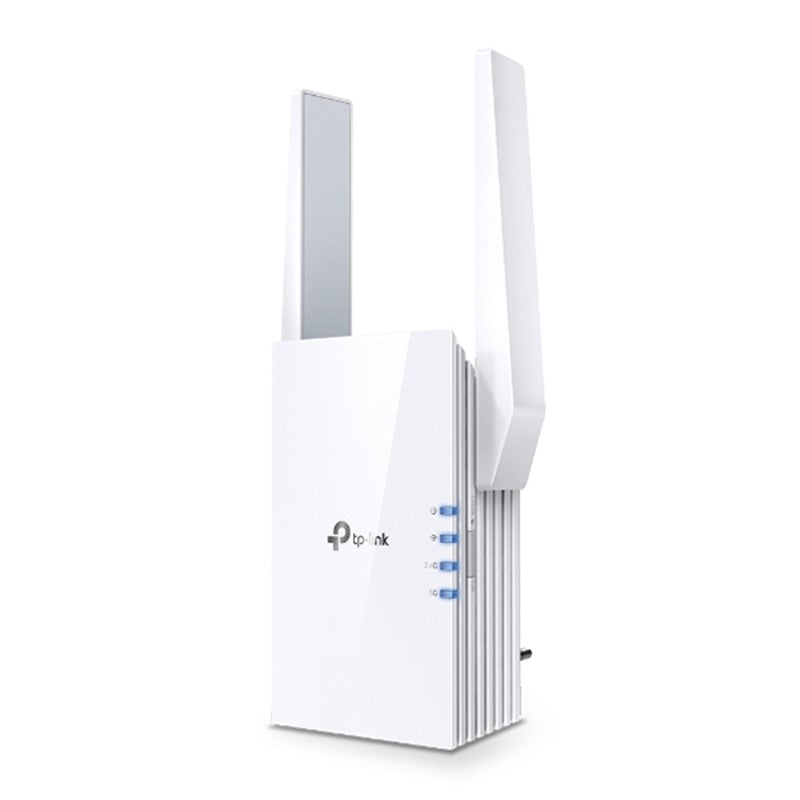

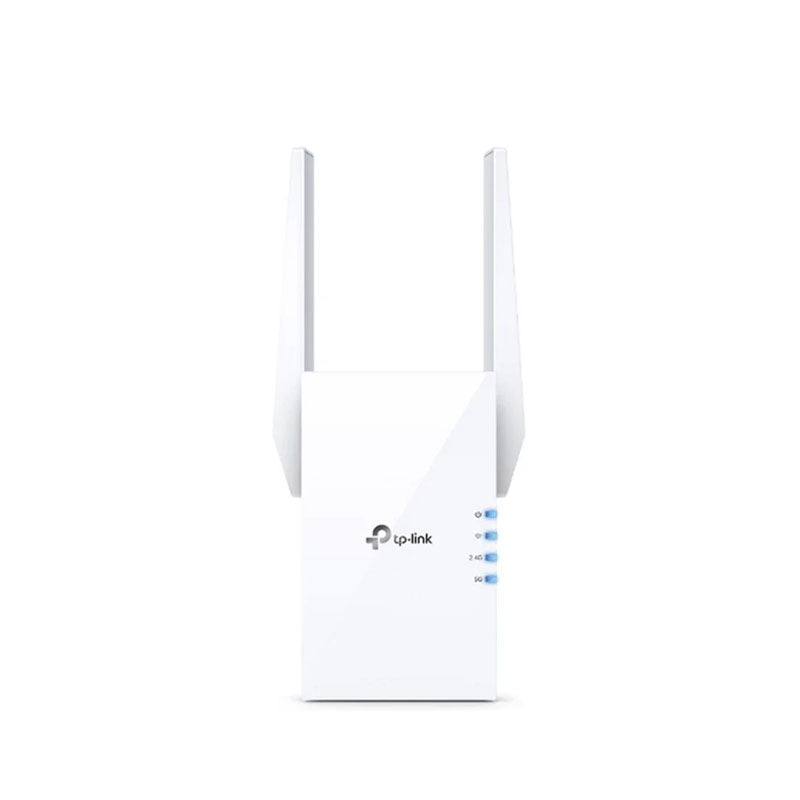

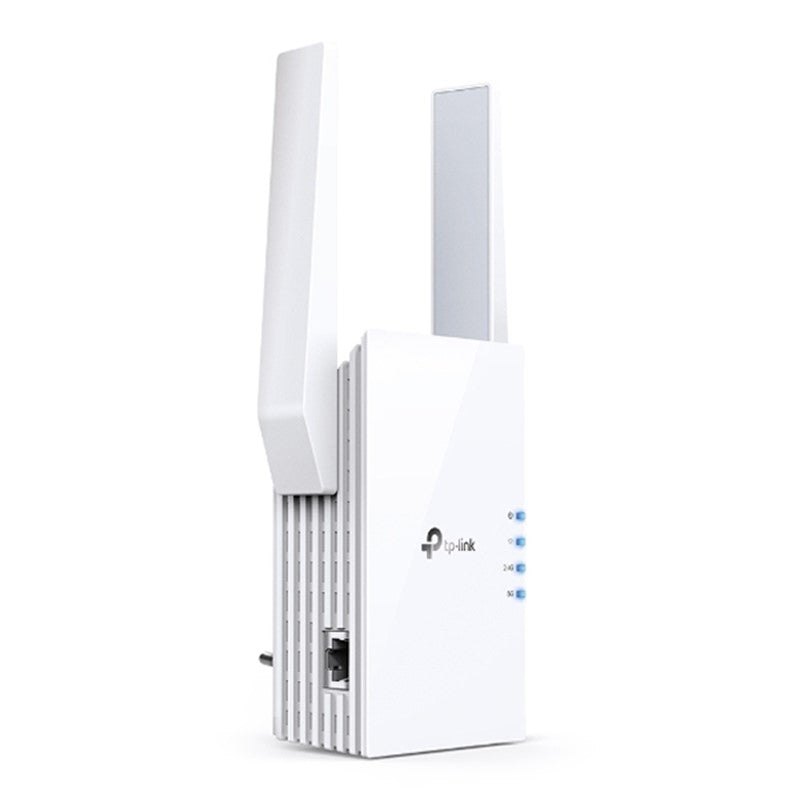

TP-Link RE605X AX1800 Wi-Fi Range Extender

Get More Range with Your Existing Router

A single router has limited WiFi coverage and always causes WiFi dead zones. RE605X wirelessly connects to your existing router and boosts more WiFi signals throughout your home, allowing you to enjoy smooth WiFi 6 network experiences everywhere with great speed, capacity, and coverage

WiFi 6

More Connections with Better Performance

The latest Wi-Fi 6 technology is built for today’s devices, eliminating lag, endless loading, and dead spots

It fully satisfies your network needs especially for bandwidth-intensive tasks like cloud gaming or 4K UHD video

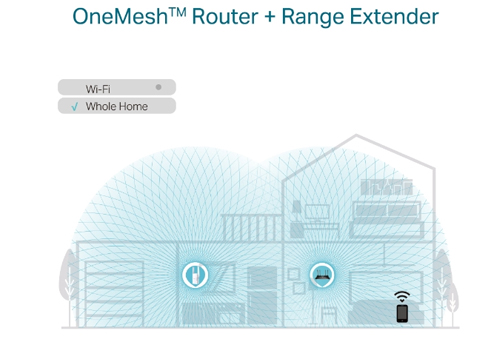

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.

Intelligent Signal Light

Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

AP Mode

create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

AX1800 Dual Band WiFi

Meeting All Your Different Networking Needs

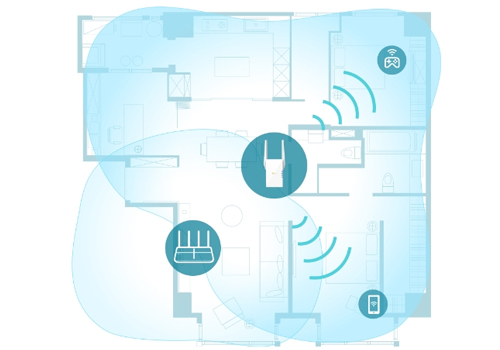

Smart Roaming: Uninterrupted streaming when moving around your home

One Wi-Fi Name: No more switching Wi-Fi network names

Easy Creation: OneMesh Router and OneMesh Range Extenders pair instantly

Unified Management: Manage the entire network all from the TP-Link Tether app

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Power Consumption

10W

Dimensions ( W x D x H )

2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna

2 External Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/x 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

574 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity

5GHz:

11a 6Mbps: -93dBm,

11a 54Mbps: -75dBm

11ac HT20 MCS0: -92dBm,

11ac HT20 MCS8: -70dBm

11ac HT40 MCS0: -90dBm,

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm,

11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,

11n HT20 MCS7: -75dBm

11n HT40 MCS7: -72dBm

Transmit Power

CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA-PSK2 encryptions

OTHERS

Package Contents

Wi-Fi Range Extender RE605X

Quick Installation Guide

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Certifications

FCC, RoHS
