Ultra 9 Gaming PC, Ultra 9 285K, RTX 5080 16GB, Windows 11 Pro

Thermaltake View 380 XL TG ARGB Mid Tower ATX Gaming Case

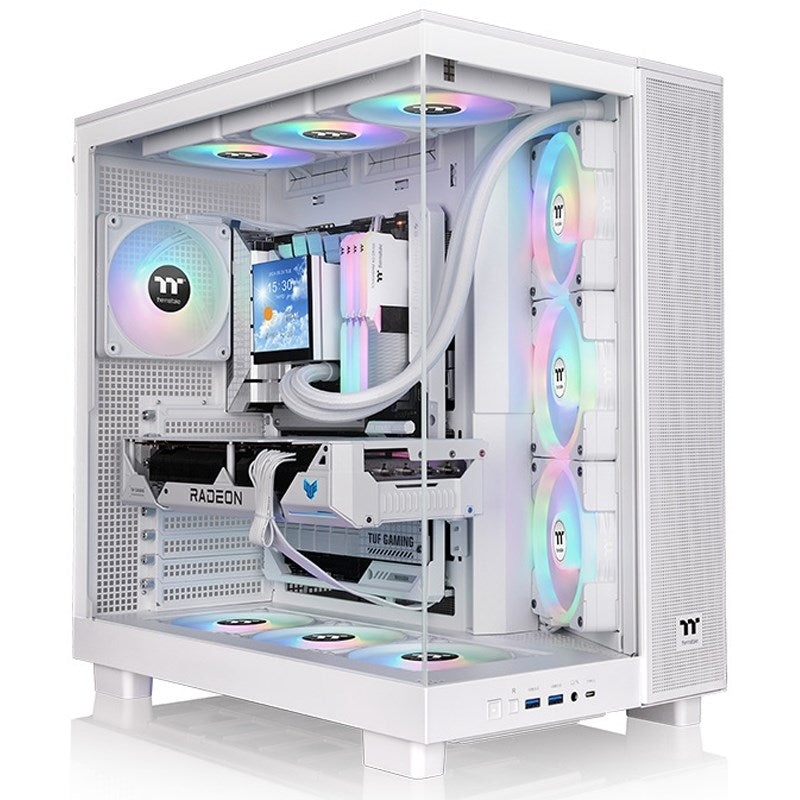

View 380 XL TG ARGB Mid Tower Chassis

The View 380 XL TG ARGB Mid Tower Chassis is a dual-chamber ATX case with Hidden-Connector Motherboard support, four 120mm Hydraulic Bearing ARGB Lite fans, and space for a 360mm radiator at both the top and motherboard side. It supports up to ten 120mm fans and features a built-in GPU holder, front I/O ports, a recessed bottom compartment, and an angled motherboard side design, offering users enhanced flexibility for their ideal build.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL TG ARGB Mid Tower Chassis features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

Dual Chamber Design

The dual-chamber design provides more build space, improved cable management and increased airflow for greater flexibility.

Tempered Glass Front and Left Panels

The View 380 XL TG ARGB Mid Tower Chassis offers enhanced visibility with tempered glass front and left panels, letting users showcase their system.

Handy I/O Ports

The bottom I/O ports include two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port, and an HD Audio port, providing convenient access when the PC case is placed on a desk.

What are the benefits of Thermaltake View 380 XL TG Gaming Case ?

Dual-chamber design improves airflow, cable management, and overall build organization.

Supports hidden-connector motherboards for a cleaner, more streamlined setup.

Four pre-installed ARGB fans provide effective cooling and vibrant lighting effects.

Supports up to ten fans and dual 360mm radiators for high-performance cooling.

Tempered glass front and side panels beautifully showcase internal components.

Built-in GPU holder helps support and protect large graphics cards.

Series

View

Model

View 380 XL TG ARGB

Dimension (H x W x D)

471 x 288 x 469 mm

PANEL

4mm Tempered Glass x 2

MATERIAL

SPCC

COOLING SYSTEM

Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays

1 x 3.5", 2 x 2.5" or 3 x 2.5"

EXPANSION SLOTS

8

MOTHERBOARDS

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT

Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm

CLEARANCE

CPU cooler max height: 160mm

VGA max length: 420mm

PSU max length: 180mm
