Apple Mac Studio M2 Ultra Customized 24-Core CPU, 76-Core GPU, 64GB RAM, 1TB SSD

M2 Ultra

Built from two M2 Max chips, M2 Ultra lets you power through workflows on an unprecedented scale. So you can quickly transcode and export videos, run complex particle simulations or work with massive 3D environments that were previously impossible to render.

And with twice the media engine resources, M2 Ultra can support up to 22 streams of 8K ProRes 422 video playback something no other personal computer can do

Plays it cool and quiet.

Within the 19.70 cm (7.7”) square Mac Studio enclosure lies a groundbreaking thermal system designed to let M2 Max and M2 Ultra fly through intensive tasks at lightning-fast speeds.

Even with so much incredible power, Mac Studio is able to stay whisper quiet, so it never interferes with your workflow.

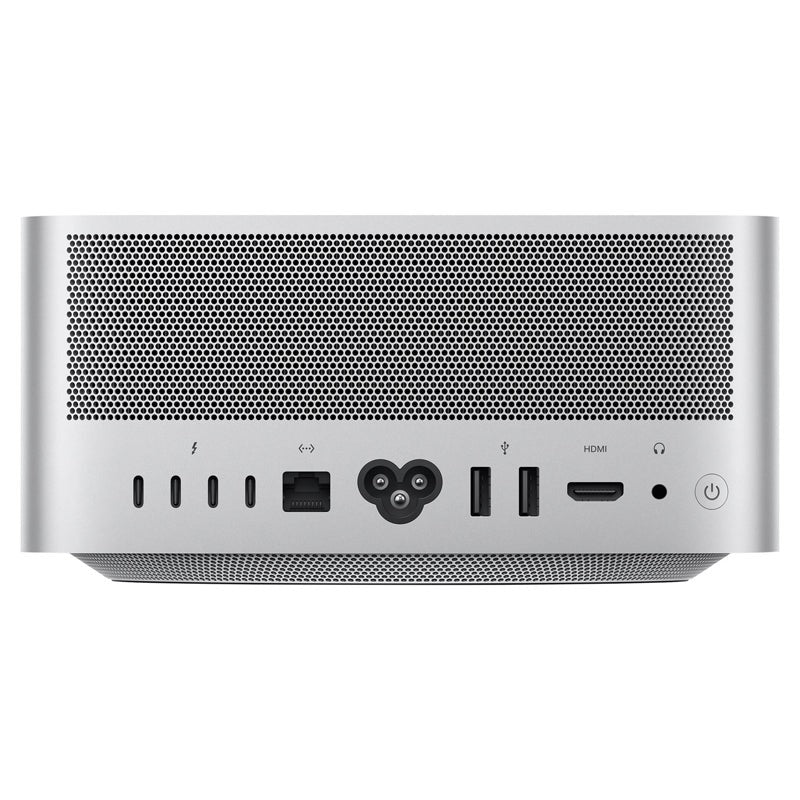

Powerful connections.

Mac Studio lets you create the studio of your dreams with an array of 12 high-performance ports. Transfer photos and videos with an SDXC card reader.

Connect to TVs or displays with an enhanced HDMI output that supports up to 8K resolution. Sync with next-generation accessories using Bluetooth 5.3. And enjoy up to two times faster throughput with Wi‑Fi 6E

Transform your studio.

With its shockingly compact form factor and abundance of ports, Mac Studio lets you reimagine your workspace and unleash your creativity.

macOS and pro apps

macOS was not only designed to be powerful, intuitive, and reliably up to date, but also to scale with Apple silicon.

This means the system automatically benefits from the increased graphics, massive memory, and powerful machine learning

Brand

Apple

Color

Silver

RAM

64GB

Storage

1TB SSD

Chip

Apple M2 Ultra chip

24-core CPU with 16 performance cores and 8 efficiency cores

76-core GPU

32-core Neural Engine

800GB/s memory bandwidth

Display Support

M2 Ultra

Simultaneous support for up to eight displays:

Eight displays with up to 4K resolution at 60Hz

Six displays with up to 6K resolution at 60Hz

Three displays with up to 8K resolution at 60Hz

Thunderbolt 4 digital video output

Support for native DisplayPort output over USB‑C

HDMI display video output

Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

Support for variable refresh rate (VRR), HDR and multichannel audio

Audio

Audio

Built-in speaker

3.5 mm headphone jack with advanced support for high-impedance headphones

HDMI port supports multichannel audio output

Connections and Expansion

Thunderbolt 4 (up to 40 Gbps)

DisplayPort

USB 4 (up to 40 Gbps)

USB 3.1 Gen 2 (up to 10 Gbps)

Two USB-A ports (up to 5 Gbps)

HDMI port

10Gb Ethernet

3.5 mm headphone jack

Communications

Wi-Fi

Wi-Fi 6E (802.11ax)

Bluetooth

Bluetooth 5.3

Size and Weight

Height: 9.50 cm (3.7”)

Width: 19.70 cm (7.7”)

Depth: 19.70 cm (7.7”)

Weight (M2 Ultra): 3.62 kg (7.97 pounds)

Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 370W

Operating temperature: 10° to 35° C (50° to 95° F)

Storage temperature: –40° to 47° C (–40° to 116° F)

Relative humidity: 5% to 95% non-condensing

Operating altitude: tested up to 5,000 metres (16,400 feet)

Operating System

macOS
