Asus PRIME B760M-A WIFI M-ATX Gaming Motherboard

Asus

Asus PRIME B760M-A WIFI M-ATX Gaming Motherboard

Name: Asus PRIME B760M-A WIFI M-ATX Gaming Motherboard
Brand: Asus
SKU: 90MB1EL0-M1EAY0
Price: 52.0 KWD
Availability: InStock
Rating: 5.0 (10 reviews)

كود المنتج: 90MB1EL0-M1EAY0

السعر قبل :

52.000 KD

كمية

مخزون منخفض

1 عنصر في المخزون

في المخزن

إنتهى من المخزن

مرة أخرى في المخزون

الخصائص
وصف
معلومات الشحن

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors

Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Asus PRIME B760M-A WIFI mATX Gaming Motherboard

PRIME B760M-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Specifications:

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B760 Chipset
Memory	4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Graphics	1 x DisplayPort, 2 x HDMITM ports, Graphics specifications may vary between CPU types. Supports max. 4K@60Hz as specified in DisplayPort 1.4., * Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots	Intel® 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel® B760 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage	Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2
USB	Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 10 ports), 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

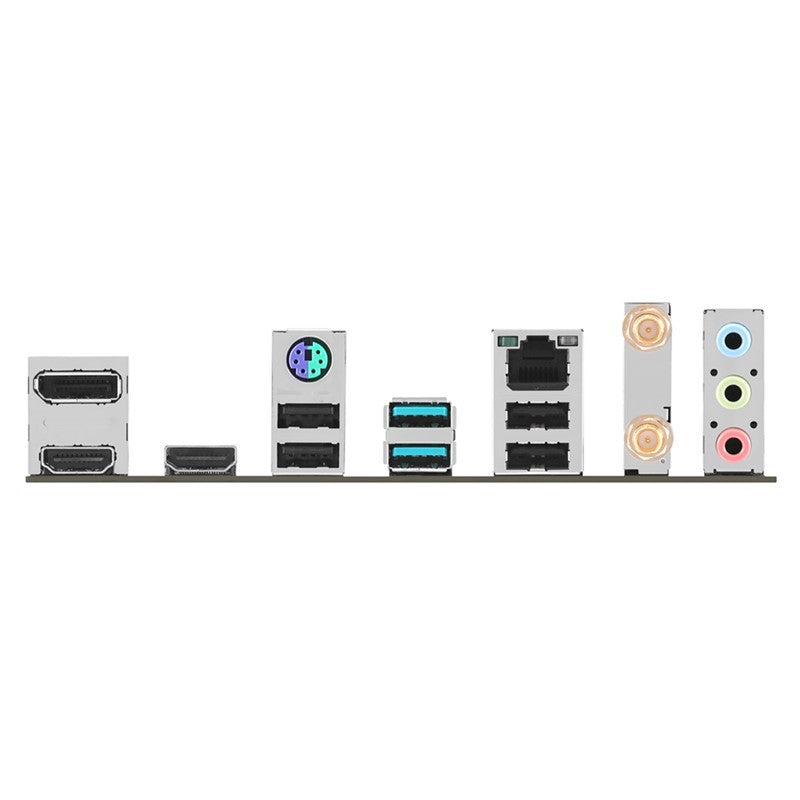

Back Panel I/O Ports	2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMITM ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, Power related, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB, 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x LPT header, 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function
Special Features	ASUS 5X PROTECTION III, - DIGI+ VRM, - LANGuard, - Overvoltage Protection, - SafeSlot Core+, - Stainless-Steel Back I/O, ASUS Q-Design, - Q-DIMM, - Q-LED Core, - Q-Slot, ASUS Thermal Solution, - M.2 heatsink, - VRM heatsink design, ASUS EZ DIY, - ProCool, Aura Sync, - Aura RGB header, - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software, Armoury Crate, - Aura Creator, - Aura Sync, - Fan Xpert 2+, - Power Saving, AI Suite 3, - Digi+ VRM, - PC Cleaner, ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY, - ASUS CrashFree BIOS 3, - ASUS EZ Flash 3, - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, Documentation, 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

نوفر خدمة التوصيل لجميع المناطق في الكويت في غضون 2 - 3 أيام عمل محليا و 5-7 أيام عمل خارج الكويت. يرجى ملاحظة أنه خلال المواسم قد نواجه تأخيرات في شحن الطلب بسبب ارتفاع حجم الطلبات

تسجيل الدخول

Asus PRIME B760M-A WIFI M-ATX Gaming Motherboard

Asus PRIME B760M-A WIFI mATX Gaming Motherboard

PRIME B760M-A WIFI

Specifications:

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

Graphics

1 x DisplayPort, 2 x HDMITM ports, Graphics specifications may vary between CPU types. Supports max. 4K@60Hz as specified in DisplayPort 1.4., * Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

Intel® 13th & 12th Gen Processors, 1 x PCIe 4.0 x16 slot, Intel® B760 Chipset, 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth v5.2

USB

Audio

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 2 x HDMITM ports, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Special Features

Software Features

ASUS Exclusive Software, Armoury Crate, - Aura Creator, - Aura Sync, - Fan Xpert 2+, - Power Saving, AI Suite 3, - Digi+ VRM, - PC Cleaner, ASUS CPU-Z, MyAsus, Norton Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, ASUS EZ DIY, - ASUS CrashFree BIOS 3, - ASUS EZ Flash 3, - ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, Documentation, 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
