Asus PRIME B760M-R DDR4 micro-ATX Gaming Motherboard

كود المنتج: 90MB1HA0-M0EAY0

السعر قبل :

36.000 KD

كمية

مخزون منخفض

0 عنصر في المخزون

في المخزن

إنتهى من المخزن

مرة أخرى في المخزون

الخصائص
وصف
معلومات الشحن

Chipset Compatibility: Supports Intel 12th and 13th Gen Core processors for high performance.

Memory Support: Four DDR4 DIMM slots with dual-channel architecture for up to 128 GB RAM.

Connectivity Options: Includes USB 3.2, HDMI, and PCIe 4.0 slots for versatile peripheral connections.

Enhanced Cooling: Integrated cooling solutions to maintain optimal temperatures during heavy use.

Micro-ATX Form Factor: Compact design fits easily into smaller cases while providing ample expansion options.

Asus PRIME B760M-R DDR4 micro-ATX Gaming Motherboard

Intel LGA 1700 Socket

Ready for 14th,13th and 12th Gen Intel processors

Ultrafast Connectivity

PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support

Comprehensive Cooling

VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Aura Sync RGB Lighting

Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares

Two-Way AI Noise Cancelation

Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

Specifications:

Model	PRIME B760M-R D4
CPU	Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors.
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.
Chipset	Intel B760 Chipset
Memory	2 x DIMM slots, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
	Dual channel memory architecture
	Supports Intel Extreme Memory Profile (XMP) memory module.
Graphics	1 x HDMITM port
	Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® Core™ Processors	1 x PCIe 4.0 x16 slot
Intel® B760 Chipset	2 x PCIe 4.0 x1 slots.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5GB Ethernet
USB
Rear USB	(Total 8 ports)
	4 x USB 5Gbps ports (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
Front USB	(Total 6 ports)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers

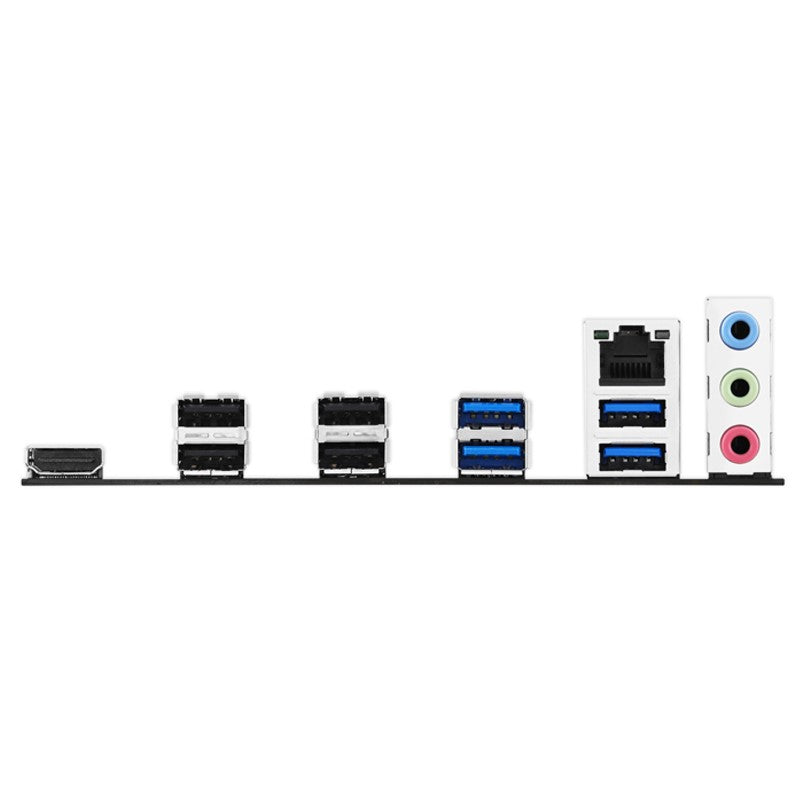

Back Panel I/O Ports	4 x USB 5Gbps ports (4 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x HDMITM port
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related	1 x 4-pin CPU Fan header
	2 x 4-pin Chassis Fan headers
Power Related	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
Storage Related	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
USB	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous	3 x Addressable Gen 2 headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front panel audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x Speaker header
	1 x SPI TPM header (14-1pin)
	1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III	DIGI+ VRM
	LANGuard
	Overvoltage protection
	SafeSlot Core
	Stainless-steel back I/O
ASUS Q-Design	Q-DIMM
	Q-LED Core
	Q-Slot
ASUS EZ DIY	ProCool
ASUS Thermal Solution	VRM heatsink design
Aura Sync	Addressable Gen 2 headers
Software Features
ASUS Exclusive Software	Armoury Crate
	Aura Sync
	Fan Xpert 2+
	Power Saving
	Two-Way AI Noise Cancelation
	AI Suite 3
	DIGI+ VRM
	PC Cleaner
	ASUS CPU-Z
UEFI BIOS	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
BIOS	128 MB Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor
	9.6" x 8.3" (24.4 cm x 21.1 cm)
