Elgato XLR Dock For Stream Deck +

Elgato XLR Dock For Stream Deck +

Compact XLR Mic Interface for Stream Deck+

Add a professional XLR microphone to your streaming capture with the XLR Dock for Stream Deck+ from Elgato.

This audio interface enables you to connect a 3-pin XLR microphone via USB-C to your separately available Stream Deck+ and then link both the deck and XLR dock to your computer via a single USB-C cable, freeing up a USB-C port.

Streamlined Design

Designed to replace standalone XLR interfaces used with the Stream Deck+

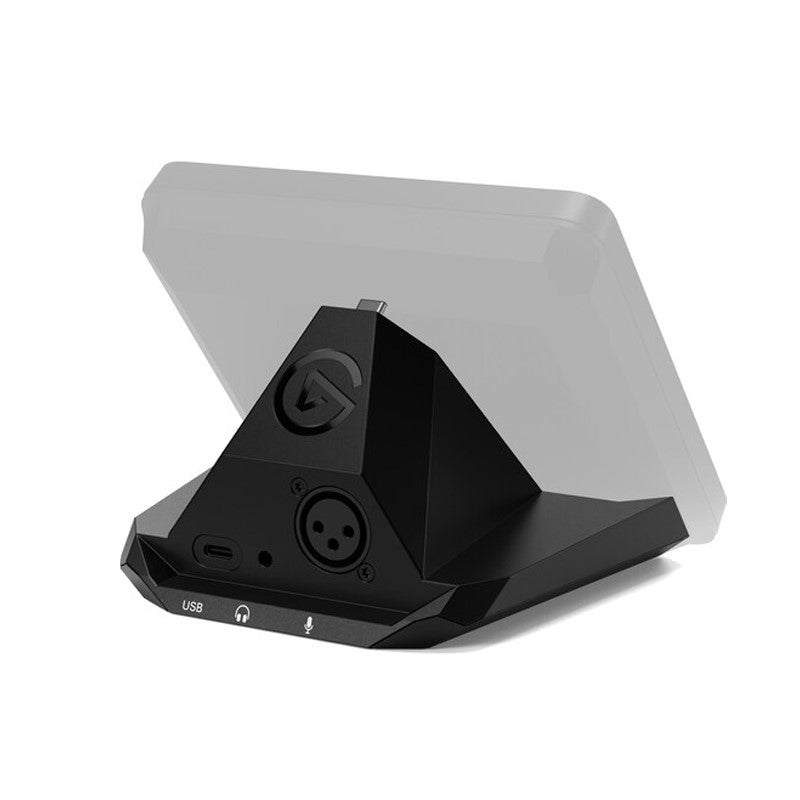

Mounts neatly behind your Stream Deck+ for a sleek, space-saving look

Streamlined Design

Customize the Stream Deck+'s buttons and knobs to mix audio how you like

Provides 48V power for using condenser mics

Robust Audio without Distortion

With 75 dB of gain and Elgato Clipguard technology, you can get loud audio without distortion.

Maximum Sampling Rate

48 kHz / 24-Bit

Number of Microphone Inputs

1

Input Level Adjustment

Via Touchscreen

Gain/Trim Range

0 to 75 dB

Analog Audio I/O

1x XLR 3-Pin Mic Input

Phantom Power

48 V, Selectable On/Off

Host Connection

USB-C

Host Connection Protocol

USB 2.0

Frequency Response

20 Hz to 20 kHz

Maximum Input Level

10 V for 0 dBFS (with Clipguard)

Headphone Output Power

77 mW

Dynamic Range

100 dB (120 dB with Clipguard)

Sample Rates

48 kHz

Bit Depths

24-Bit

OS Compatibility

macOS 13 or Later / Windows 10 or Later

Power Requirements

DC Input

Dimensions

5.4 x 4.5 x 3" / 137 x 115 x 76mm

Weight

6.0 oz / 169.0 g
