Gigabyte H510M H V2 (rev. 1.0) M-ATX Gaming Motherboard

كود المنتج: H510M H V2 DDR4

السعر قبل :

24.900 KD

كمية

مخزون منخفض

0 عنصر في المخزون

في المخزن

إنتهى من المخزن

مرة أخرى في المخزون

الخصائص
وصف
معلومات الشحن

Supports 11th/10th Gen Intel Core Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

8-Channel HD Audio with High Quality Audio Capacitors

NVMe PCIe Gen3 x4 2280 M.2 Connector

GbE LAN with Bandwidth Management

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design

Gigabyte H510M H V2 (rev. 1.0) M-ATX Gaming Motherboard

Specifications:

CPU
LGA1200 package:	1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
	2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
	3. L3 cache varies with CPU
Chipset	1. Intel® H470 Express Chipset
Memory	1. 11th Generation Intel® Core™ i9/i7/i5 processors:
	Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
	2. 10th Generation Intel® Core™ i9/i7 processors:
	Support for DDR4 2933/2666/2400/2133 MHz memory modules
	3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
	Support for DDR4 2666/2400/2133 MHz memory modules
	4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	5. Dual channel memory architecture
	6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	8. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.3.
	2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	* The D-Sub port is only available with the 10th Generation processors.
	(Graphics specifications may vary depending on CPU support.)
Audio	1. Realtek® Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Chipset:
	1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
	2. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
	* Supported with an additional PCIe to M.2 NVMe SSD adapter card
	RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x system fan header
	5. 1 x RGB LED strip header
	6. 1 x M.2 Socket 3 connector
	7. 4 x SATA 6Gb/s connectors
	8. 1 x front panel header
	9. 1 x front panel audio header
	10. 1 x USB 3.2 Gen 1 header
	11. 1 x USB 2.0/1.1 header
	12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	13. 1 x serial port header
	14. 1 x Clear CMOS jumper

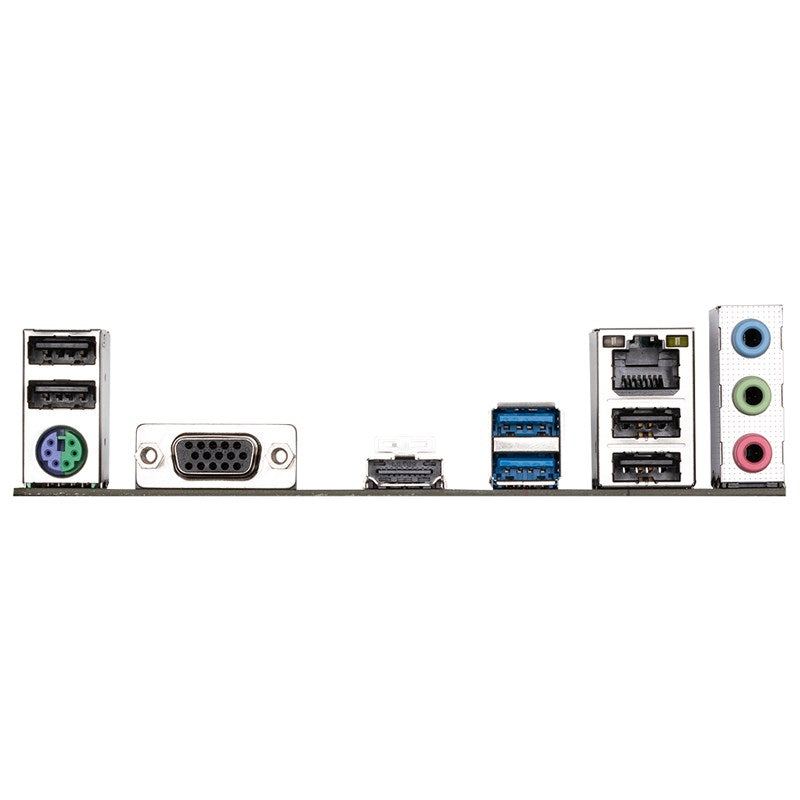

Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 1 x D-Sub port
	3. 1 x HDMI port
	4. 2 x USB 3.2 Gen 1 ports
	5. 4 x USB 2.0/1.1 ports
	6. 1 x RJ-45 port
	7. 3 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Fan fail warning
	5. Fan speed contro
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	Ambient LED
	EasyTune
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash
	3. Support for Xpress Install
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 22.6cm x 18.5cm
