Supports Intel Core 14th and 13th processors.

Digital twin 16+1+2 phases VRM solution

Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

EZ-Latch Click: M.2 heatsinks with screwless design.

EZ-Latch Plus: M.2 slots with quick release design

UC BIOS: User-Centred intuitive UX with Quick Access function

Ultra-Fast Storage: 4*PCIe 4.0 x4 M.2 slots

Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

Fast Networking: 2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna

Extended Connectivity: DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s

Precision Audio: ALC1220 & Audiophile Grade Capacitors

Gigabyte Z790 AORUS ELITE X AX ATX Gaming Graphics Card

X Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Specifications:

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
	L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® ALC1220-VB CODEC
	* The back panel line out jack supports DSD audio.
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
	- 6 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
	* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB	Chipset:
	- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
	- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the
	internal USB header
	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available
	through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
	the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	4 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x reset button
	1 x Q-Flash Plus button
	1 x Clear CMOS button
	1 x reset jumper
	1 x Clear CMOS jumper

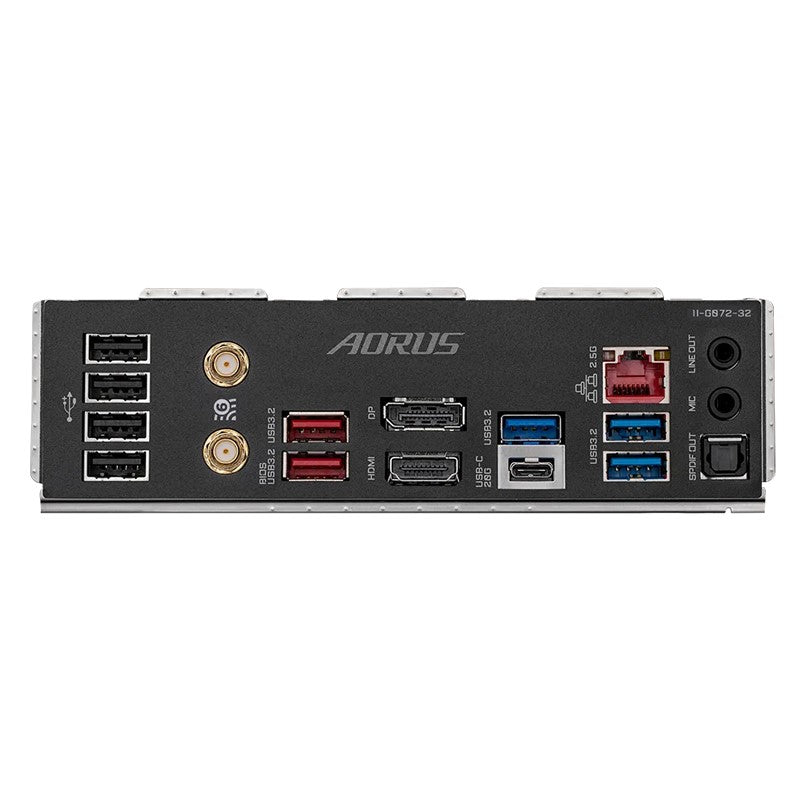

Back Panel Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
	2 x USB 3.2 Gen 2 Type-A ports (red)
	3 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	2 x SMA antenna connectors (2T2R) jk
	1 x HDMI port
	1 x DisplayPort
	1 x RJ-45 port
	1 x optical S/PDIF Out connector
	2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
