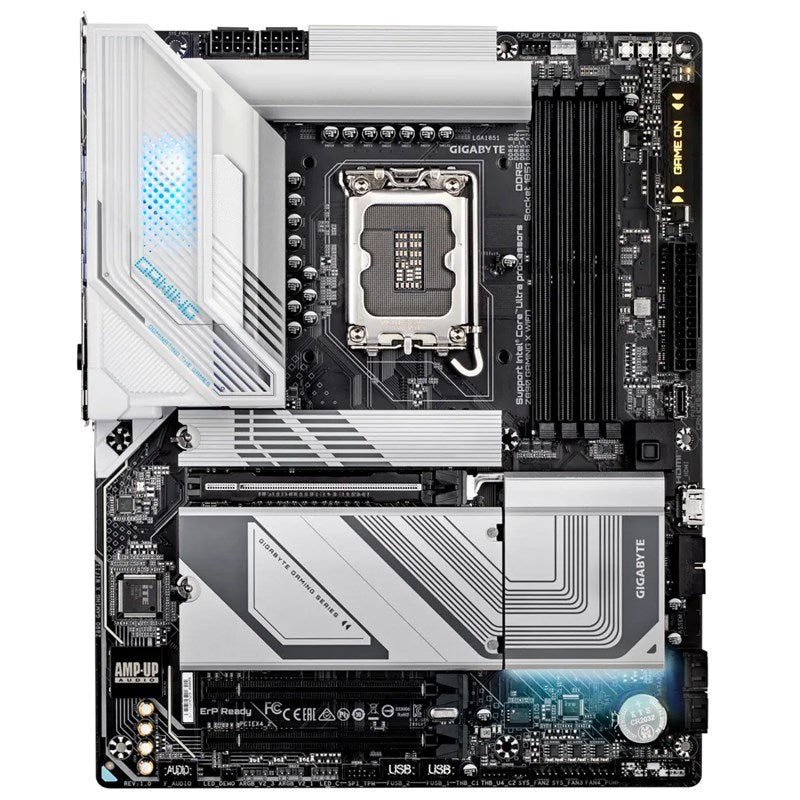

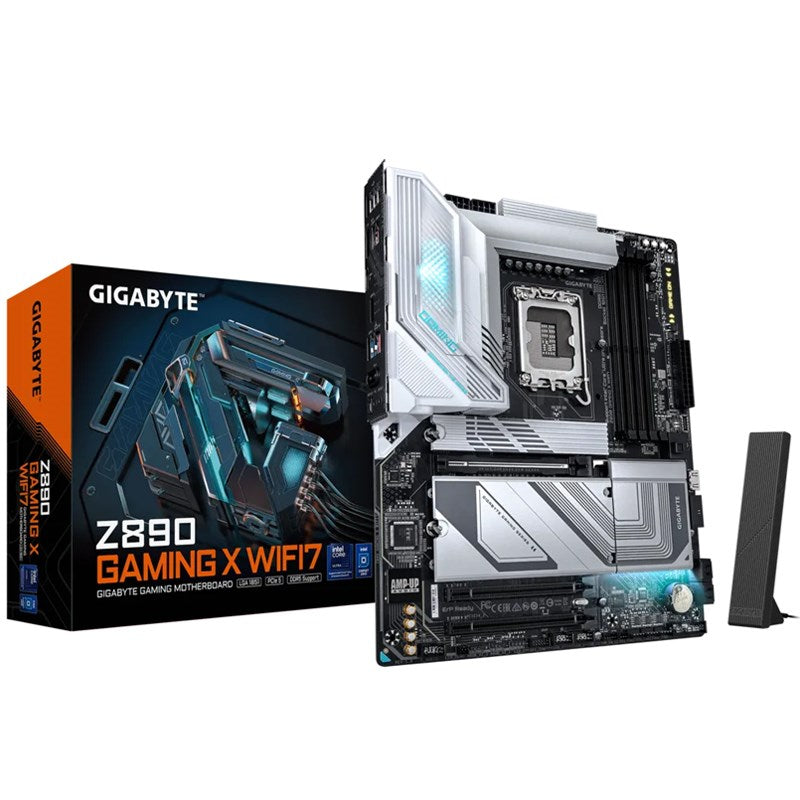

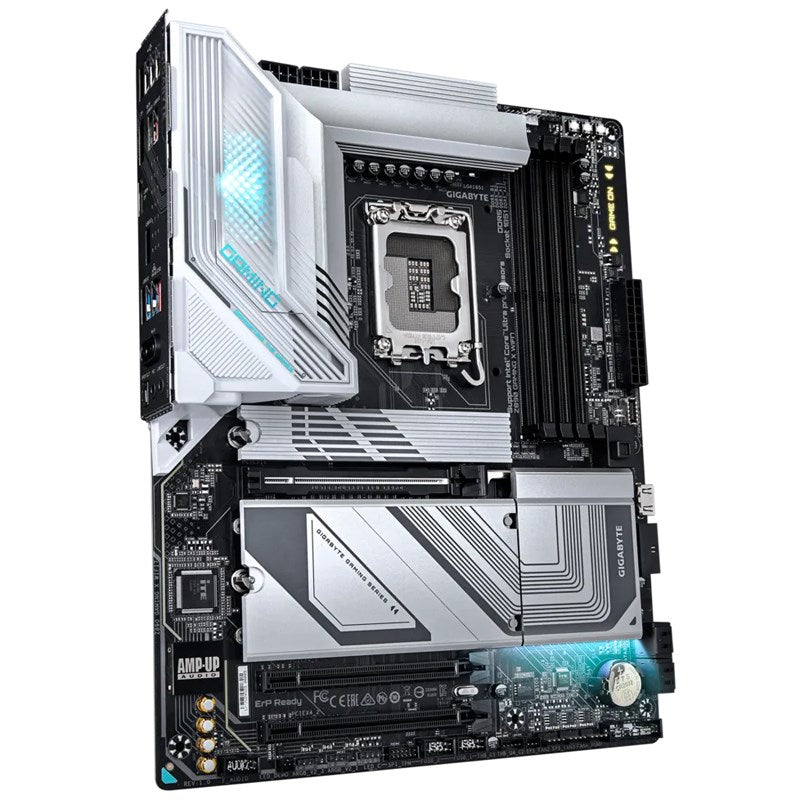

Gigabyte Z890 GAMING X WIFI 7 ATX Gaming Motherboard

Z890 GAMING X WIFI7

Designed for gamers, the matte black Z890 GAMING X WIFI 7 LGA 1851 ATX Motherboard from Gigabyte supports Intel Core Ultra Series 2 processors that fit into the LGA 1851 socket. With four DDR5 slots, one PCIe 5.0 x16 slot with UD, two PCIe 4.0 x16/x4 slots, one M.2 25110 PCIe SSD slot, two M.2 22110 PCIe SSD slots, one M.2 22110 PCIe and SATA SSD slots, and four SATA III 6 Gb/s slots, you'll be able to build a powerful gaming rig. With EZ-Latch Plus and Click, installing a graphics card and M.2 SSDs with heat sinks is user-friendly and doesn't require tools. For online connectivity, the motherboard provides fast connectivity with 2.5GbE LAN and Wi-Fi 7 (802.11be). Other integrated features include Bluetooth 5.4, support for up to 256GB of DDR5 memory with XMP support, automatic AI overclocking, two Thunderbolt add-in card connectors, and more.

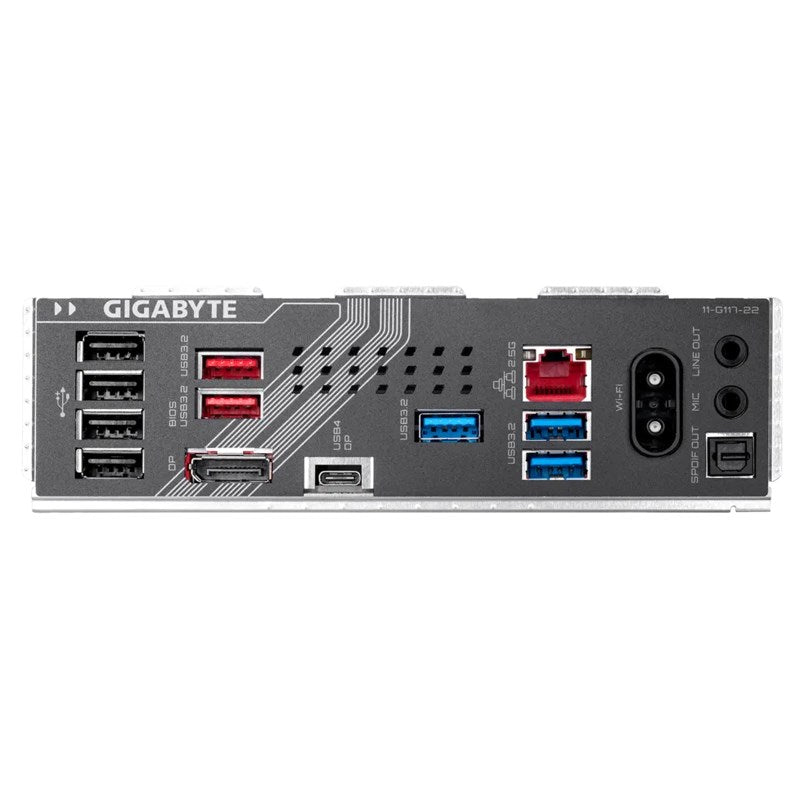

For your external peripherals, there is one USB4 port with DisplayPort (3840 x 2160 at 144 Hz), two USB-A 3.2 Gen 2 ports, three USB-A 3.2 Gen 1 ports, four USB-A 2.0 ports, one DisplayPort (3840 x 2160 at 144 Hz), two 3.5mm jacks, and an optical S/PDIF output. Rounding things out is a front HDMI 1.4 port that supports a maximum resolution of 1920 x 1080 at 30 Hz. All in all, this motherboard can support three external displays.

Please note that this motherboard requires Windows 11 (64-bit).

Supports Intel Core Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AORUS AI SNATCH

Automatic overclocking software by AI models.

AI Perfdrive

Provides optimal and customized BIOS preset profile for user.

Premium Compatibility

Four DDR5 slots with XMP memory module support.

WIFI EZ-Plug

Quick and easy design for Wi-Fi antenna installation.

EZ-Latch Plus

PCIe and M.2 slots with quick release and screwless design

EZ-Latch Click

M.2 heat sinks with screwless design.

Sensor Panel Link

Onboard video port for hassle-free in-chassis panel setup.

Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Power Monitor

New Power Monitor in HWinfo for real time monitoring on CPU power phases.

Fast Storage

Four M.2 slots, including one PCIe 5.0 x4 slot.

Efficient Thermals

VRM Thermal Armor Advanced and M.2 Thermal Guard.

Fast Networking

2.5GbE LAN & Wi-Fi 7 (802.11be) with directional ultra-high gain antenna.

Extended Connectivity

USB4 with DP-Alt mode via USB-C.

PCIe UD Slot X

PCIe 5.0 x16 slot with 10x greater strength for graphics cards.

Specifications:
