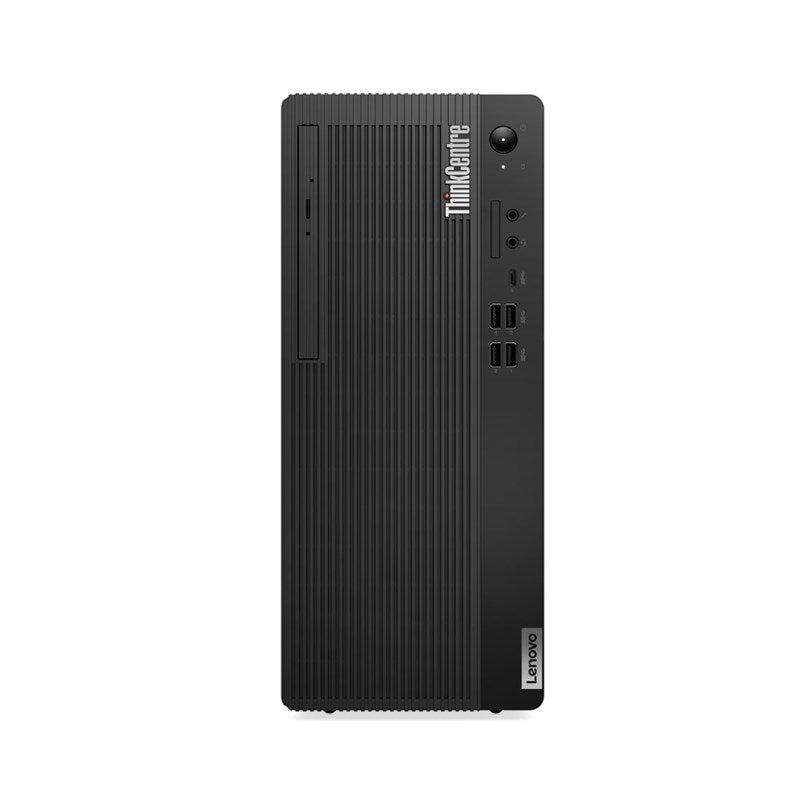

Lenovo ThinkCentre M70t Gen 5, i7-14700, 20C, 16 GB DDR5 RAM, 512 GB M.2 SSD, No DVD, Intel AX211 2x2AX_6E+BT, Internal Speaker, DOS, USB Keyboard & Mouse, English/Arabic, 1 Year Warranty

Lenovo ThinkCentre M70t Gen 5, i7-14700, 20C, 16 GB DDR5 RAM, 512 GB M.2 SSD, No DVD, Intel AX211 2x2AX_6E+BT, Internal Speaker, DOS, USB Keyboard & Mouse, English/Arabic

Intel Core i7 20-Core Performance

Driven by the Intel Core i7-14700 20-core processor to handle demanding business workloads and multitasking.

Memory & Storage

Equipped with 16 GB of DDR5 RAM and a fast 512 GB M.2 solid-state drive.

Wireless Connectivity

Features Intel AX211 2x2 Wi-Fi 6E (2x2AX_6E) and Bluetooth capabilities.

Included Peripherals & Audio

Comes bundled with an internal speaker and a USB keyboard and mouse.

DOS Environment

Ships with a DOS operating system, providing a clean base for custom operating system deployments.

Key Features

• Intel Core i7 20-Core Performance

• Memory & Storage

• Wireless Connectivity

• Included Peripherals & Audio

• DOS Environment

Processor

Intel Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB Intel Smart Cache

Graphics

Integrated Intel UHD Graphics 770

Chipset

Intel Q670 Chipset

Memory

1x 16 GB UDIMM DDR5-5600

Memory Slots

Two DDR5 UDIMM slots, dual-channel capable

Max Memory

Up to 64 GB DDR5

Storage

512 GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

Max Storage Support

Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2 TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2 TB each

Card Reader

No Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC623-CG codec

Speakers

2Wx1

Power Supply

260W 90%

Keyboard

USB Traditional Keyboard, Black, Arabic

Mouse

USB Calliope Mouse, Black

Optional Bay

None

Expansion Slots

One PCIe 3.0 x16, full-height, length ≤ 222.7mm, height ≤ 111.2mm

One PCIe 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)

Two M.2 slots (one for WLAN, one for SSD)

Case Color

Black

Dust Filter

None

Pen

Pen Not Supported

Form Factor

Tower (13.6L)

WLAN + Bluetooth

Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro

WWAN

WWAN Not Supported

Ethernet

Integrated 100/1000M

Front Ports

1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging

4x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x headphone / microphone combo jack (3.5mm)

1x microphone (3.5mm)

Rear Ports

4x USB-A (Hi-Speed USB / USB 2.0)

1x HDMI 2.1 TMDS

1x DisplayPort™ 1.4a (HBR2, DSC)

1x Ethernet (RJ-45)

Optional Rear Ports (configured)

None

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader

No fingerprint reader

Physical Locks

Smart Cable Clip

Kensington Security Slot, 3 x 7 mm

Padlock Loop

Smart Cable Clip

Smart Cable Clip
