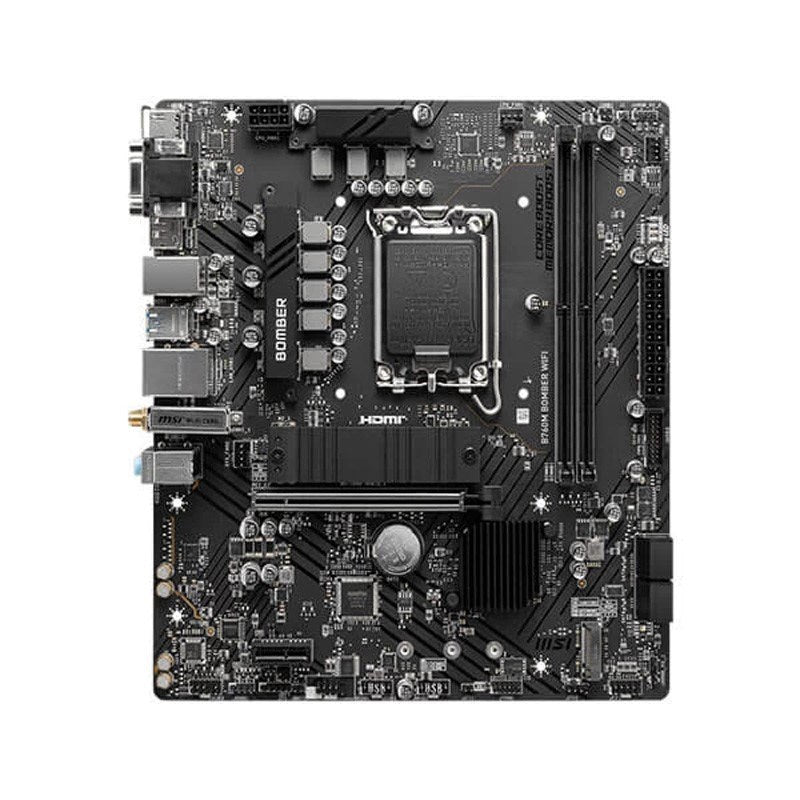

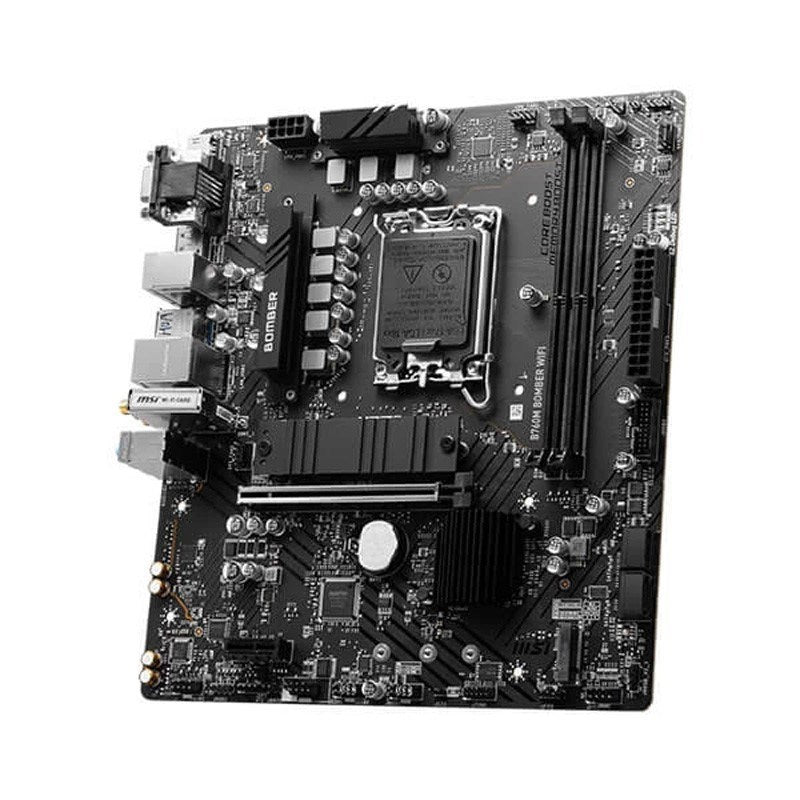

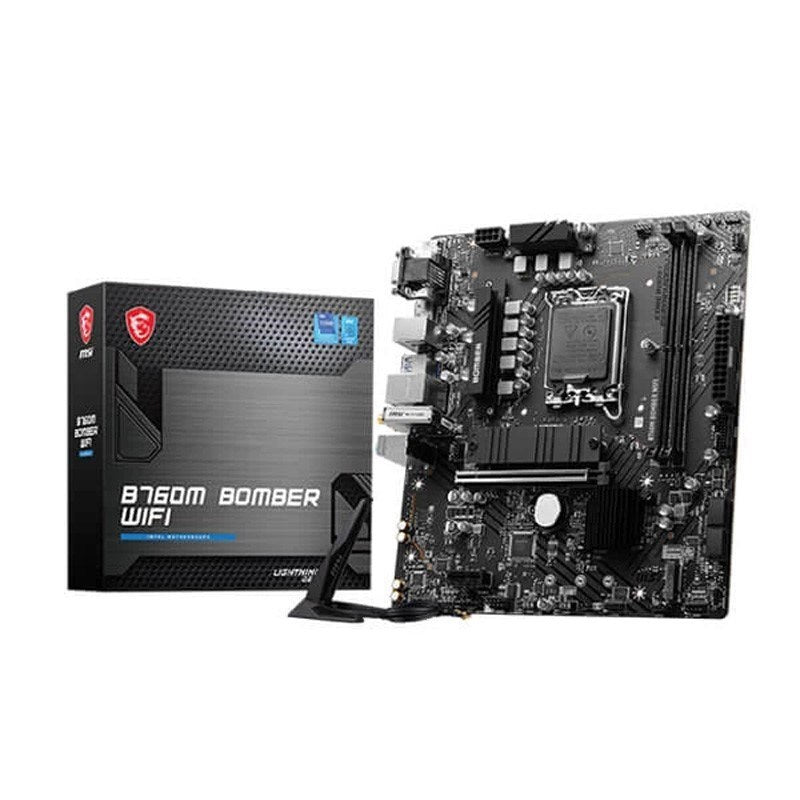

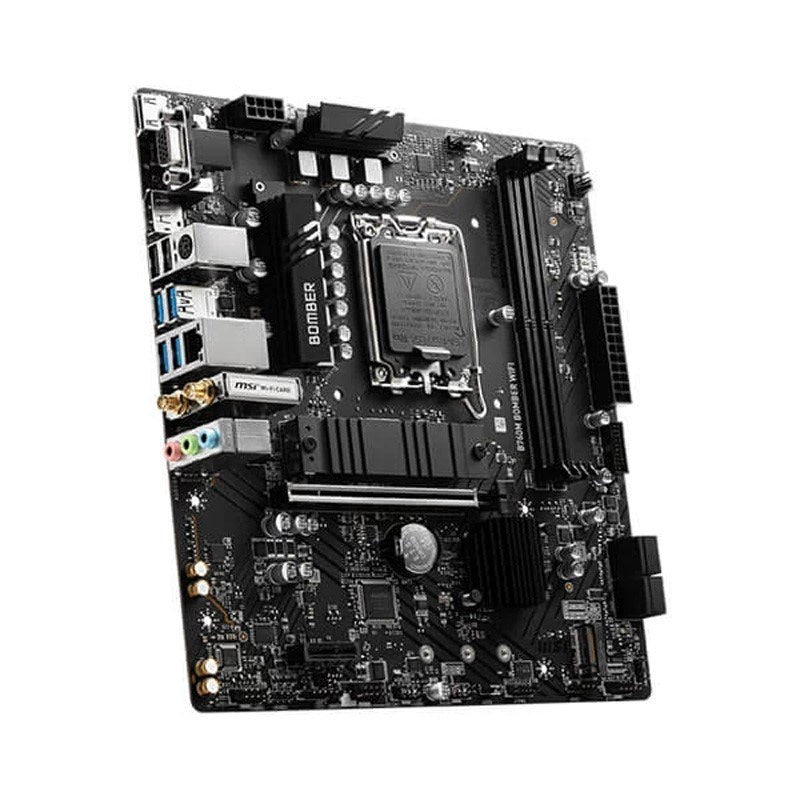

MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard - Black

MSI

MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard - Black

Name: MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard - Black
Brand: MSI
SKU: 911-7D90-047
Price: 45.0 KWD
Availability: OutOfStock

كود المنتج: 911-7D90-047

السعر قبل :

45.000 KD

كمية

مخزون منخفض

0 عنصر في المخزون

في المخزن

إنتهى من المخزن

مرة أخرى في المخزون

الخصائص
وصف
معلومات الشحن

Supports 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

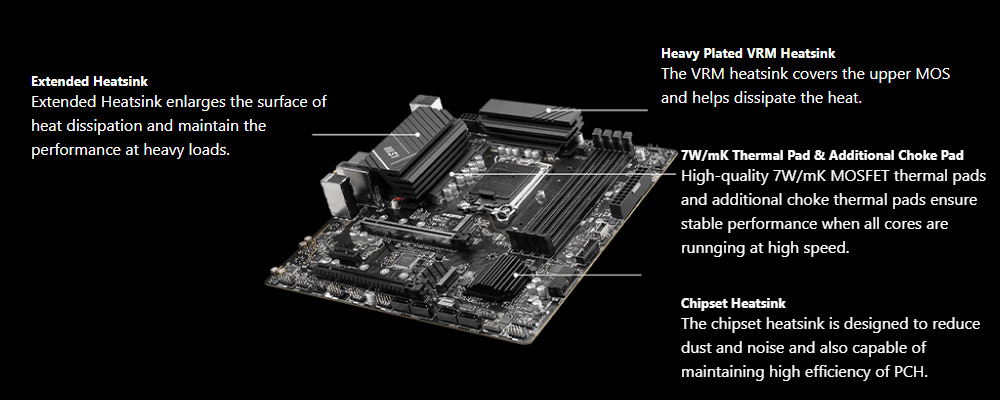

Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience

6-layer PCB made by 2oz thickened copper

PCIe 4.0 slot, Lightning Gen 4 x4 M.2

Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard

The MSI MSI B760M BOMBER Wi-Fi DDR5 MATX MOTHERBOARD is a high-performance motherboard designed for gaming and other demanding applications. It features the Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors, making it compatible with a wide range of CPUs. The motherboard has an mATX form factor, measuring 243.84mmx304.8mm, making it suitable for smaller PC builds.

One of the notable features of this motherboard is its support for DDR5 memory. It has four DDR5 memory slots with a maximum capacity of 192 GB. The memory supports overclocking with speeds up to 7000+ MHz (OC), delivering excellent performance for memory-intensive tasks.

In terms of network connectivity, the motherboard is equipped with Intel Wi-Fi 6E, offering fast and reliable wireless connectivity. It also has a Realtek 2.5Gbps LAN port for high-speed wired internet connections.

The MSI MAG B760M MORTAR Wi-Fi motherboard offers multiple connectivity options with a range of USB ports. It includes USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type A and Type C ports, allowing for easy connection of various devices.

The motherboard supports high-quality audio with the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio and S/PDIF output. It also features HDMI 2.1 and DisplayPort 1.4, enabling support for 4K and 8K resolutions, respectively.

With regards to expansion slots, the motherboard has two PCI-E x16 slots, supporting x16/x4 configurations, and one PCI-E x1 slot. It also includes several internal I/O ports for connecting various components.

Overall, the MSI MAG B760M MORTAR Wi-Fi DDR5 MATX Motherboard is a feature-rich motherboard that combines excellent performance, versatile connectivity options, and efficient memory support, making it a suitable choice for gaming enthusiasts and professionals seeking a reliable and powerful foundation for their PC builds.

Specifications:

Model	B760M BOMBER Wi-Fi
Chipset	INTEL B760
CPU Support	Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5600+ MHz
Onboard Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Expansion Slot	1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage	2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A
LAN	Realtek RTL8125B 2.5Gbps LAN
Wireless / Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A
LED Feature	4x EZ Debug LED

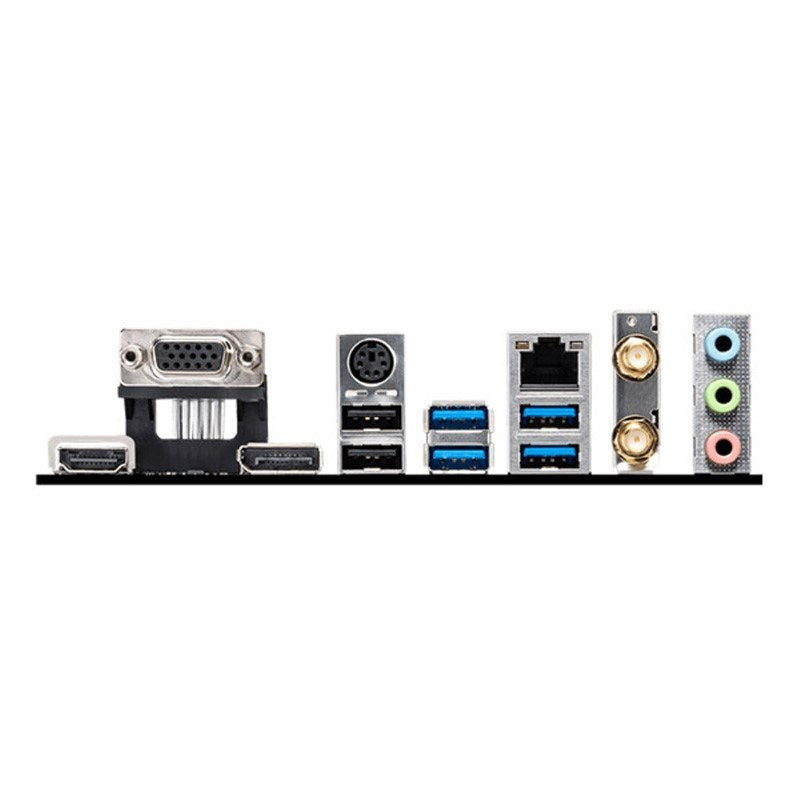

Back Panel Ports	HDMI VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A)
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	mATX 220mmx243.84mm

خدمات التوصيل المتاحة في الكويت:

١. التوصيل خلال ٢٩ دقيقة - 5 دينار كويتي

٢. ألترا إكسبريس (توصيل خلال ساعة واحدة) - ٤.٥ دينار كويتي

٣. سوبر إكسبريس (توصيل خلال ساعتين) - ٢.٥ دينار كويتي

٤. التوصيل السريع (توصيل خلال ٤ ساعات) - 2 دينار كويتي

٥. التوصيل في نفس اليوم (توصيل خلال ٢٤ ساعة) - ١.٥ دينار كويتي

٦. التوصيل في اليوم التالي - 1 دينار كويتي

٧. التوصيل خلال يومي عمل - 1 دينار كويتي

ملاحظة: خدمة التوصيل السريع متاحة في مناطق محددة ووقت محدد. خيار التوصيل المتاح سيكون واضحًا عند إتمام عملية الشراء.

تسجيل الدخول

ديكور الألعاب

MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard - Black

شارك هذا المنتج

MSI B760M BOMBER Wi-Fi DDR5 Micro-ATX Gaming Motherboard

One of the notable features of this motherboard is its support for DDR5 memory. It has four DDR5 memory slots with a maximum capacity of 192 GB. The memory supports overclocking with speeds up to 7000+ MHz (OC), delivering excellent performance for memory-intensive tasks.

In terms of network connectivity, the motherboard is equipped with Intel Wi-Fi 6E, offering fast and reliable wireless connectivity. It also has a Realtek 2.5Gbps LAN port for high-speed wired internet connections.

The MSI MAG B760M MORTAR Wi-Fi motherboard offers multiple connectivity options with a range of USB ports. It includes USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type A and Type C ports, allowing for easy connection of various devices.

The motherboard supports high-quality audio with the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio and S/PDIF output. It also features HDMI 2.1 and DisplayPort 1.4, enabling support for 4K and 8K resolutions, respectively.

With regards to expansion slots, the motherboard has two PCI-E x16 slots, supporting x16/x4 configurations, and one PCI-E x1 slot. It also includes several internal I/O ports for connecting various components.

Specifications:

Model

B760M BOMBER Wi-Fi

Chipset

INTEL B760

CPU Support

Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700

Memory

2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5600+ MHz

Onboard Graphics

1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Expansion Slot

1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

Storage

2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty)

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A

LAN

Realtek RTL8125B 2.5Gbps LAN

Wireless / Bluetooth

2x DDR5, Maximum Memory Capacity 96GB Memory
DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5600+ MHz

1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

2x M.2 (Qty)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)

2x USB 2.0
4x USB 2.0
4x USB 3.2 Gen1 Type A
2x USB 3.2 Gen1 Type A
