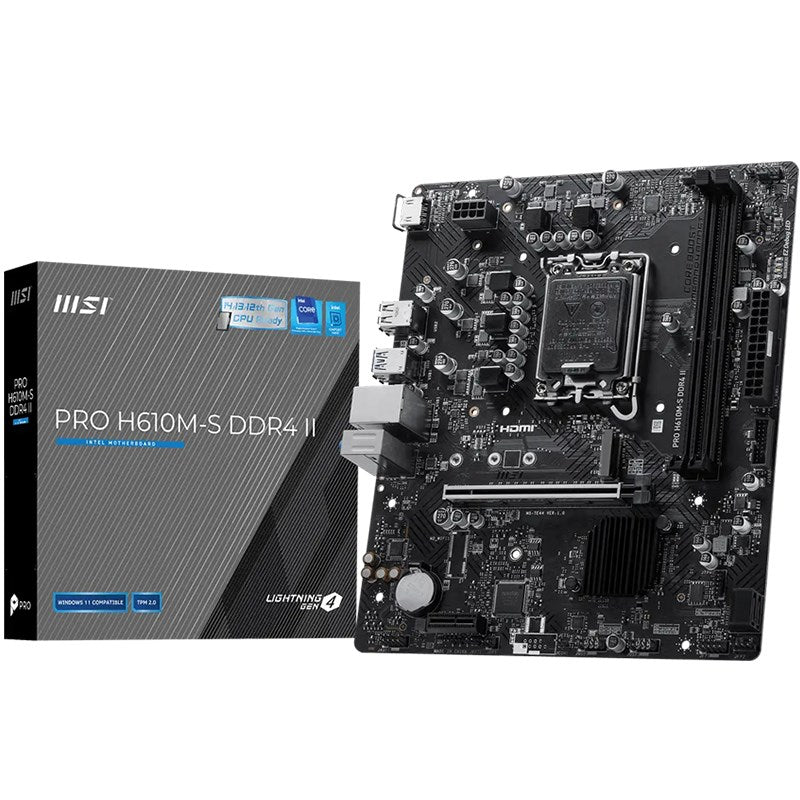

MSI PRO H610M-S DDR4 II Gaming Motherboard - Black

MSI PRO H610M-S DDR4 II Gaming Motherboard

PRO H610M-S DDR4 II offers a simple design with a harmonious Silver color scheme that perfectly matches both White and Black PC builds. It is engineered with 1G LAN and PCIe 4.0, ready for the Intel Core 14th /13th /12th Gen processors.

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

Key Features

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use

• Audio Boost: Reward your ears with studio grade sound quality

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Chipset

INTEL H610

CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

Memory

2x DDR4, Maximum Memory Capacity 64 GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI

Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz

Slot

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Storage

1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

mATX

200mmx236.16mm
