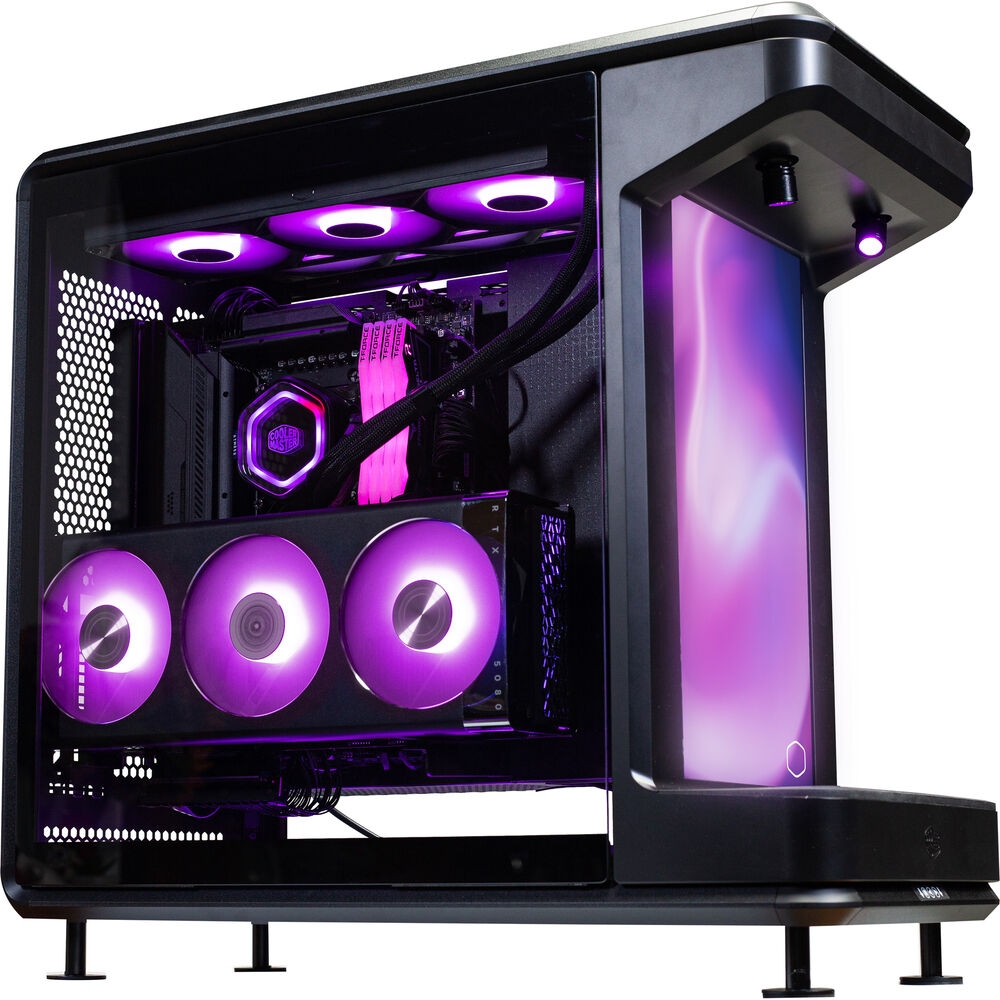

Ryzen 9 Gaming PC, Ryzen 9 9950X, RTX 5090 32GB, Windows 11 PRO

Cooler Master MasterFrame 360 Stage With 15.6" LCD Screen ATX Case

Massive Cooling Compatibility

Supports fan sizes ranging from 120mm to 200mm, with space for up to twelve 120mm fans—six on the top and six on the bottom. It also supports radiators up to 360mm, meeting the cooling demands of high-end custom liquid cooling setups.

Wide Component Compatibility

Accommodates up to 430mm GPUs and 210mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.

Features 110mm of cable routing clearance for a clean and clutter-free showcase.

LCD

By using a 15.6"LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.

PCIe 5.0 Riser Cable Included

Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Key Features

• Powerful Cooling Support – Supports up to twelve 120mm fans and radiators up to 360mm.

• High-End Component Support – Fits GPUs up to 430mm and PSUs up to 210mm.

• Wide Motherboard Compatibility – Supports Mini-ITX, Micro-ATX, ATX, and compatible BTF layouts.

• Clean Cable Management – 110mm of routing space keeps the build neat and organised.

• Built-In 15.6" LCD – Displays animations and photos for a personalised showcase.

• Vertical GPU Mounting – Includes a PCIe 5.0 riser cable for high-speed vertical GPU installation.

Specification - LCD

Series MASTERFRAME Series

Color Black

Model Number MF360-KHNN-S02

Materials - Exterior SGCC

Materials - Side Panel (Left / Right) TG / TG

Dimensions

Dimension (L x W x H) - Incl. Protrusions 549 x 291 x 581 mm

Dimension (L x W x H) - Excl. Protrusions 511 x 291 x 581 mm

Dimension (L x W x H) - Volume (w/o panel, protrusions and feet) 86 L

Dimension (L x W x H) - Volume (with panel, protrusions and feet) 93 L

Hardware & Drive Bay

Hardware support - Motherboard Support Mini-ITX, Micro-ATX, ATX, BTF (ATX)

Hardware support - Power Supply Support ATX

Hardware support - PCI Expansion Slots 3.5

Drive Bay Support - 3.5" Drive Bays - 0

Drive Bay Support - 3.5" / 2.5" Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2

Preinstalled Drive Bay - 3.5" / 2.5" Drive Bay (or SSD) HDD (44.45 mm) *1 or SSD *2

I/O

I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G; 1x USB 4.0 Gen 2x2 Type-C 20G

I/O Panel - Audio In / Out 1x 3.5 mm Headset Jack (Audio + Mic)

Fans

Fans Support - Top 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm

Fans Support - Bottom 6x 120 mm, 2x 140 mm, 2x 180 mm, 2x 200 mm

Radiator

Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Others

Dust Filters - Removable Filters Mesh Only

Other Electronic Components PCIe 5.0 Riser / ARGB spotlight *2 / 15.6-inch Screen 1920×1080p FHD (16G Built-in), Win11 supported

Maximum Dimensions for Front Collectibles Display (H x W x D) 328 x 290 x 110 mm

DIY Tank & Pump Support Yes (Left side)

Toolbox - Yes

Clearances - CPU Cooler 145mm

Clearances - Power Supply 210mm

Clearances - Graphics Card 430mm

Cable Routing - Behind MB Tray 110mm
