تي بي لينك, راوتر تي بي لينك آرتشر ايه اكس اي 75 ثلاثي الموجات واي فاي 6 اي

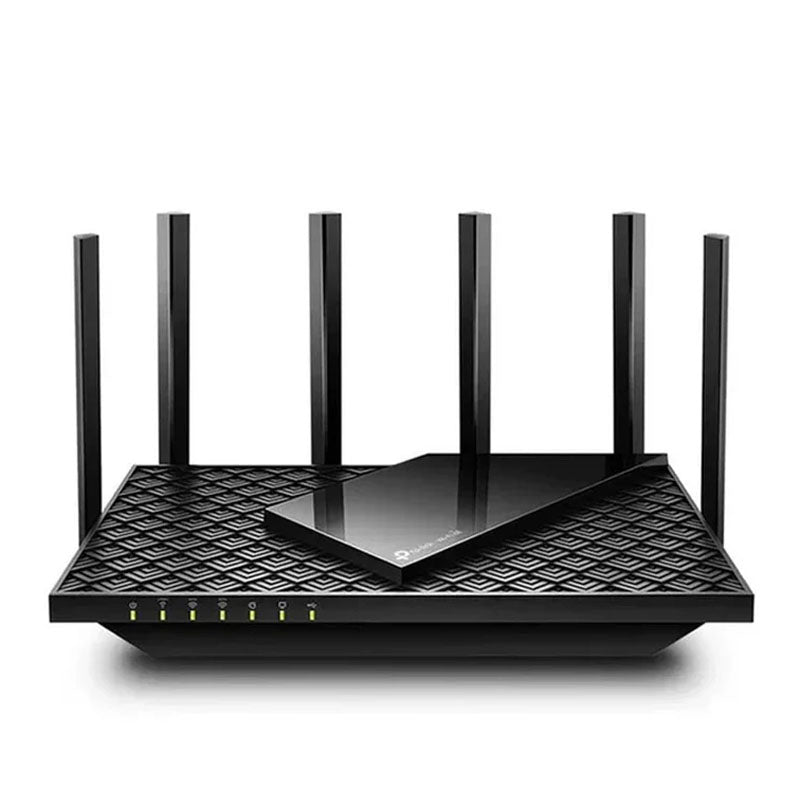

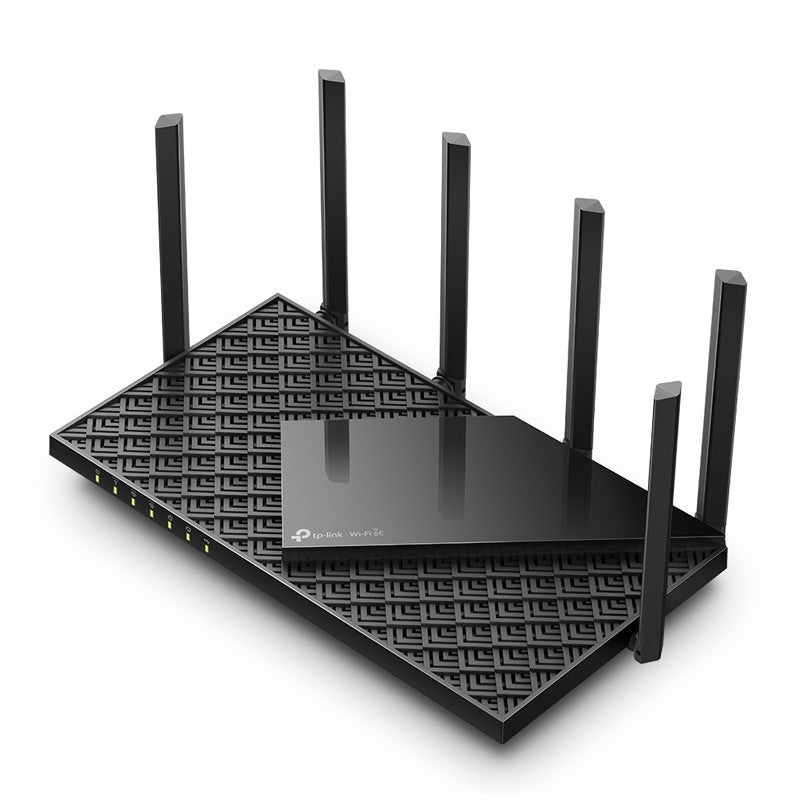

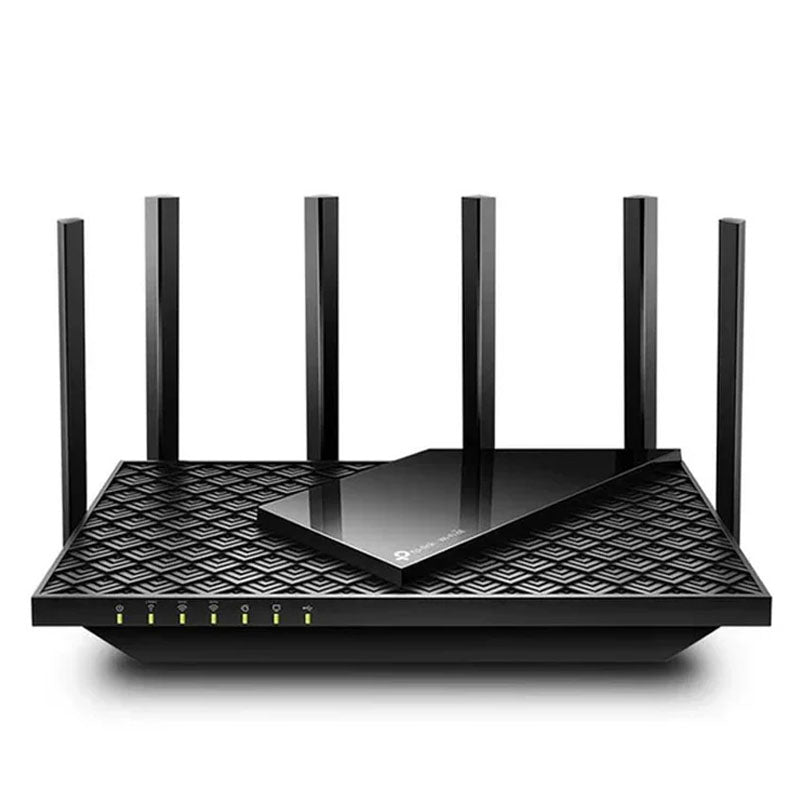

TP-LINK Archer AXE75 AXE5400 Tri-Band Wi-Fi 6E Router

AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.

Armed with a 1.7 GHz Quad-Core CPU.

Up to 10× faster transfer speeds than USB 2.0.

The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.

Customize your home network with enhanced security and control

Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

Enables more responsive gaming and video chatting.

Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Standards

IEEE 802.11ax 6 GHz,

IEEE 802.11ax/ac/n/a 5 GHz,

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AXE5400

6 GHz: 2402 Mbps (802.11ax)

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

2-3 Bedroom Houses

6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity

Very High

Tri-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

6 Streams

Connect your devices to more bandwidth

Working Modes

Router Mode

Access Point Mode

Processor

1.7 GHz Quad-Core CPU

Ethernet Ports

1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support

1× USB 3.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons

Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power

12 V ⎓ 2.5 A

WiFi Reception Sensitivity

2.4 GHz:

11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm

5 GHz:

11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm

11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm

11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm

11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm

6 GHz:

11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm

11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm

11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm

11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
