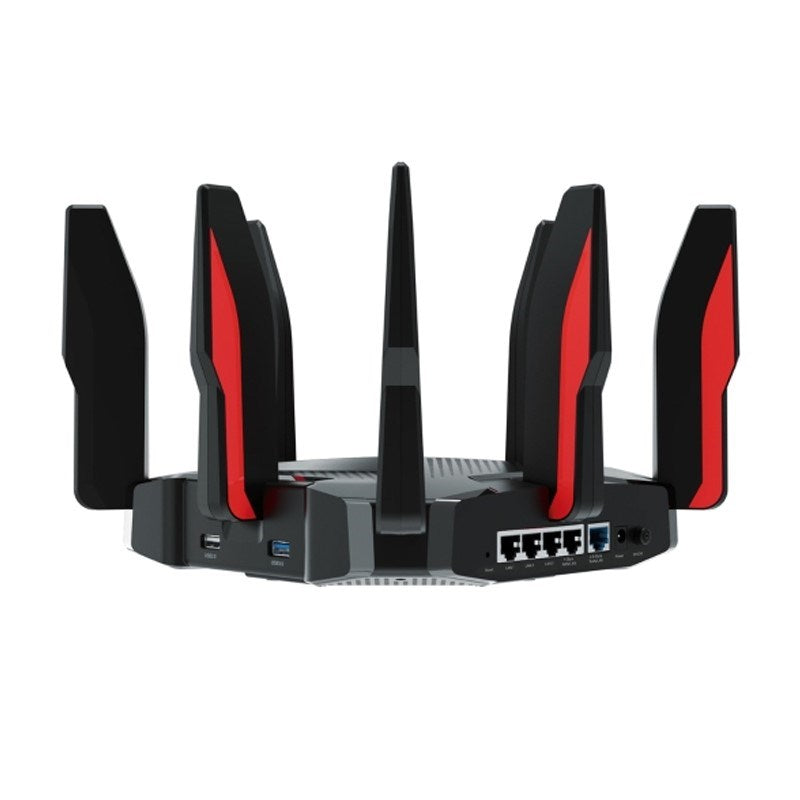

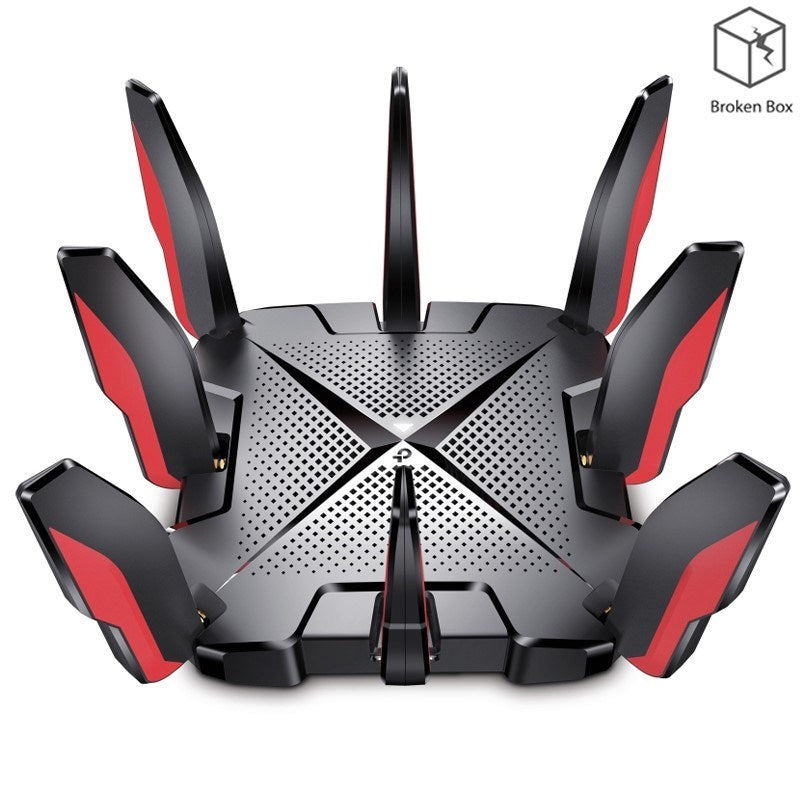

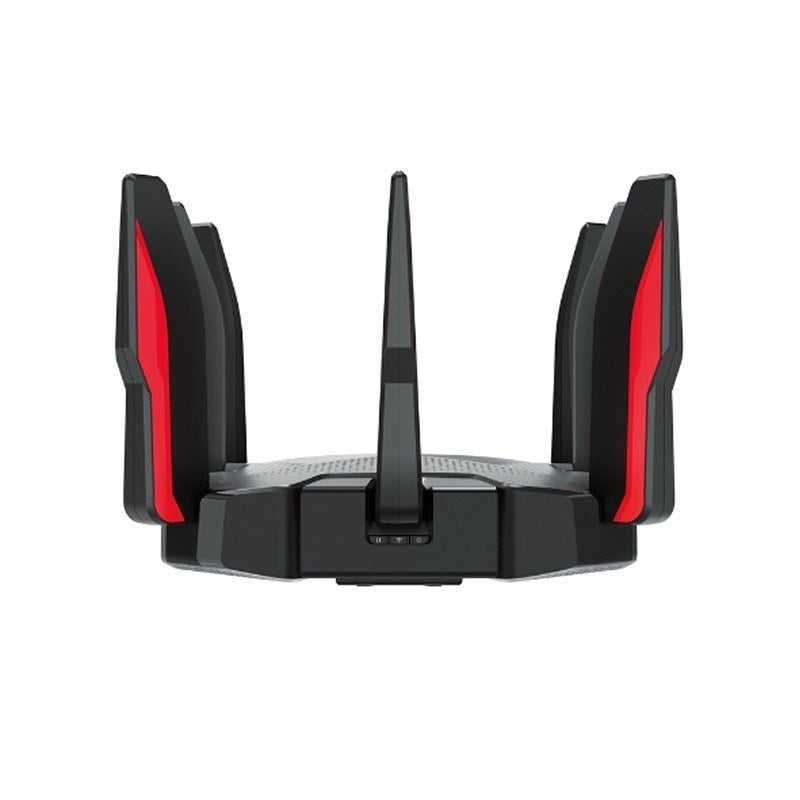

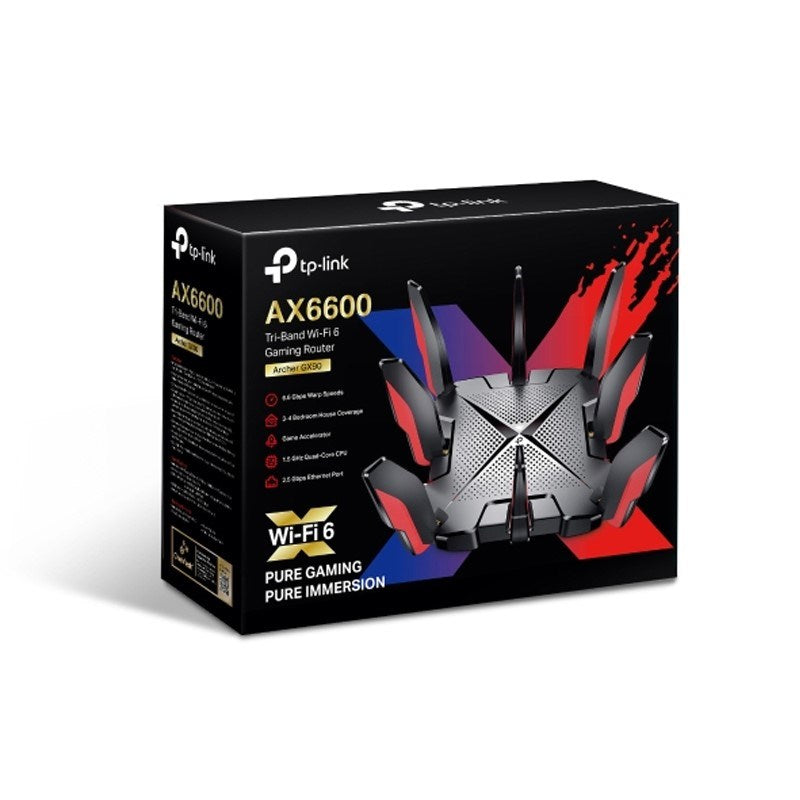

TP-LINK Archer GX90 AX6600 Wi-Fi 6 Tri-Band Gaming Router - Open Box

Fuels your Winning

Archer GX90 provides 3 distinct bands with combined speed up to warp 6579 Mbps. A fully featured Gaming Band is equipped with 4T4R and HE160 technology, offering all your gaming rigs at top speed 4804 Mbps and preventing interference from other devices.

Defeat Latency

More connected devices mean more fun, without dragging down performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

Game on the Fast Lane

A dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor. DFS expands available channel automatically, get on the more vacant lane and boost the game.

Standards

Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds

AX6600

5 GHz: 4804 Mbps (802.11ax, HE160)

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range

4 Bedroom Houses

8× Detachable High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

Wi-Fi Capacity

Very High

Tri-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

8 Streams

Connect your devices to more bandwidth

Working Modes

Router Mode

Access Point Mode

Processor

1.5 GHz Quad-Core CPU

Ethernet Ports

1× 2.5 Gbps WAN/LAN Port

1× Gigabit WAN/LAN Port

3× Gigabit LAN Ports

USB Support

1× USB 3.0 Port

1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons

Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power

12 V ⎓ 5 A

WiFi Encryption

WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeCare Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network

2× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server

OpenVPN

PPTP

Protocols

IPv4

IPv6

Game Center

Game Accelerator

Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics

Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector

Keep your accounts and system safe with HomeCare antivirus protection

Service Kits

HomeCare

Parental Controls

HomeCare Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

Game Accelerator QoS.

QoS by Device

HomeCare QoS

QoS by Application

Cloud Service

Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

NO-IP

DynDNS

Management

Tether App

Webpage
