Wi-Fi That Goes the Distance

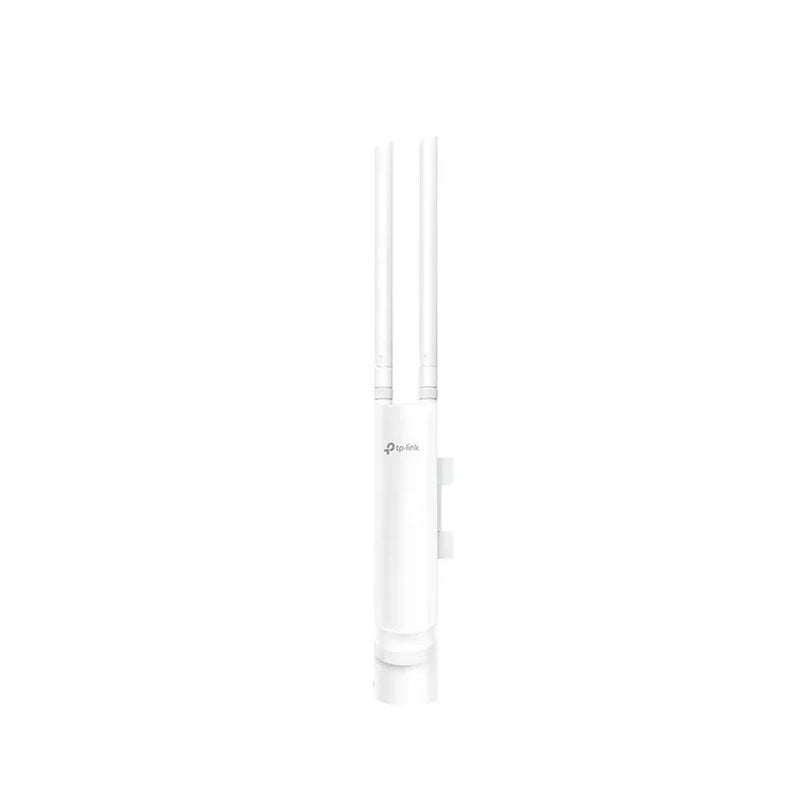

With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings.

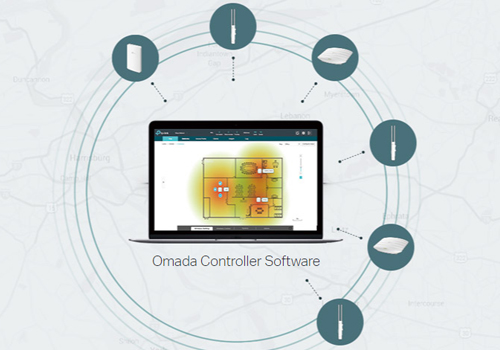

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location.  It’s network management as it should be - efficient and intuitive.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Interface

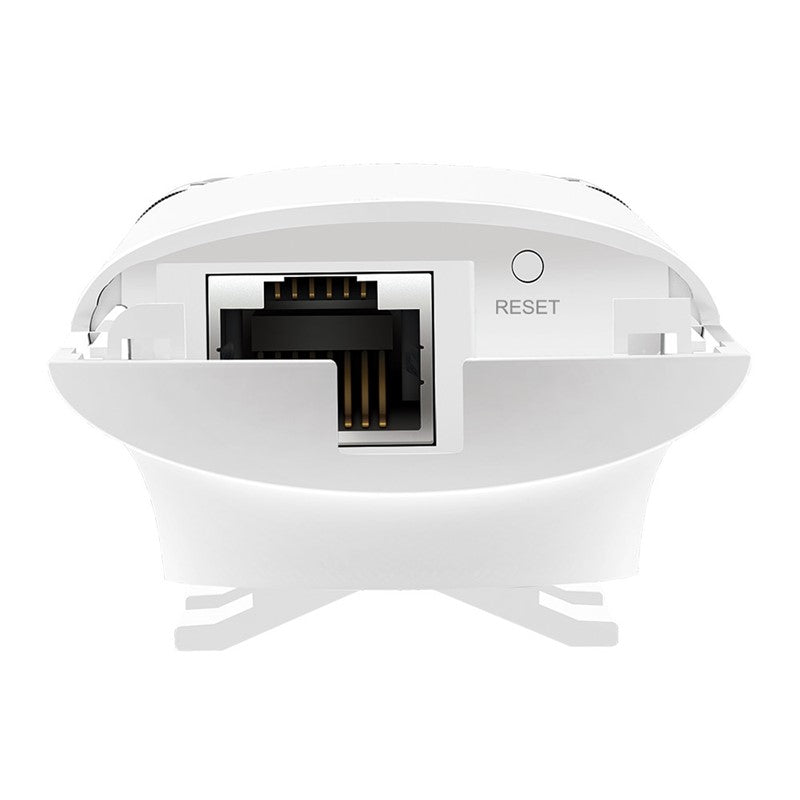

1 × Fast Ethernet (RJ-45) Port

(Support Passive PoE)

Button

Reset

Power Supply

24V Passive PoE

(+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption

3.1 W

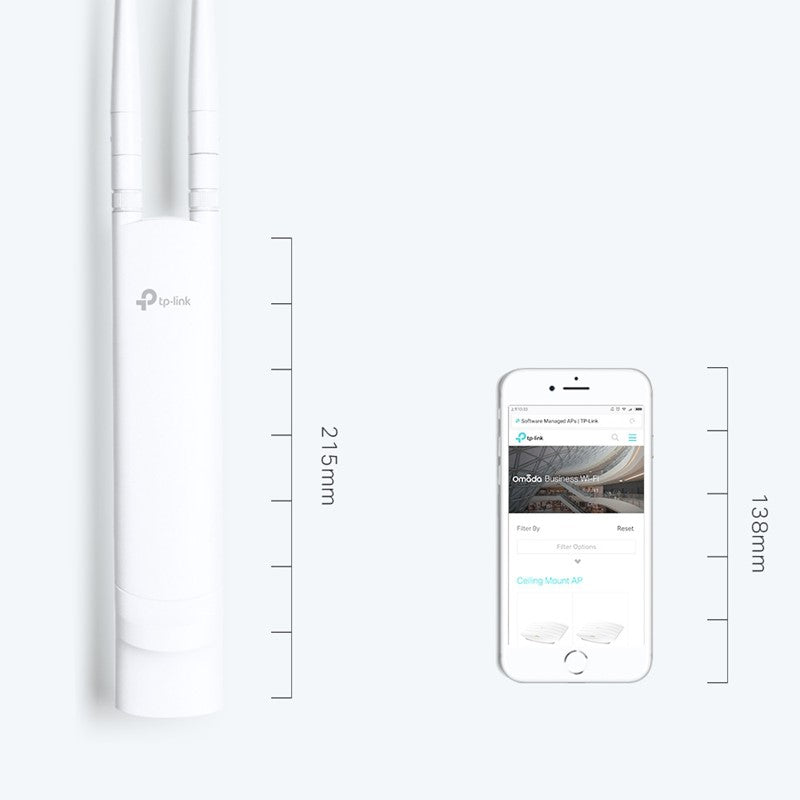

Dimensions ( W x D x H )

8.2 × 3.7 × 1.7 in.

(209 × 95 × 42.6 mm)

Antenna Type

2 × 3dBi External Omni waterproof

Weatherproof Enclosure

IP65

Mounting

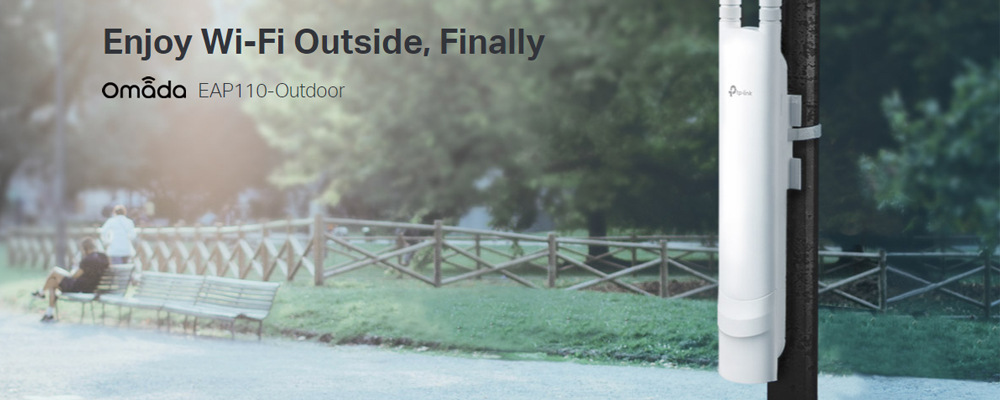

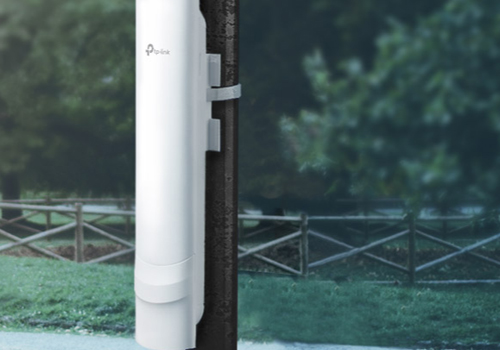

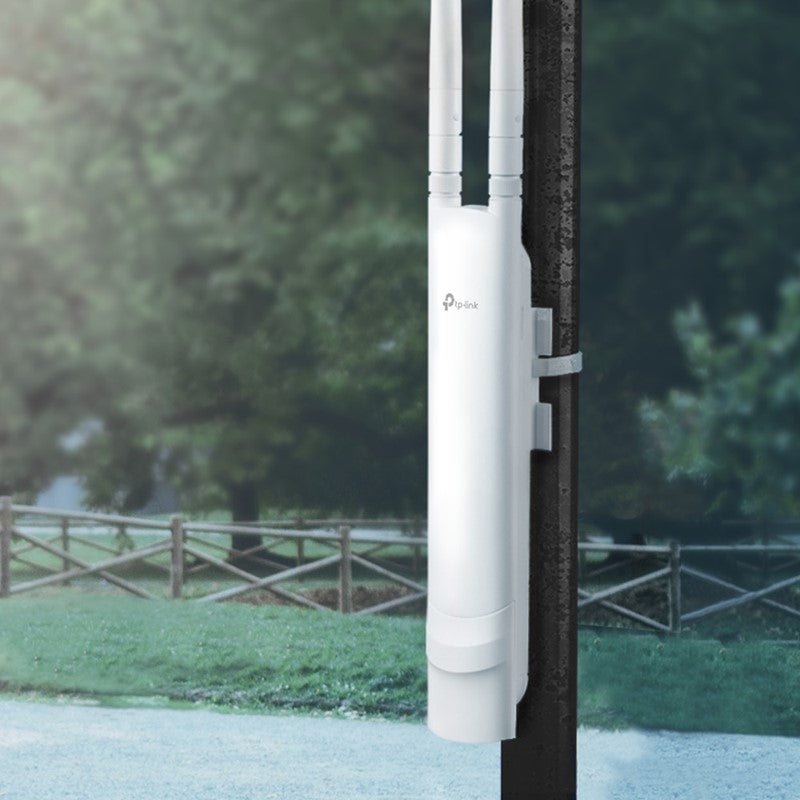

Pole or wall mounting (mounting kit included)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11n/g/b

Frequency

2.4GHz

Signal Rate

11n: Up to 300Mbps

11g: Up to 54Mbps

11b: Up to 11Mbps

Transmit Power

< 27dBm

Wireless Functions

Multiple SSIDs (Up to 8 SSIDs)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (adjustable on 1 dBm step)

QoS (WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID, AP, and Client

Wireless Security

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

MANAGEMENT

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Local and Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes
