تي بي لينك, موسع نطاق الانترنت ايه سي 1350

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management - Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways

Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications:

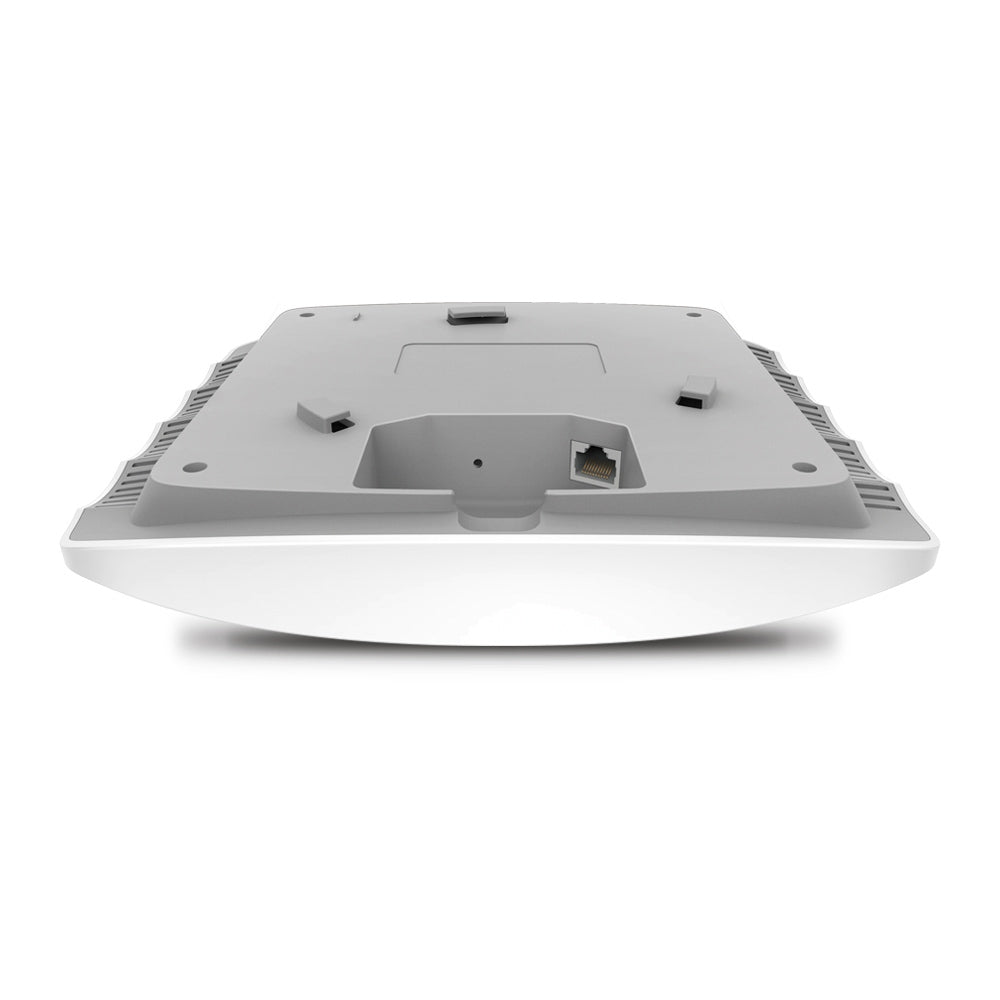

Interface

Gigabit Ethernet (RJ-45) Port x 1

(Support IEEE802.3af or passive PoE)

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/at PoE PoE or passive PoE

Power Consumption

12.6W

Dimensions

8.1 × 7.1 × 1.5 in

(206 × 182 × 37 mm)

Antenna Type

Internal omni directional

2.4GHz: 4dBi x 3

5GHz: 5dBi x 2

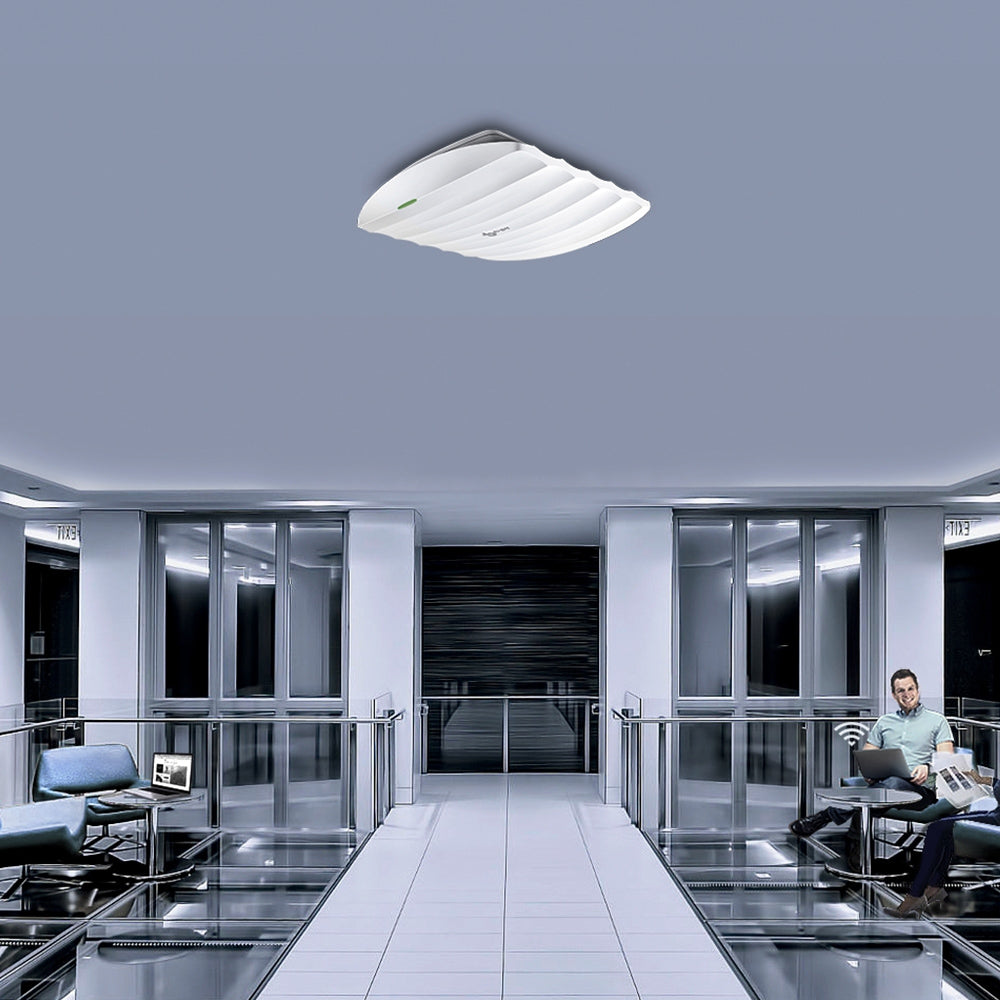

Mounting

Ceiling mount or wall mount (mounting kit included)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/g/b/a

Frequency

2.4GHz and 5GHz

Signal Rate

5GHz:Up to 867Mbps

2.4GHz:Up to 450Mbps

Wireless Functions

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Seamless Roaming

Band Steering

Load Balance

MU-MIMO*

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

Transmission Power

≤24dBm(2.4GHz)

≤22dBm(5GHz)
