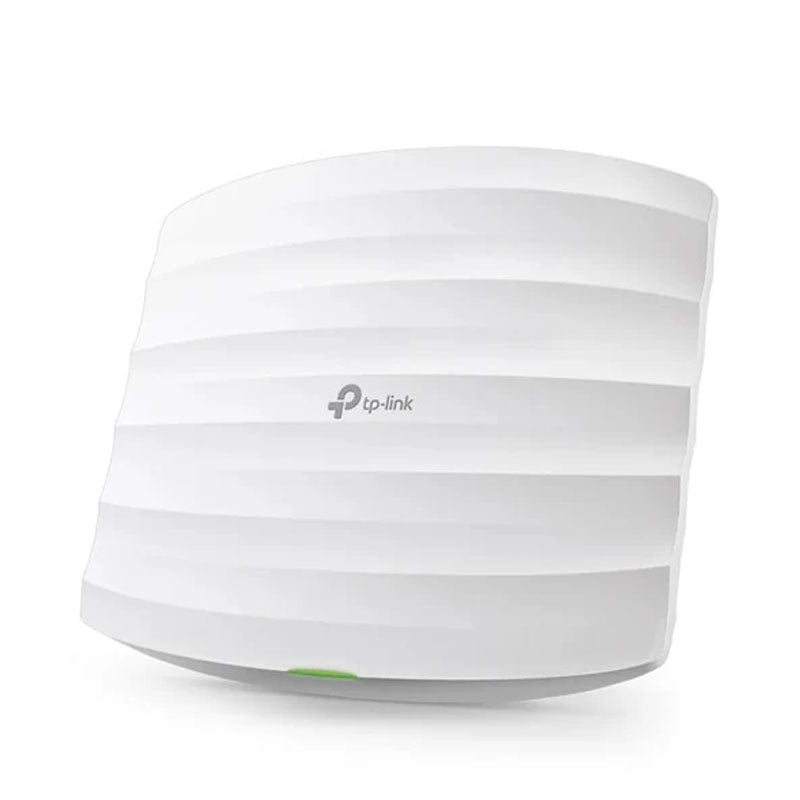

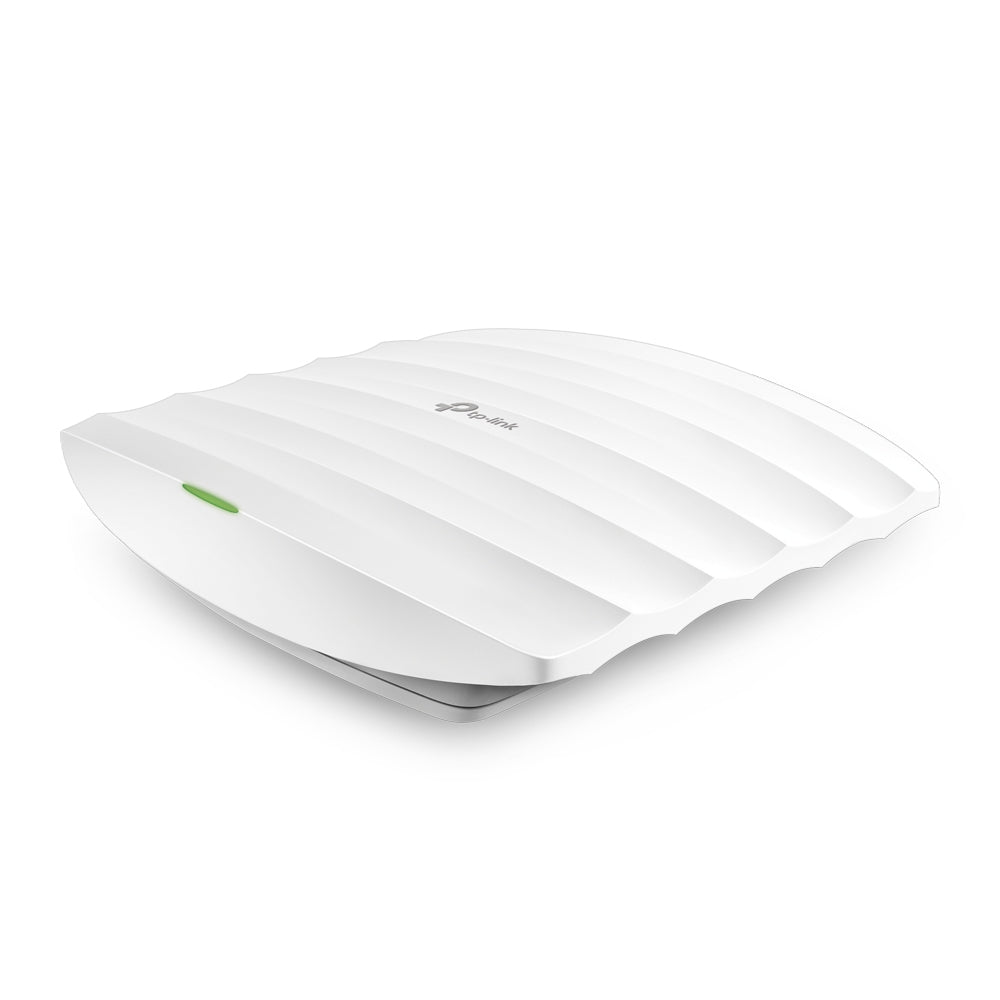

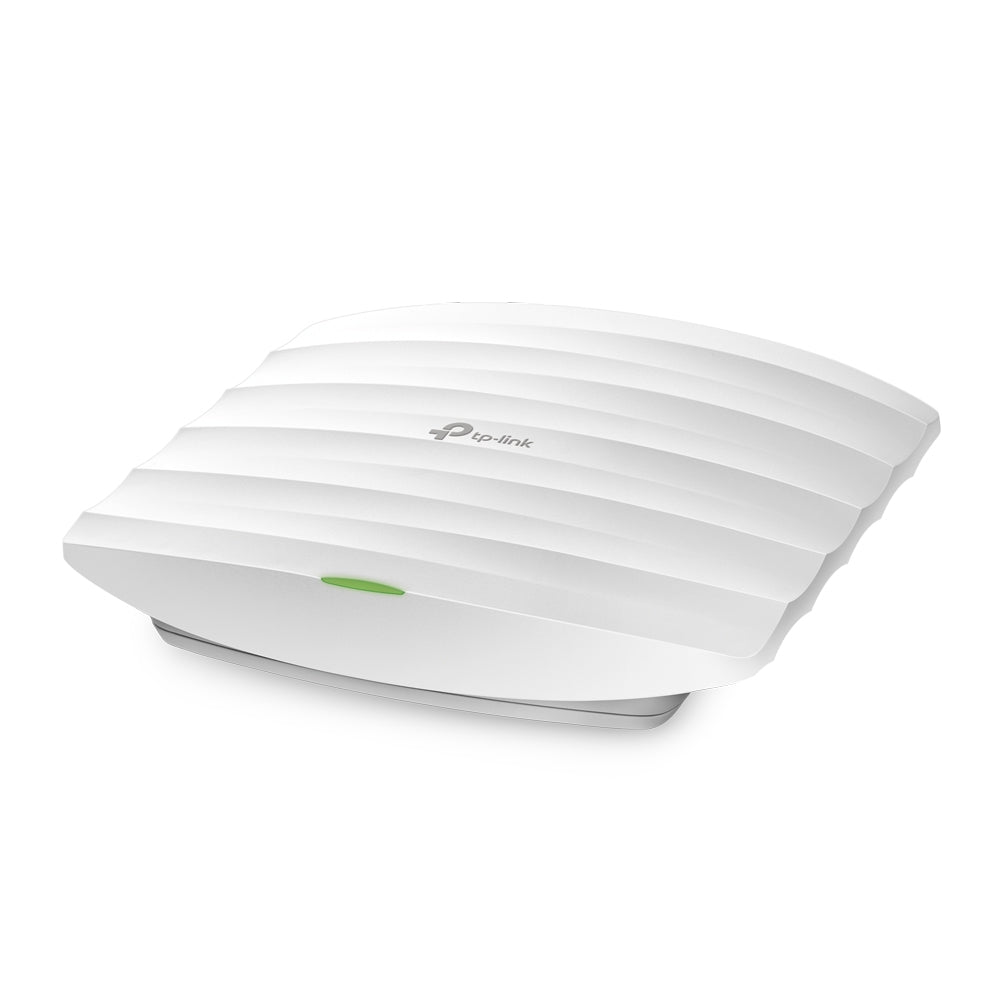

- TP-Link N300 Wireless N Ceiling Mount Access Point
- الخصائص
- وصف
- معلومات الشحن
- Free cloud centralized management and Omada app for ultra-convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
An Affordable, Scalable Business Wi-Fi Solution - 300Mbps Wireless N Ceiling Mount Access Point
Free Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal - Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

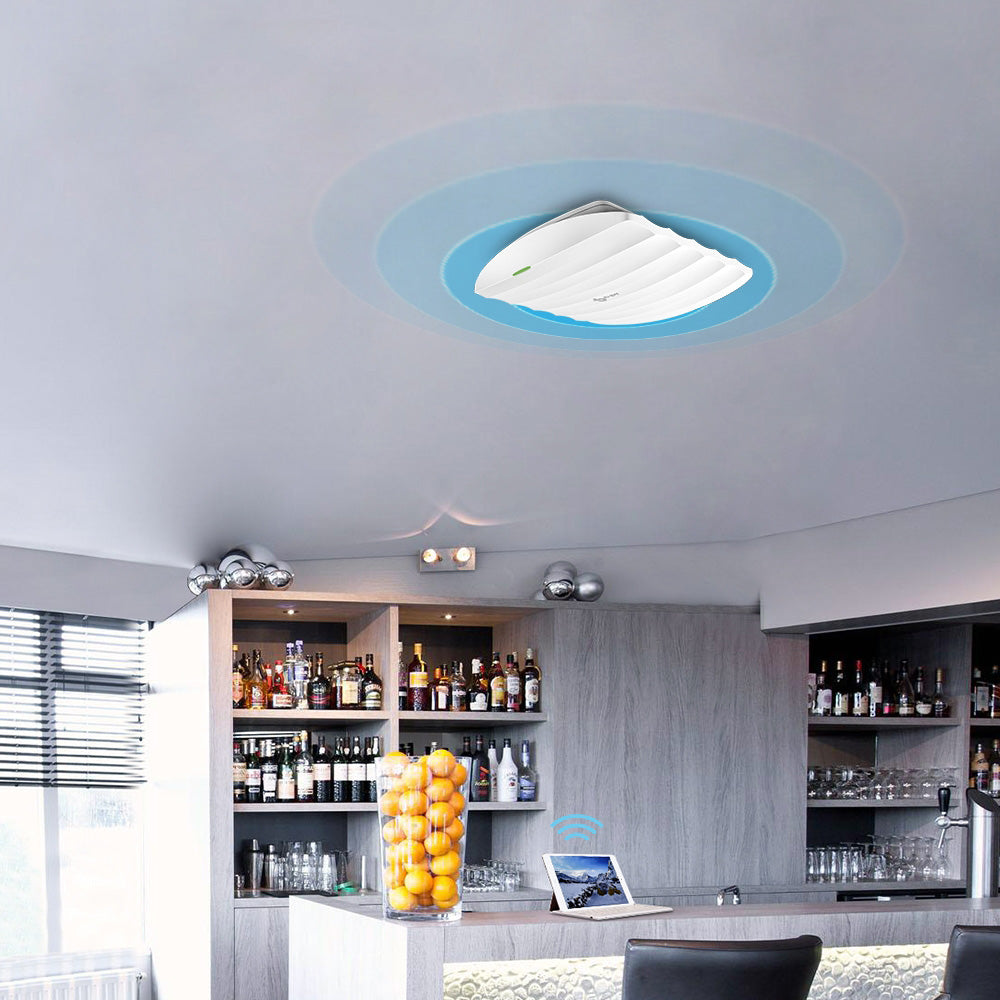

Easy Mount Design and PoE - Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
|
Specifications: |
|
|
Interface |
Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE） |
|
Button |
Reset |
|
Power Supply |
PoE or external 9VDC/0.6A power supply |
|
Power Consumption |
2.8W |
|
Dimensions |
7.5×6.8×1.2 in. (189.4×172.3×29.5mm) |
|
Antenna Type |
Internal 2* 4dBi Omni |
|
Mounting |
Ceiling /Wall Mounting (Kits included) |
|
WIRELESS FEATURES |
|
|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|
Frequency |
2.4-2.4835GHz |
|
Signal Rate |
11n: Up to 300Mbps(dynamic) |
|
|
11g: Up to 54Mbps(dynamic) |
|
|
11b: Up to 11Mbps(dynamic) |
|
Reception Sensitivity |
300M: -71dBm@10% PER |
|
|
150M: -75dBm@10% PER |
|
|
54M: -78dBm@10% PER |
|
|
11M: -93dBm@8% PER |
|
|
6M: -92dBm@10% PER |
|
|
1M: -96dBm@8% PER |
|
Wireless Functions |
Multiple SSIDs （Up to 8 SSIDs） |
|
|
Enable/Disable Wireless Radio |
|
|
Automatic Channel Assignment |
|
|
Transmit Power Control （Adjust Transmit Power on dBm） |
|
|
QoS(WMM) |
|
|
Rate Limit |
|
|
Reboot Schedule |
|
|
Wireless Schedule |
|
|
Wireless Statistics based on SSID/AP/Client |
|
Wireless Security |
Captive Portal Authentication |
|
|
Access Control |
|
|
Wireless Mac Address Filtering |
|
|
Wireless Isolation Between Clients |
|
|
SSID to VLAN Mapping |
|
|
Rogue AP Detection |
|
|
802.1X Support |
|
|
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
|
Transmission Power |
CE: ≤19dBm |
|
|
FCC: ≤26dBm |
|
MANAGEMENT |
|
|
Omada Controller Software |
Yes |
|
Email Alerts |
Yes |
|
LED ON/OFF Control |
Yes |
|
Management MAC Access Control |
Yes |
|
SNMP |
v1,v2c |
|
System Logging Local/Remote Syslog |
Local/Remote Syslog |
|
Telnet |
Yes |
|
Web-based Management |
HTTP/HTTPS |
|
Management VLAN |
Yes |
|
Package Contents |

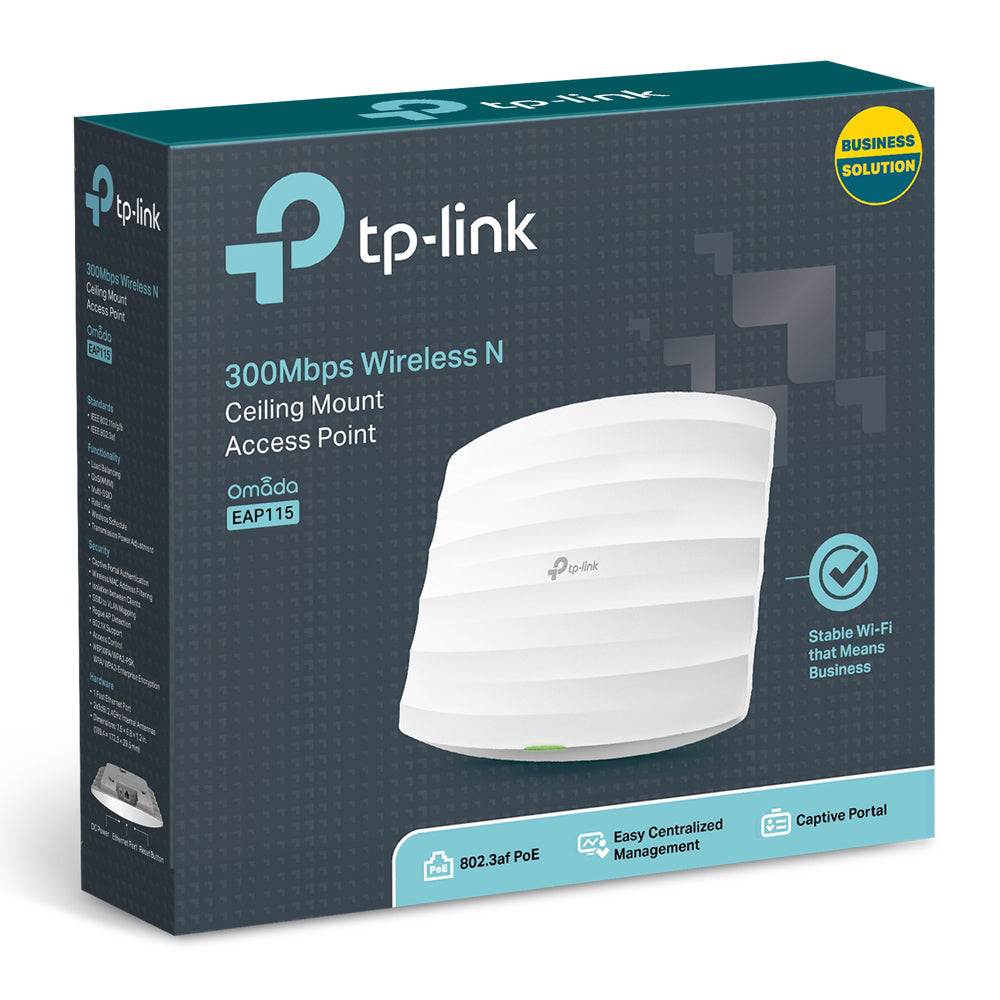

300Mbps Wireless N Ceiling Mount Access Point EAP115 |
|
|
Power Adapter |
|
|
Mounting Kits, |
|
|
Installation Guide |
|
System Requirements |
Microsoft Windows 10/8/7/Vista/XP |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
|
|
Storage Temperature: -40℃~70℃ (-40℉~158℉) |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 5%~90% non-condensing |
