- TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-P
% -32.500 KD






TP-LINK

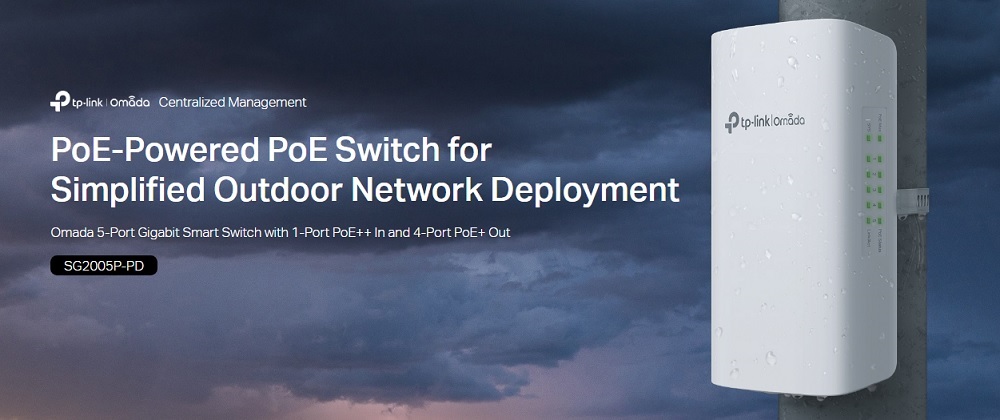

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
كود المنتج:
SG2005P-PD
32.500 KD
0.000 KD
0%
- الخصائص
- وصف
- معلومات الشحن
Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds
1-Port Gigabit PoE++ In and 4-Port PoE+ Out
IP55 waterproof, dustproof, and UV-resistant enclosure.
Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions
Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs
Integrates into Omada SDN for cloud access, remote management, and multi-site management
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out |
|
Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit SpeedsEliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access pointsSpecially Designed Weatherproof Enclosure for OutdoorsRated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.Easy Installation to Flexibly Fit Your NeedsEasy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction BoxAccess Control List (ACL)ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you needSoftware Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. |
Specification
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at,IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d,IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
Interface |
• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
|
Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
|
Fan Quantity |
Fanless |
Power Supply |
Obtain Power from 802.3af/at/bt PoE Source |
PoE Ports (RJ45) |
• PoE In Port: Port 5, Compliance with 802.3af/at/bt
|
Dimensions ( W x D x H ) |
3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
Max Power Consumption |
71.5 W (when powered by 802.3bt Type 4 (90 W)) |
Max Heat Dissipation |
243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
Performance |
|
Switching Capacity |
10 Gbps |
Packet Forwarding Rate |
7.44 Mpps |
MAC Address Table |
8k |
Packet Buffer Memory |
4.1 Mbit |
Jumbo Frame |
9 KB |
Software Features |
|
Quality of Service |
• 802.1p CoS/DSCP priority
|
L2 and L2+ Features |
• 16 IP Interfaces
|
L2 Multicast |
• 511 IPv4, IPv6 shared multicast groups
|
Advanced Features |
• Automatic Device Discovery
|
IPv6 Support |
• IPv6 Dual IPv4/IPv6
|
VLAN |
• VLAN Group
|
Access Control List |
• Support up to 230 entries
|
Security |
• AAA
|
MIBs |
• MIB II (RFC1213)
|
Management |
|
Omada App |
Yes, through
|
Centralized Management |
• Omada Cloud-Based Controller
|
Cloud Access |
Yes, through
|
Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
Management Features |
• Web-based GUI
|
